Neutrik

This is a Special Order Item

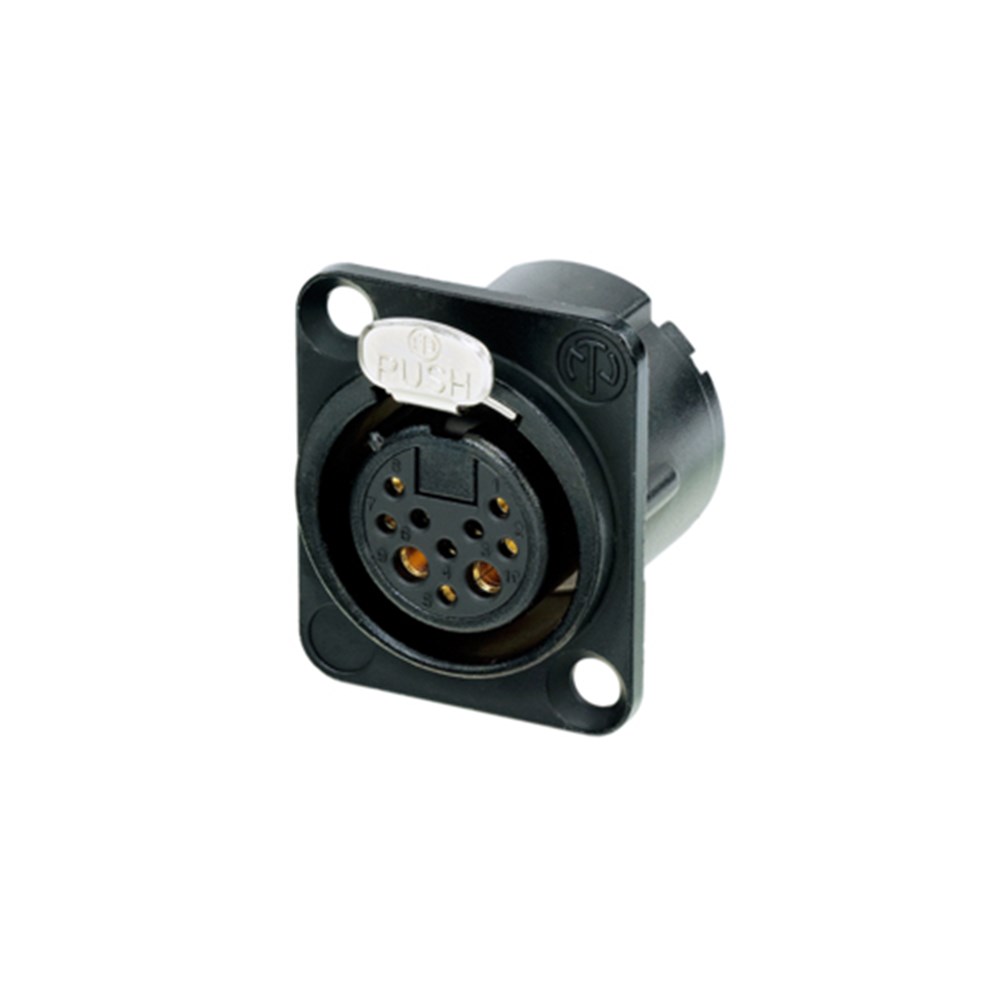

XLR 10 pin femail D chassis Connector DLX Series

Product Code: NU-NC10FD-LX-B

Brand
Neutrik
RRP $65.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Neutrik
  • Details
  • Downloads
  • Ordering

8 + 2 pole female D-size receptacle, black chrome metal housing, duplex ground contact


Features & Benefits

  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • Superior ruggedness compared to RJ45 type connectors
  • All metal housing offers best overall RF protection and electromagnetic shielding
  • D-size housing provides installation compatibility with industry standard D mounting dimensions
  • Receptacle with duplex ground contact for excellent signal integrity



Specifications

Product

Title

  • NC10FD-LX-B

Type

  • Chassis

Connection Type

  • XLR

Gender

  • female

Electrical

Contact resistance

  • ≤ 3 mΩ

Dielectric strength

  • 1 kVdc

Insulation resistance

  • > 10 GΩ (initial); 0.1 GΩ (after damp heat test)

Number of electronical contacts

  • 8 + 2

Rated current per contact

  • 16 A (power pins), 3 A (data pins)

Cable shield - shell connection

  • choosable

Transmission performance

  • CAT 5e

Mechanical

Cable O.D.

  • 8.0 - 10.0 mm

Insertion force

  • ≤ 20 N

Withdrawal force

  • ≤ 20 N

Lifetime

  • > 1000 mating cycles

Wiresize

  • 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins)

Material

Contact plating

  • 0.2 µm Au hard alloy over 2 µm Ni

Contacts

  • Brass (CuZn39Pb3)

Insert

  • Polyamide (PA 6.6 30 % GR)

Locking element

  • Steel Ck67

Shell

  • Zinc diecast (ZnAl4Cu1)

Shell plating

  • Black chromium

Environmental

Flammability

  • UL 94 HB

Protection class

  • IP 40

Solderability

  • Complies with IEC 68-2-20

Temperature range

  • -30 °C to +80 °C

Manufacturing Standard

  • IEC 61076-2-103
