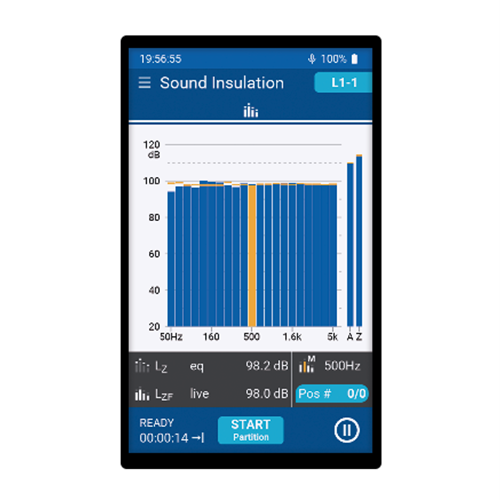

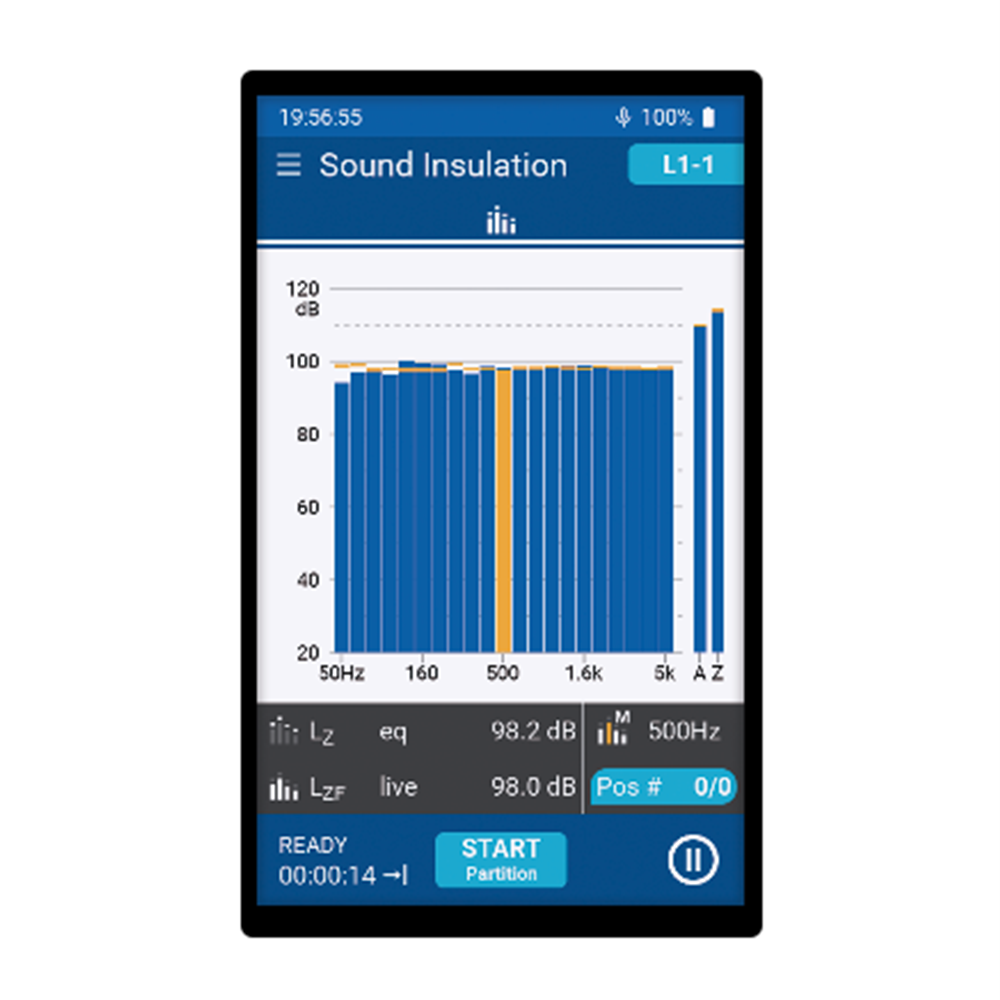

The Sound Insulation Option extends the XL3 for building acoustic applications. The instrument measures the sound pressure level in the sending and receiving room and the reverberation time. All data is aggregated in accordance with the standard and the sound insulation results prompted on the display on-site. This forms the XL3 into a Building Acoustics Analyzer designed for professionals.

Airborne and impact sound insulation
Standards ISO 16283 and ISO 717
Automated measurement data averaging

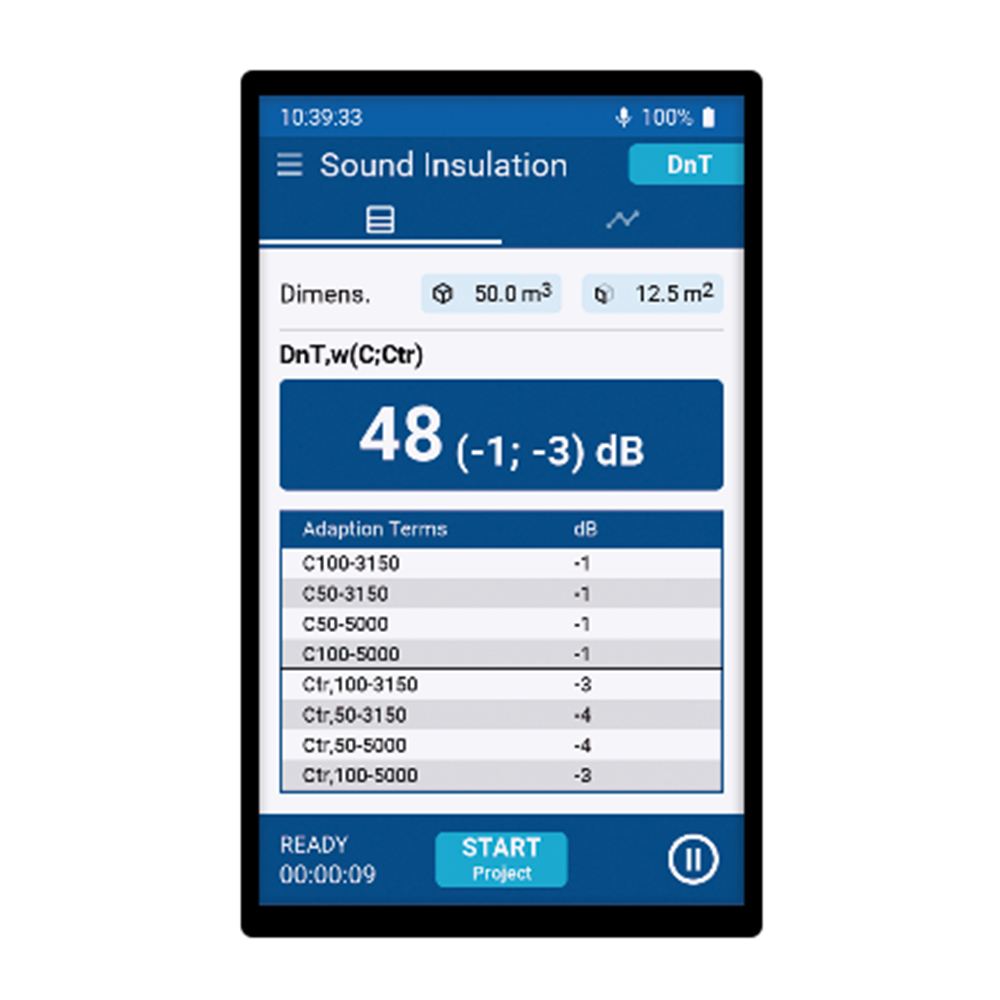

Results D, D’n, D’nT and R'

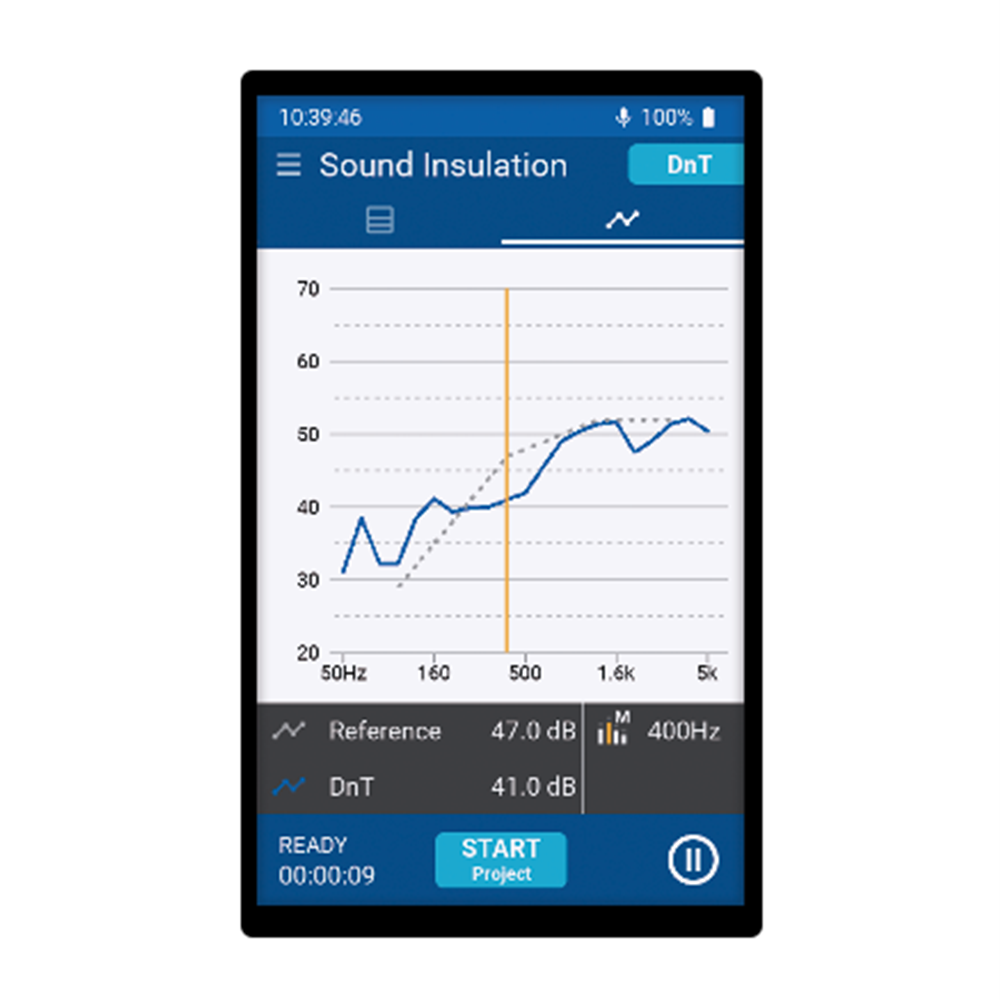

Chart and table
Re-use of existing data (planned)
Requires Extended Room Acoustics Option

NTi Audio #:

Sound Insulation: 600 000 709
Sound Insulation 365: 600 000 723
(annual subscription service)
