IR Link Cable for Control System Integration

CAB-IR-LINK

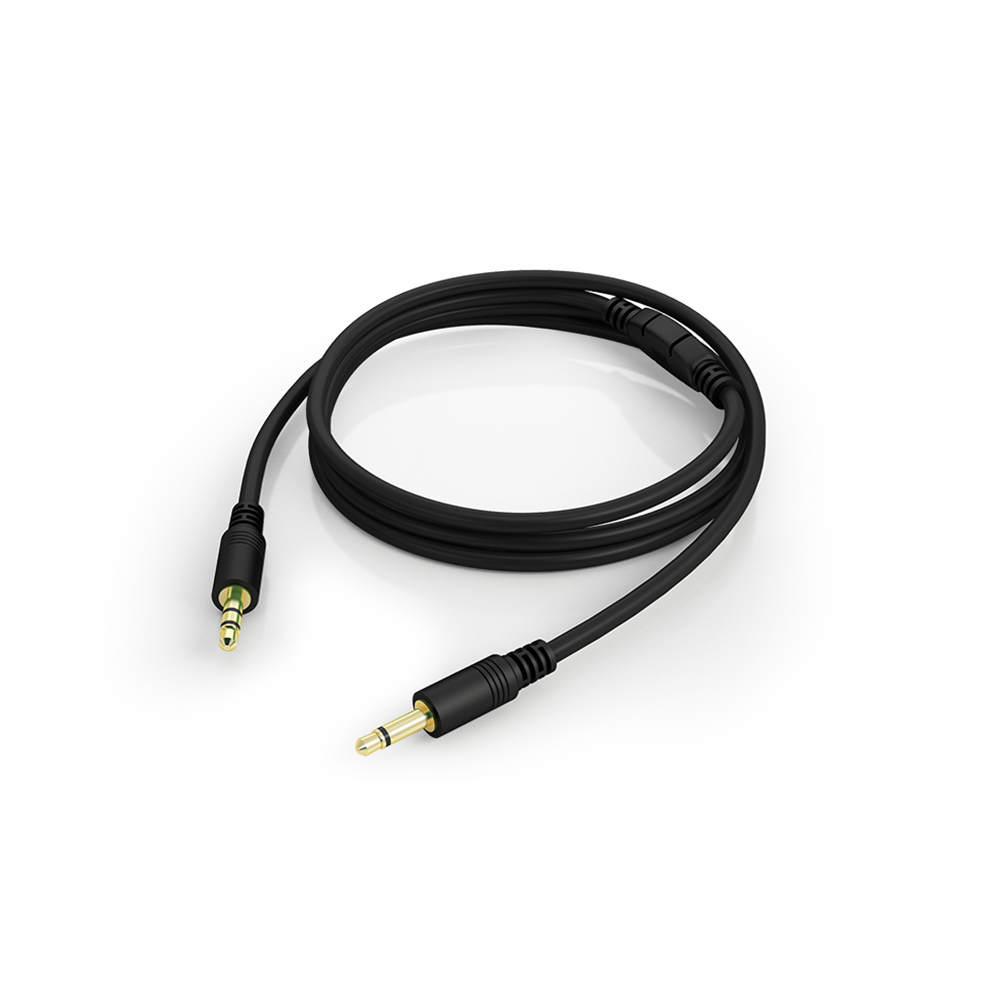

The WyreStorm CAB-IR-LINK integration cable provides integrators with a simple 2-way IR integration between WyreStorm products and any mainstream control system.

Simply plug the CAB-IR-LINK cable from the IR emitter output of any control system to the IR RX port of a WyreStorm matrix or extender set to achieve seamless control system compatibility and integration.

CONTROL SYSTEM BRIDGE
Literally “bridging” the gap between the control system and the distribution system, the CAB-IR-LINK is an essential part of any installers arsenal. Gone are the days of stripping back pre-moulded TRS cables to carry IR control signals.

LONG CABLE IDEAL FOR RACK INSTALLS
At 2m/74”, the CAB-IR-LINK is long enough to meet the requirements of the neatest of rack installers, enabling it to be laced neatly between the control system and the distribution system.

AUTO-SENSING COUPLER
Not just another dumb jack cable, the CAB-IR-LINK has a built-in circuit that will auto-sense incoming voltage & polarity and convert it to a signal suitable for connection to WyreStorm matrix or NetworkHD system.

• Compatible with most leading control systems, including: Control4, Crestron, AMX, Niles, RTI and Bitwise
• 1.2m (length) mono-stereo IR integration cable*
• Auto-sensing polarity
• Automatically adjusts for 5v or 12v control bus
• Tip-VCC 5V, Ring-Signal, Sleeve-Ground

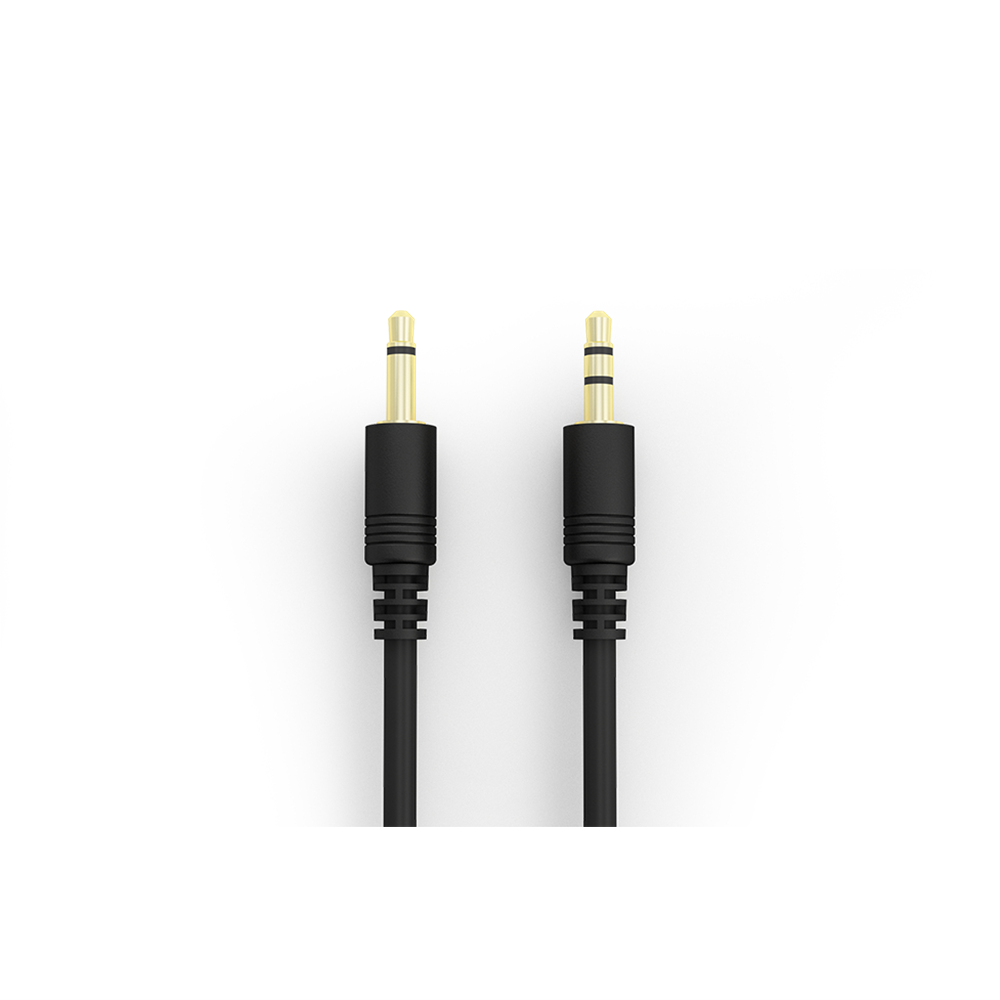

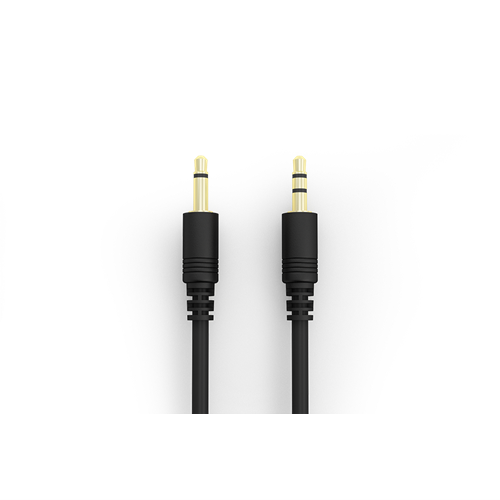

• 3.5mm gold plated stereo plug
• *Not suitable for use with jack extension leads

SPECIFICATIONS

• IR: 1x IR In: 3.5mm (1/8in) TRS Stereo | 1x IR Out: 3.5mm (1/8in) TS Mono

• Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
• Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
• Maximum BTU: NA

• Weight (Kg): 0.48kg/1.05lbs
• Cable Length: 2.0m/7ft
