Wall Speaker 5W WCM5 Australian Monitor

Product Code: AJ-WCM5

Brand
Australian Monitor
RRP $215.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Size 5"
Speaker Type On-Wall
  • Details
  • Downloads

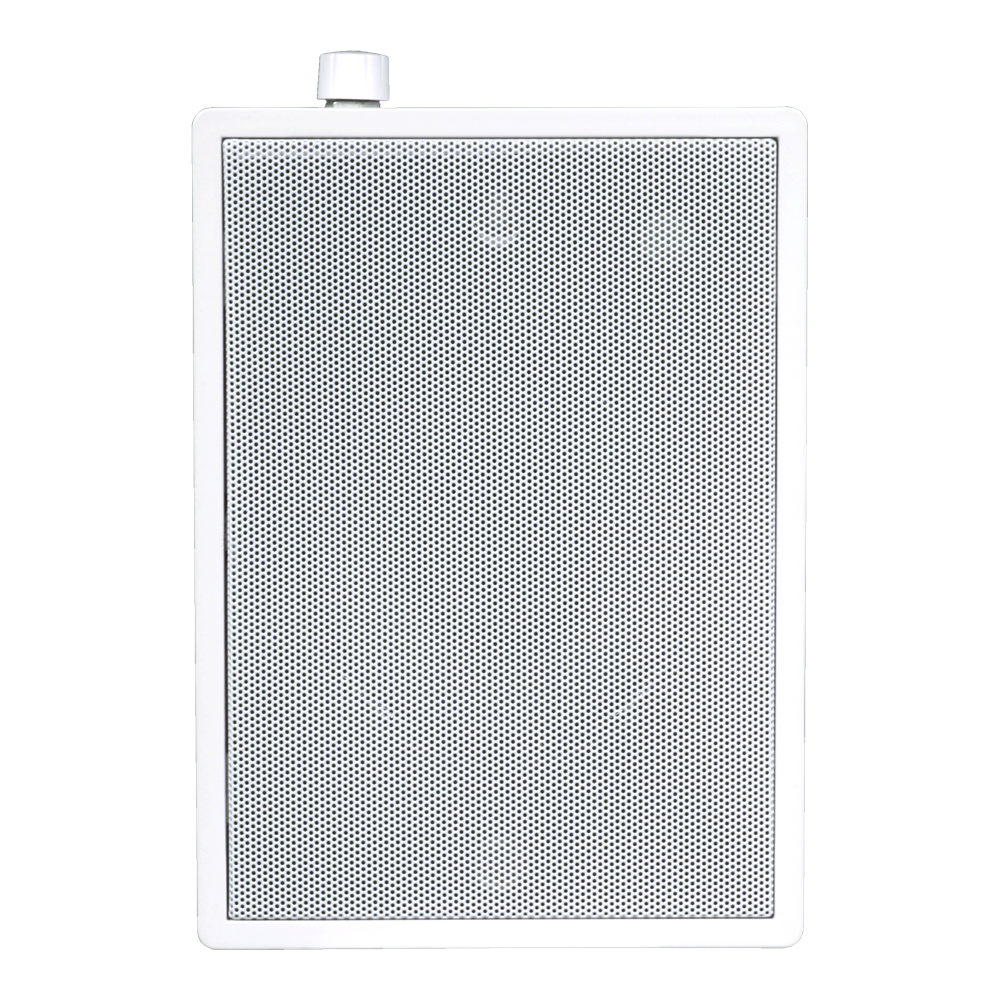

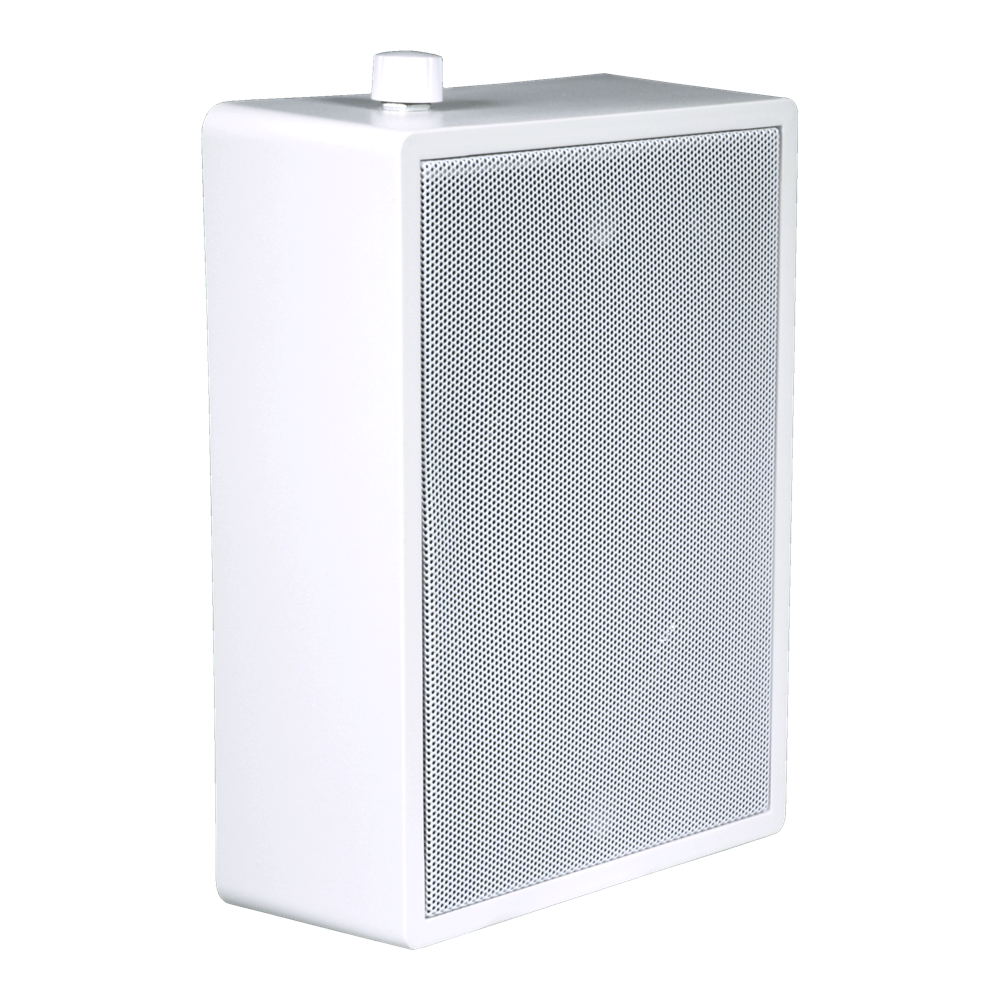

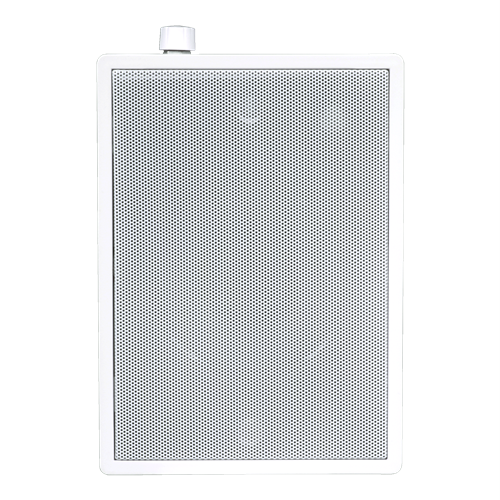

WCM5


Wall Mount Speaker

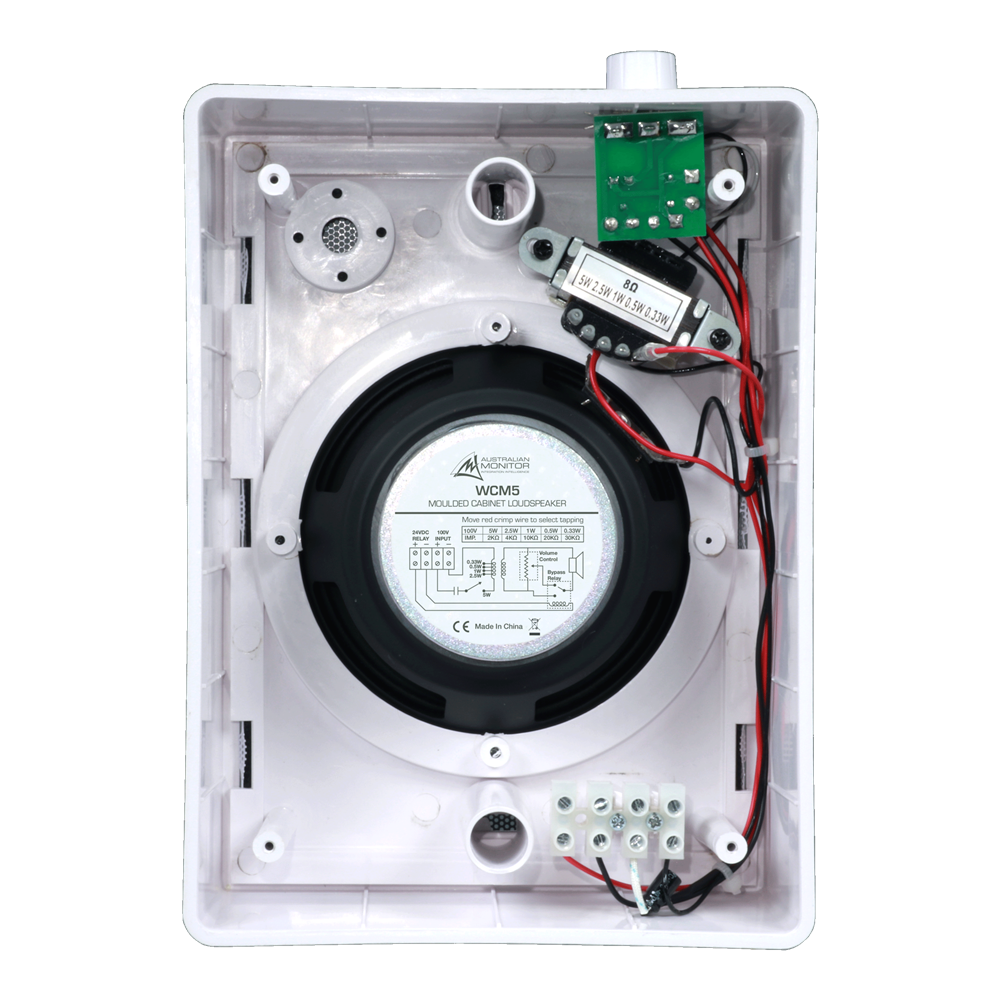

Includes volume control

The WCM5 is a surface mall mount speaker. Including a volume attenuator, attenuator bypass relay and supervisory capacitor athe WCM5 is perfect for classrom, office, EWIS and other paging / BGM applications.

  • Superb voice and music reproduction
  • 100v tappings 5, 2.5, 1, 0.5 and 0.33 watts
  • Integrated volume attenuation
  • Attenuator bypass relay for EWIS
  • Supervisory capacitor installed
  • Sleek appearance

Specifications

  • Form Factor: Wall
  • Max Continuous Power: 5W
  • Tappings: 5W-2.5W-1W-0.5W-0.33W-0.165W
  • Max Program Power: N/A
  • IP Rating: No
  • Max Peak Power: N/A
  • EASE Model: No
  • SPL 1W/1m: 88dB
  • Powered: Passive
  • Max SPL RMS: 95dB
  • Driver Diameter: 5"
  • Max SPL Peak: Unspecified
  • Colour: White
  • Frequency Response (-3dB): 140Hz -20kHz
  • Warranty: 5 years
  • Dispersion: Unspecified
  • Product Dimensions: (W x D x H) 170mm x 234mm x 75mm
  • Net Weight: 1.05 Kg
  • GTIN EAN: 9323383011359
