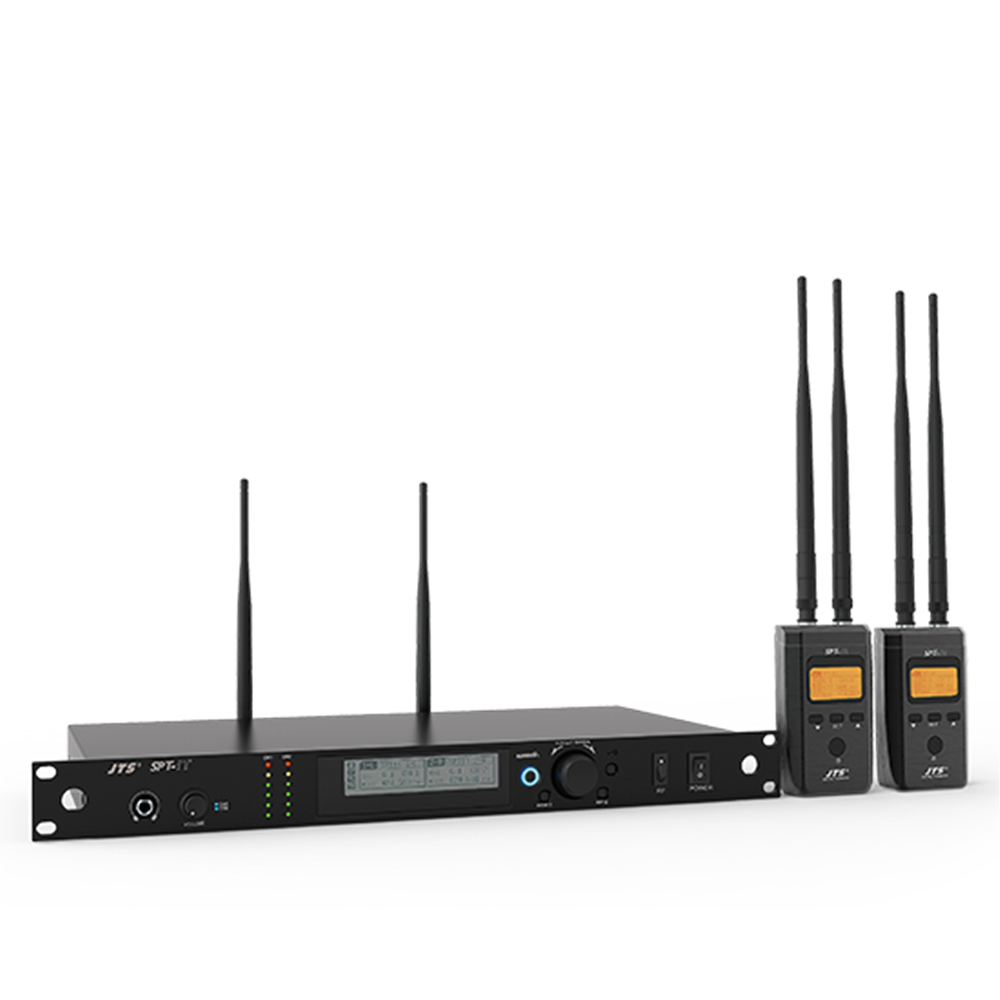

With UHF true diversity technology, receiver 36 MHz switching bandwidth and 6 preset groups of up to 1441 selectable channels, the SPT-1R/1T wireless audio system is your perfect partner for mission critical applications.

Obviate Audio Delay/Latency

• Eliminate Complex Cable Runs
• Fast Setup/Teardown with Great Installation Flexibility
• Independent Audio Channel Control

Your best and state-of-the-art wireless solution that eliminates the need for speaker cabling and audio latency without any compromise in sound quality sound quality.

SPECIFICATIONS

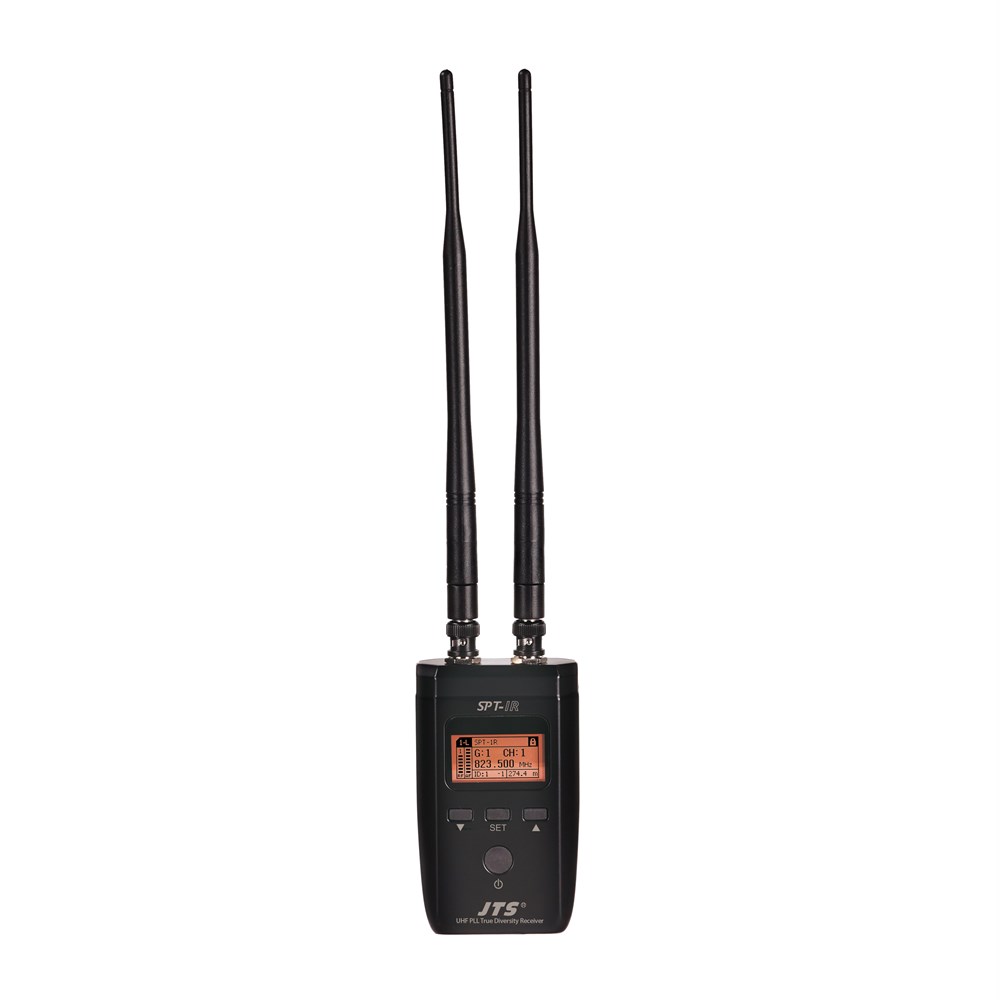

• SPT-1R
• Frequency Oscillation    Phase-Locked Loop, PLL
• Carrier Frequency    470~960 MHz
• Number of Channels    2 Channels
• Frequency Matching    2.4GHz RF
• Antenna Selection    True Diversity
• Signal to Noise Ratio (S/N)    >106dB(A)
• Total Harmonic Distortion (T.H.D)    <0.5%@1KHz
• Reception Sensitivity    -95dBm,S/N>80dB
• Mirror Rejection Ratio    >80 dB
• General Frequency Response    50Hz~18KHz±2dB
• Antenna Connector    BNC Female
• Display    LCD
• Functions Displayed    Group, Channel, Frequency, Antenna A/B, AF Indication, RF Indication, Remoset ID, Delay Time (distance)
• Controls    Power Switch, Group, Channel, Frequency, Reception Sensitivity, Key Lock, Delay Time, Display Settings, Language
• Audio Output Level (MAX)    Mini XLR Jack：+10dBu(Line)、-10dBu(MIC)
• Audio Output Impedance    600Ω
• Mute    Noise Mute and Pilot Tone
• Output Port    Balanced Mini XLR
• Power    DCV INPUT 12V/0.5A
• Dimensions    365mm(L) x 70mm(W) x 30mm(H)
• Remark    Specifications provided above may be slightly different from the product without further notice.

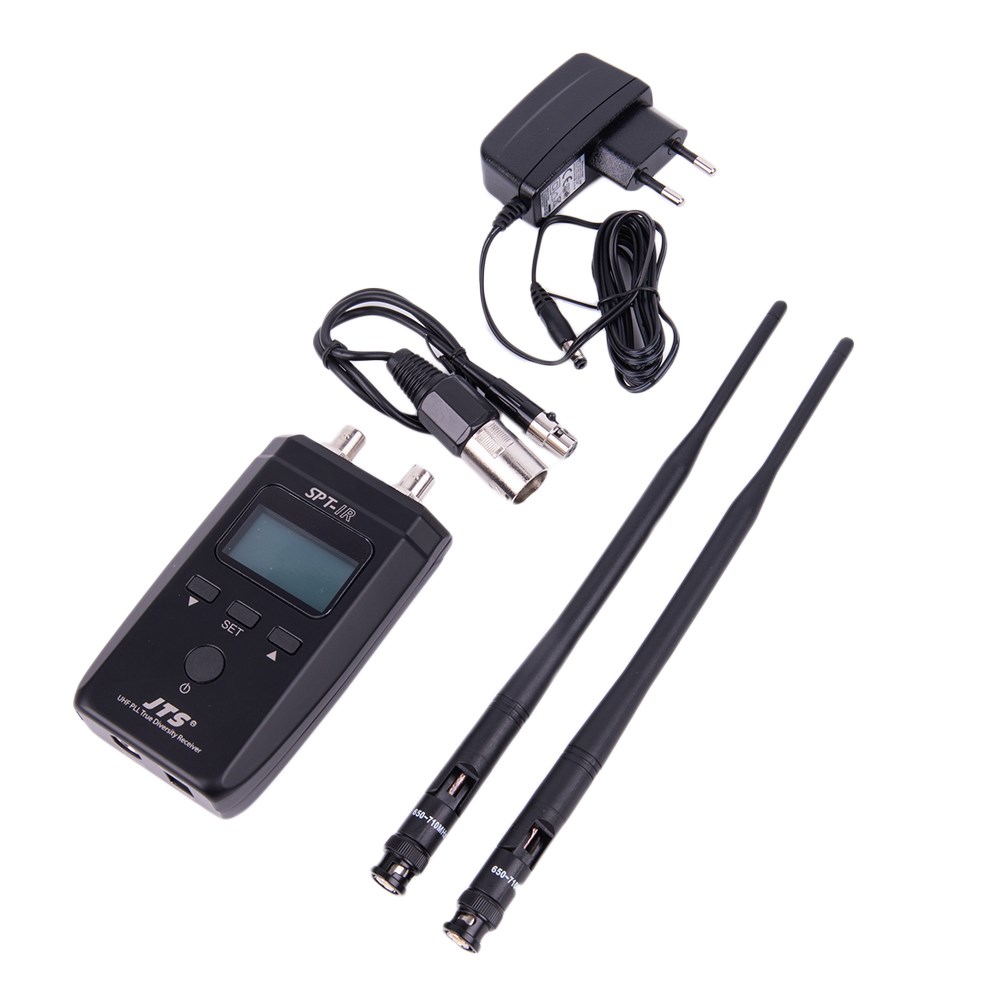

Accessories
