Cables and Connectors

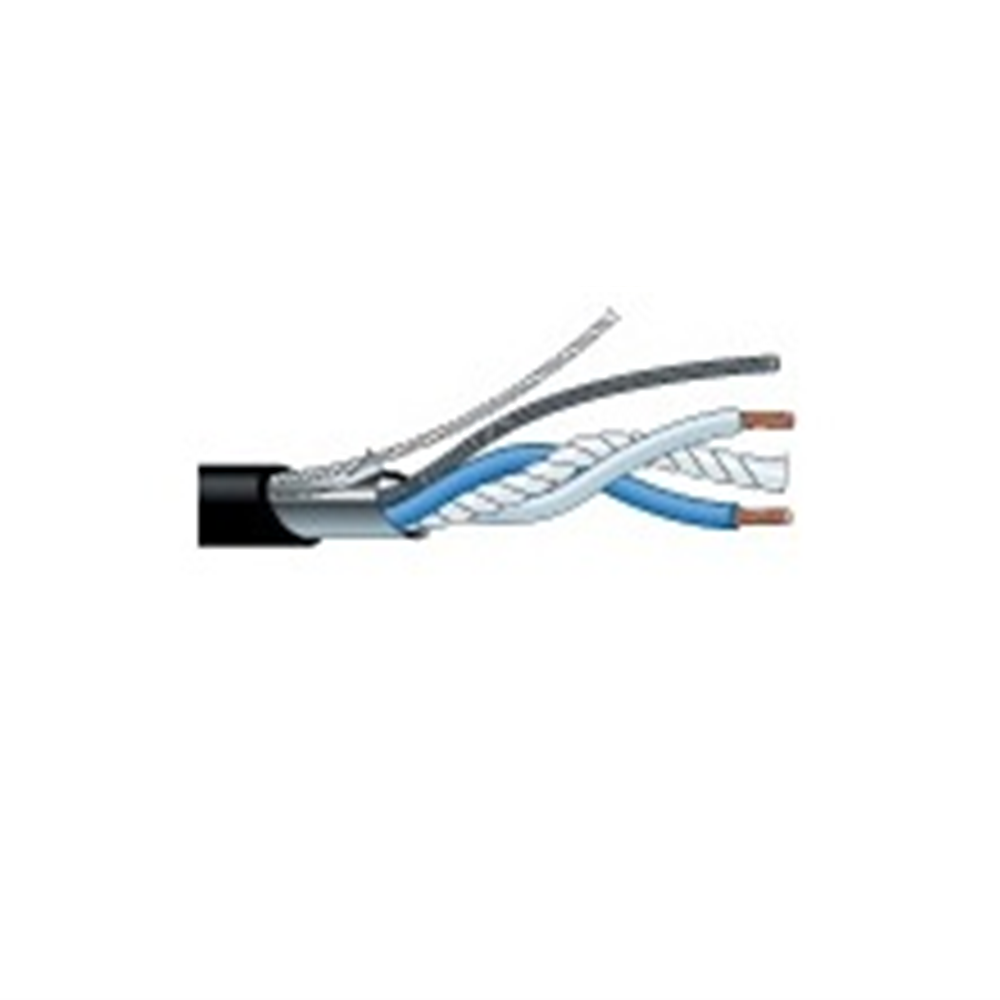

2-CONDUCTOR MICROPHONE CABLE

Product Code: CA-L-2E5AT-BK200

Brand
Canare
RRP $560.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type 2 Core
  • Details
  • Downloads
Aluminum Foil Shield.

L-2E5AT
?  Ideal for internal rack wiring.
?  Internal drain wire eliminates the troublesome part of the termination work.
?  The L-2E5AT contains the Tetoron cable filter reinforcement material.

L-2E5AL
?  Cables for connecting devices with which wrapping tools can be used.
?  Internal drain wire eliminates the troublesome part of line termination work.

MECHANICAL SPECIFICATIONS
Model Std.
Lng.

ft.
(m)		 Wt
Std.
Lng.
lbs
(kgs)		 Nom.
O.D.

in.
(mm)		 No.
of
Cond.		 Cross Sec Area (AWG)
and Cond. Comp
mm2?(AWG)
Q'ty/mm		 Pitch
Twist
Quad
in.
(mm)
L-2E5AT 656
(200)		 2.7
(1.1)		 .197
(5.00)		 2 0.31(23)
12/0.18A		 1.18
(30)
L-2E5AL 656
(200)
1640
(500)		 12.1
(3.7)		 .197
(5.00)		 2 0.29(23)
7/0.23TA
Overall tin coated		 1.18
(30)



















Insulation: Cross-linked PE (polyethylene for L-2E5AL)  Jacket PVC  Dielectric strength: 500V AC/min.

ELECTRICAL PERFORMANCE/QUAD
Model Cond.
D.C.R.

 Shield
D.C.R.		 Nom.
Cap.*		 Nom.
Cap.**
L-2E5AT 6.2 - 79 140
L-2E5AL 6.8 - - -
*Capacitance between conductors.
**Capacitance between conductor and shield.
