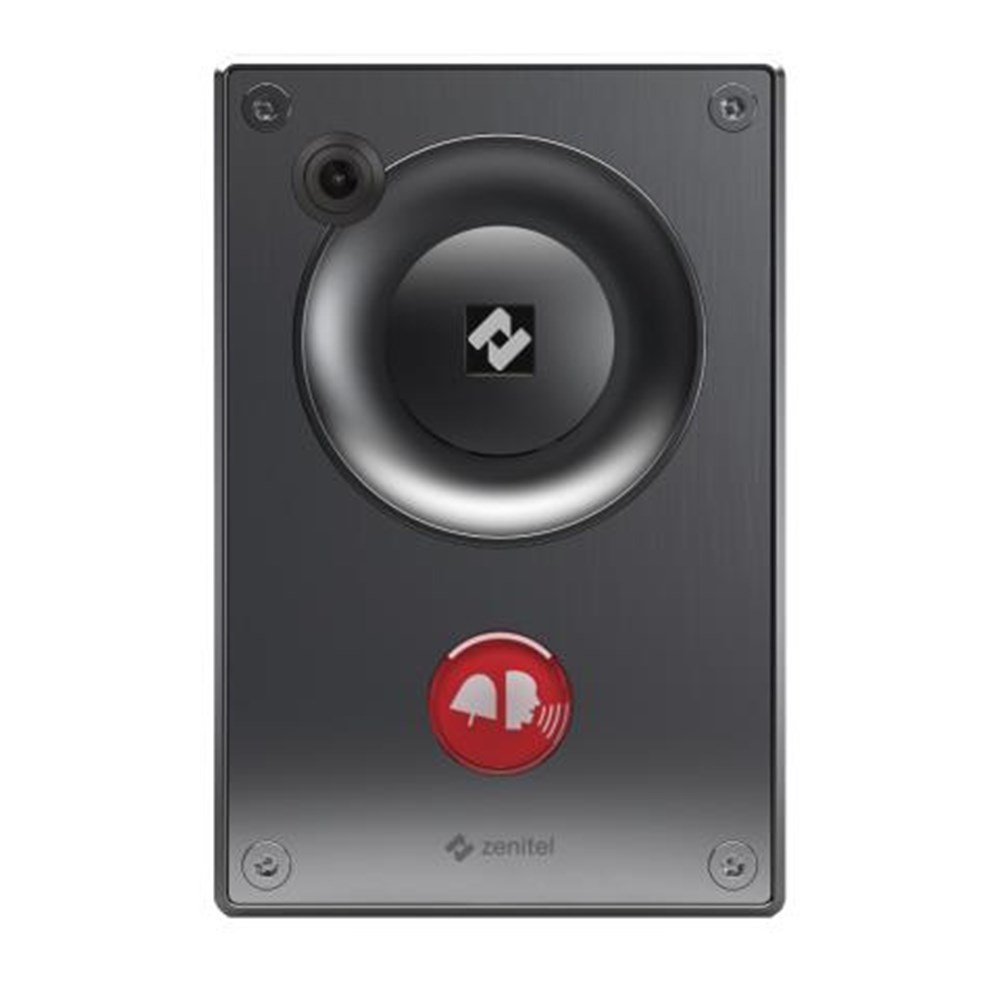

The TCIV-2+ station utilize the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, noise and acoustic echo cancellation, MEMS microphone, a 10W Class D amplifier and our unique speaker grille design. These features, in conjunction with the company's 70+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality. The Turbine IP Video Intercom range expands this feature set with wide FoV HD Video, Digital PTZ and support for H.264 and MJPEG.

IP and SIP Video Intercom

• Powerful audio technology, including high sound pressure, automatic volume gain control, and noise and acoustic echo cancellation.
• HD video up to 1080p resolution
• Wide angle lens
• High performance hardware platform with 4 x Cortex-A53 CPU cores and 512MB LPDDR4 RAM
• ONVIF Conformant
• Vandal Resistant Design
• IP66 - Dirt, dust and water resistant
• Cybersecurity compliant
• Can operate in SIP, IC-EDGE and ICX-AlphaCom mode

• SPL peak power at 1m in open duplex    90 dB
• SPL peak power at 1m in half duplex    100 dB
• SPL peak power at 1m in program distribution and announcement    100 dB
• Noise cancelling    Yes
• Codecs    G.711, G.722, G.729
• Frequency range, G.722 Codec    200 Hz – 7000 Hz
• Audio technology    Modes: Full open duplex, switched open duplex
• Adaptive jitter buffer
• Custom Ringing Tone
• Audio Mixing – Conversation and Group Call
• Automatic gain control (microphone)
• Sound Level Detection / scream alarm (in AlphaCom mode)
• Internal speaker amplifier    10 W class D
• Internal speaker    10 W
• Microphone technology    Digital MEMS, omnidirectional microphone
• Automatic Volume Control (AVC)    Yes
• Acustic Echo Cancellation (AEC)    Yes

• Lens    F 2.0, fixed iris
• Image Sensor    1/2.5" RGB CMOS
• Light Sensitivity    Down to 1 lux
• Resolution    240 / 480p / 960x720p / 1440x1080p*
• Frame Rate    Up to 30 FPS in 1440x1080p**
• Supported Codecs    MJPEG, H.264 **
• Digital PTZ    Yes
• Digital Zoom    Up to 4x
• Field of View    Configurable up to 180 degrees horizontally and vertically
• Parallel videostreams    6 (1x SIP H.264, 2x HTTP MJPEG, 3x RTSP sessions)
• * MJPEG does not support 720p and 1080p resolution.
• ** 30 FPS is only supported in H.264 mode, while MJPEG is limited to 10 FPS.
• *** AlphaCom mode supports only RTSP H.264 mode, while other modes support SIP H.264.

• Ethernet connector    1 x RJ-45
• All other connectors    Tool less, spring loaded, vibration proof terminals
• General inputs and outputs    6 (configurable)
• Outputs    12mA as LED drivers
• Change-over relay (NO+NC+COM)    SELV
• Power options    PoE, PoE+
• PoE (Power over Ethernet)    IEEE 802.3af standard, IEEE 802.3at
• Power consumption    Idle 3.5W, max 12W (depending on volume)
• Audio Line out / Induction loop signal    0 dBV
• Button backlight    LED
• Call indication    Icons/colors for hearing impaired

• CPU cores    4 x Cortex-A53
• CPU Clock Speed    1.6 GHz
• RAM    512 MB LPDDR4
• Flash    1 GB
• Video encoder    MJPEG, H.264
• Dual Image    Yes

• Dimensions (HxWxD)    180 x 120 x 73 mm / 7.1” x 4.7” x 2.9”
• Dimensions after flush mount    180 x 120 x 24 mm / 7.1” x 4.7” x 0.9”
• Dimensions with on wall box    180 x 120 x 86 mm / 7.1” x 4.7” x 3.4”
• Weight    1 kg / 2.2 lbs.
• Faceplate material    3 mm / 0.12” stainless steel - AISI 316L
• Base / frame material    3 mm / 0.12” Aluminum alloy - A413.0, AlSi12Fe, painted
• Electronics cover material    Polycarbonate (semi translucent)
• Gasket material    TPV
• Fastening bracket material    SECC Steel
• Button material    3 mm / 0.12” Polycarbonate (transparent)
• Button travel length    1.25 mm
• Button activation force    350 gf
• Button push-cycles before failure    300 000
• Loudspeaker poke protection, large diameter object    3D cast aluminum speaker grille
• Loudspeaker poke protection, small diameter objects    Stainless steel mesh, acoustically transparent
• Anechoic Design    Open flow anechoic design eliminates "standing waves"

• Protocols    IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, RTSP, RTCP, SRTP, DHCP, SNMP, Vingtor-Stentofon CCoIP®, NTP, ONVIF, WS-Discovery
• LAN protocols    Power over Ethernet (IEEE 802.3 a-f), Power over Ethernet (IEEE 802.3at), Network Access Control (IEEE 802.1x)
• Management and operation    HTTP/HTTPS (Web configuration) DHCP and static IP. Remote automatic software upgrade. Centralized monitoring.
• Advanced supervision functions    E.g. network test, tone test, status reports
• SIP support    RFC 3261 (SIP base standard) RFC 3515 (SIP refer) RFC 2976 (SIP info), SIP using TLS, RFC 5630 SIPS URI scheme
• DTMF support    RFC 2833, 2976 (SIP info)
• Integration and API    Connected to ICX-AlphaCom through AlphaCom protocol ACDP
• Connected to Zenitel Connect Pro though Zenitel Link
• ONVIF
• Scripting

• IP rating    IP-66, tested according to EN 60529 (applies when mounted in TA-1 back-box)
• Operating temperature range    -40° to 70° C / -40° to 158 ° F
• Storage temperature range    -40° to 70° C / -40° to 158 ° F
• Relative humidity    < 95% not condensing
• UV-resistant    Yes
• EMC    CE and FCC Part 15

• ONVIF Conformant    Profile S
• Other Specifications
• IP address information    Speaks IP address after system boot
• Country of manufacture    Poland
• Warranty    2 Years standard warranty, extendible up to total of 5 years (additional fee)
