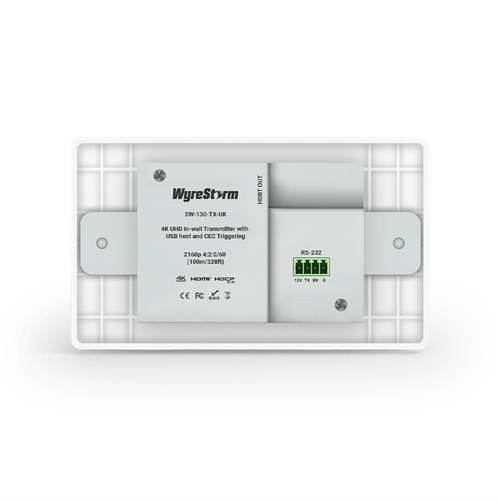

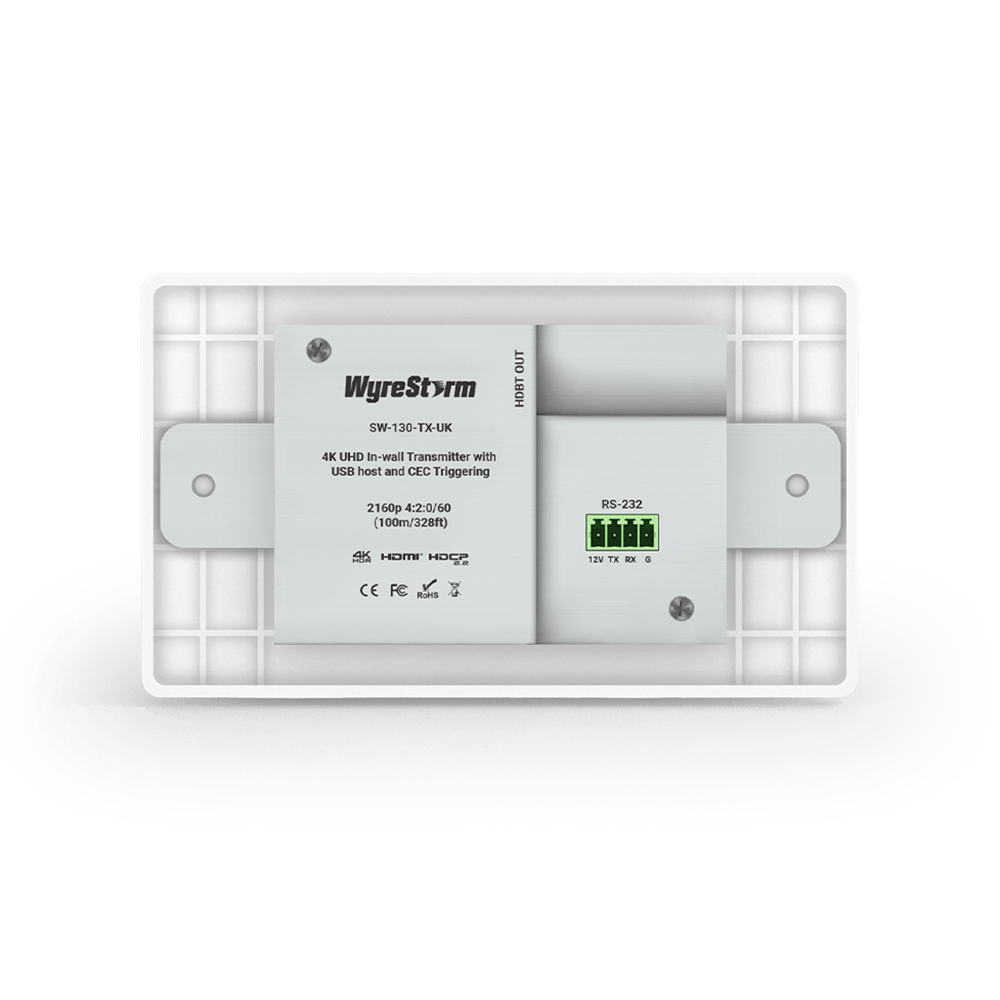

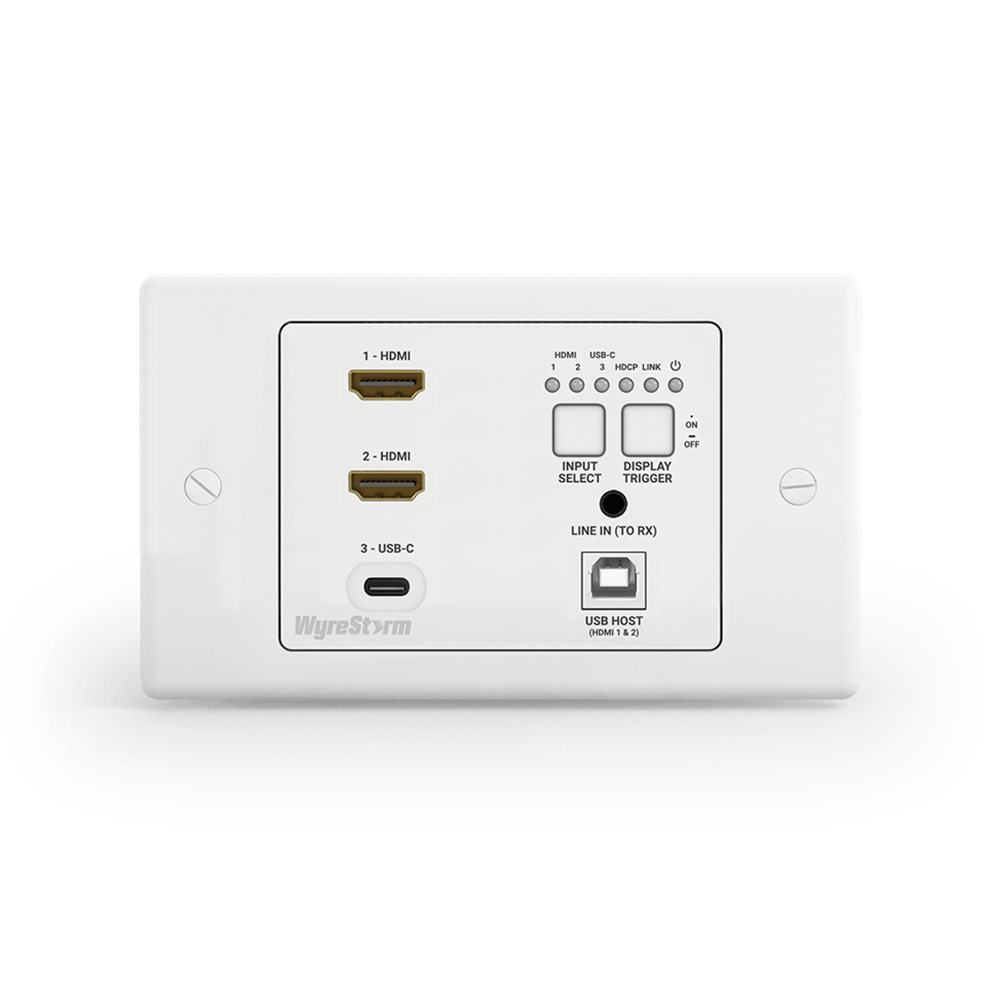

3-Input In-wall HDBaseT Transmitter (2-gang UK)

SKU: SW-130-TX-UK

3 inputs and powerful HDBaseT transmission result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic or manual switching of 2 HDMI’s or USB-C and CEC power triggering via HDBaseT mean a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.

• 3-INPUT SWITCHING TRANSMITTER
  Setting a new standard for in-wall HDBaseT transmission, the SW-130-TX-US brings features of the WyreStorm range of professional switchers and packs them into a 2-gang form factor. Automatic or manual switching of the 3 connected sources (2 HDMI and USB-C) is possible with the USB-C supporting alt-mode functionality allowing a portable device such as a tablet or phone to be connected and send its content at up to 4K/30. HDCP 2.2 is also supported for the transmission of encrypted content.
• USB 2.0 PASS-THROUGH
  HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. The SW-130-TX has a USB host port allowing USB device data to be routed into the selected laptop (via HDMI). Going further, it can send USB device data natively through the USB-C port allowing a single cable to be used for A/V and USB device connectivity.
• FEATURES TURNED UP TO 11
  It’s not all about the A/V when it comes to HDBaseT; with increased functionality on all fronts, the SW-130-TX can be used to send power triggers to a compatible connected screen, allowing centralized control and is PoH compatible meaning it can be passively powered over HDBaseT from a compatible receiver. The SW-130-TX can even power & charge a phone or tablet connected to the USB-C port so you don’t run out of juice mid-flow (max. 5v 2A)
• HDCP 2.2 COMPATIBLE
  The industry’s latest encryption standard designed to stop the illegal copying & distribution of 4K UHD content; no longer unique to residential solutions WyreStorm presentation switchers are fully compliant with HDCP 2.2, enabling you to de-centralize source devices within an installation.

Features

• Professional HDBaseT switcher/transmitter for video conference or meeting rooms
• 3-switchable inputs: 2 HDMI and USB-C supporting:
  • Content up to 4K/30 4:4:4 & RGB or 4K/60 4:2:0 8-bit
  • The latest HDR standards, including HDR-10 and Dolby Vision™ at 30Hz
  • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
  • HD Multichannel audio up to DTS:X and Dolby Atmos™
• USB-C port supports alt-mode functionality for A/V and USB data
• USB-C charging for connected devices up to 2A
• Compatible with DVI-I and DP++ v1.3 signals from supported devices
• Additional 2ch analogue audio input for sending separate stereo audio to RX
• USB2.0 host port for connection of far-end devices such as webcams, smart touchscreens and microphones
• Automatic or manual CEC triggering for compatible connected screens or projectors
• Primary power supply via PoH from a supported receiving device (RX-700)
• Additional power input via DC port on rear via 12v 1A PSU (not included). Port shared with RS-232 input
• Control options include automatic switching, manual switching & CEC trigger and RS-232 control
• Compatible with TS-280 touchscreen for control with 12v power outlet
• White 2-gang decora fascia, removable
• For optimum performance, use with RX-700 4K HDR 4:4:4 60Hz HDBaseT2.0 Receiver with USB device inputs, Ethernet & PoH (4K: 100m/328ft)

Specifications

TRANSMISSION

• Transmission Encoding:    HDBaseT Class C | PAM16 Encoding
• End to End Latency:    10µs
• Maximum Transmission Bit Rate:    10.2Gbps

VIDEO

• HDMI:    (v2.0b) TMDS | 340MHz Maximum
• Inputs:    2x HDMI In: 19-pin type A1x USB-C In: USB 3.1c Audio/Video (4.5Gbps)
• Outputs:    1x HDBT out: 8-pin RJ45
• Maximum Pixel Clock:    HDMI & HDBaseT: 340MHz

Note: WyreStorm recommends the use of shielded category cable to minimize signal noise and interference.

• Supported Standards    DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT.2100

AUDIO

• Inputs:
  • 1x Audio In: 3.5mm (1/8in) TRS Stereo
  • 2ch audio over HDBaseT | 1-way to RX
• Audio Formats:    2ch PCM | Multichannel up to DTS-X and Dolby Atmos
• Maximum Sampling Rate:    192KHz
• Maximum Audio Channels:    32
• Audio Return Channel (ARC):    Not Supported

COMMUNICATION AND CONTROL

• USB Host (HDMI Inputs):    1x Type B host | Maximum data throughput: 190Mbps
• USB 3.1c:    Alt-mode Supported | A/V and USB data from RX
• RS-232:
  • 1x RS-232: 4-pin Phoenix | Shared with 12v DC input
  • Compatible with WyreStorm TS-280 touchscreen via 4-pin phoenix port (only when using PoH)
• HDCP:    Pass-Through, 2.3 Supported
• EDID:    Pass-Through, from RX
• Consumer Electronics Control (CEC):    One-way display trigger to RX
• Auto Low Latency Mode (ALLM):    Supported
• Variable Refresh Rate (VRR):    Supported

POWER

• Power Supply:    12V DC 1A (not included)
• Max Power Consumption:    7.8W
• Power-over-HDBaseT (PoH):    Supported, 1-way from RX
• Local Power Supply Input:    4-pin Phoenix

ENVIRONMENTAL

• Operating Temperature:    0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
• Storage Temperature:    -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
• Maximum BTU:    2.29 BTU/hr

DIMENSIONS & WEIGHT (CONNECTOR HOUSING)

• Installation:    In-wall, 2-gang
• Height:    86mm/3.38in
• Width:    146mm/5.74in
• Depth:    38mm/1.55in
• Weight:    0.27kg/0.60lbs

REGULATORY

• Safety and Emission:    CE | FCC | RoHS | RCM | EAC
