Product Code: AJ-ATC5404

Technical Specifications

Brands	Australian Monitor
Size	4"
Speaker Type	In-ceiling

Details
Downloads

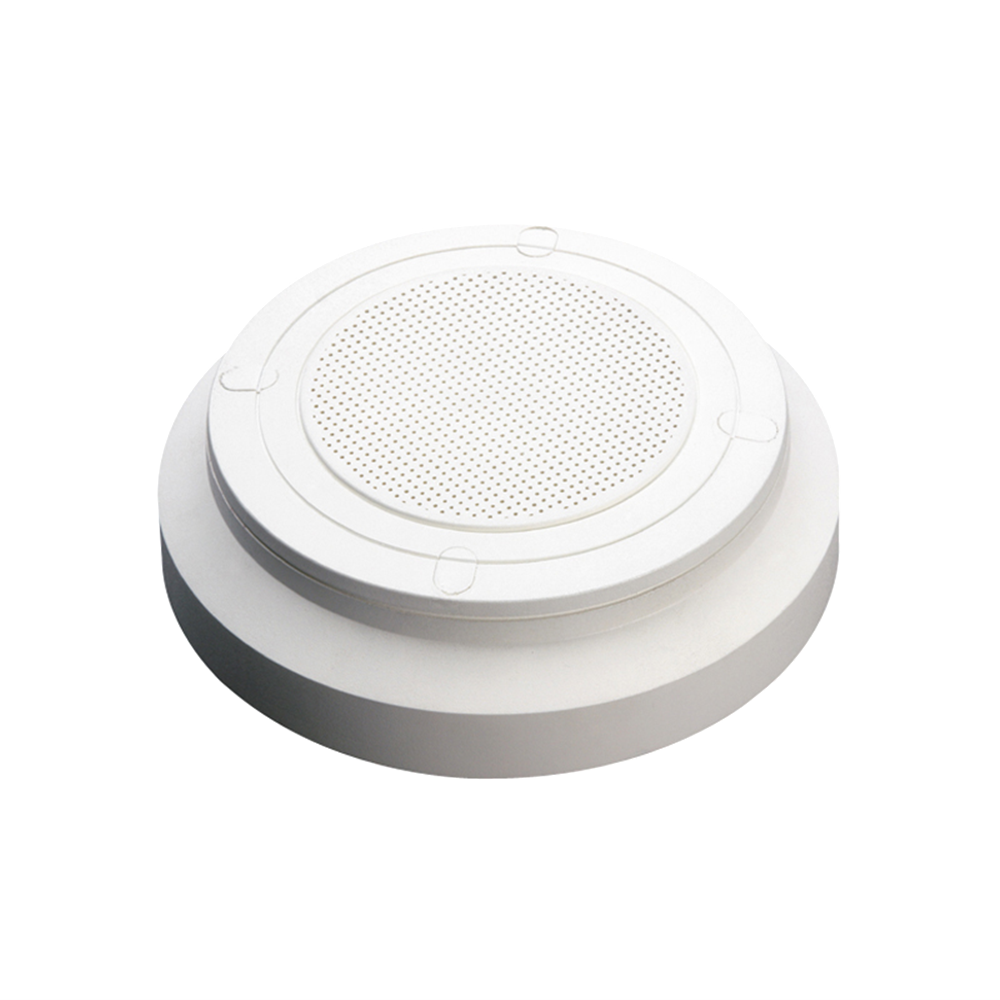

ATC5404

Speaker assembly
Includes ATC5101-6 speaker and ATC5400 grill

4 inch dual cone driver
100v tappings 5,2.5,1,0.5,0.33 watts
92 dB 1 watt @ 1 meter
EVAC cap installed
Cutout diameter 115mm
Depth 110mm

Specifications

Form Factor: Ceiling
Max Continuous Power: 5W
Tappings: 5W-2.5W-1W-0.5W-0.33W
Max Program Power: 10W
IP Rating: No
Max Peak Power: 20W
EASE Model: No
SPL 1W/1m: 92dB
Powered: Passive
Max SPL RMS: 99dB
Driver Diameter: 4"
Max SPL Peak: 105dB
Colour: White
Frequency Response (-3dB): 75Hz - 20kHz
Warranty: 5 years
Dispersion: 160deg
