DPA Microphones

This is a Special Order Item

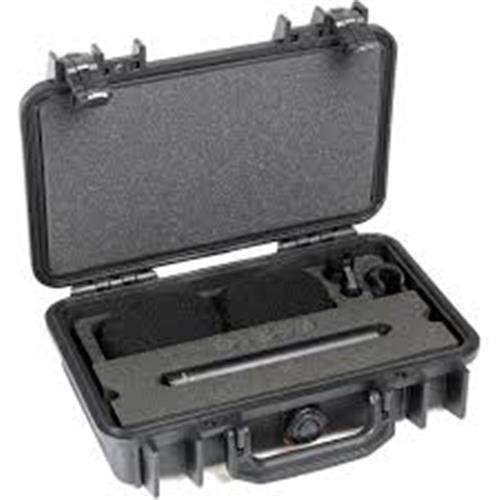

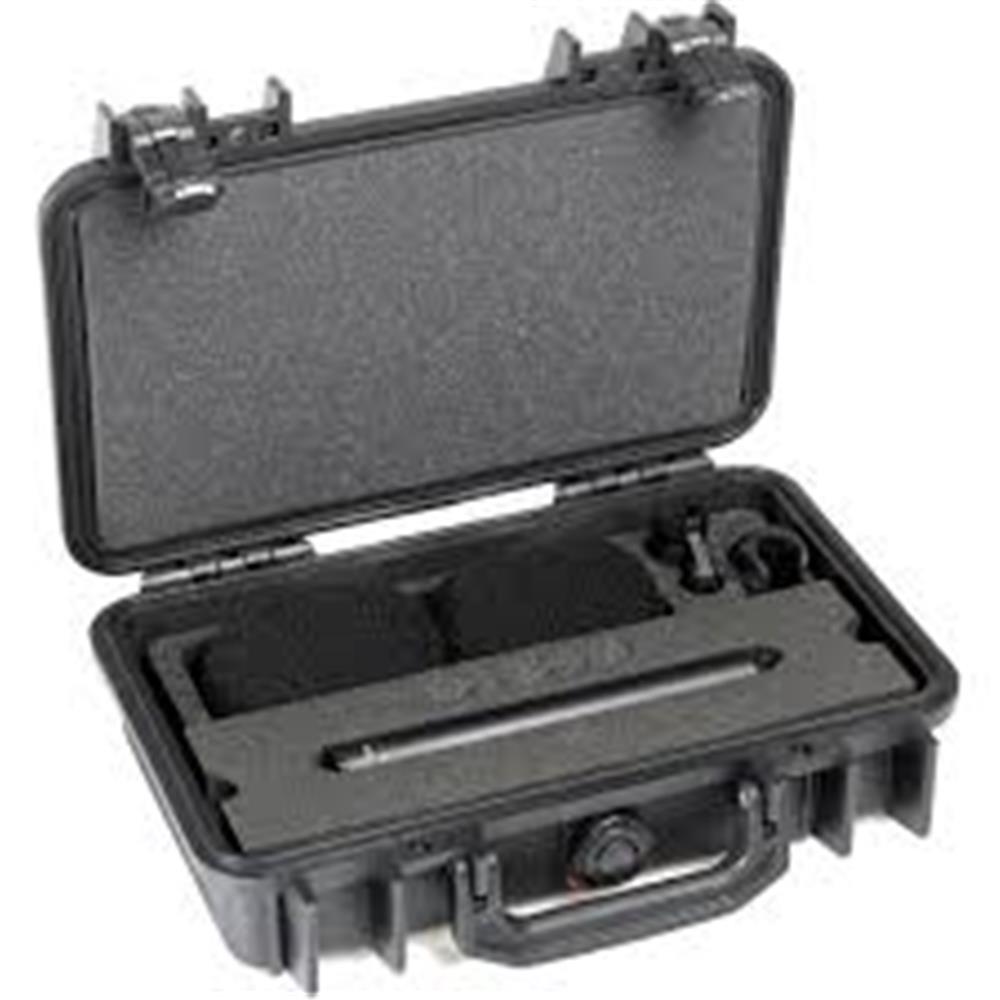

DPA d:dicate™ 2006A Stereo Pair with Clips and Windscreens in Peli Case

Product Code: DP-ST2006A

Brand
DPA Microphones
RRP $4,295.00


Unit of Measure
EACH


5 Year
Features

Matched stereo pairs

  • Modularity – interchangable capsules and preamplifiers
  • Up to 120 dB dynamic range
  • RF rejection between >60 and >40 dB
  • Linear frequency response
  • High SPL
  • Superior gain before feedback

The wide and versatile d:dicate™ Microphone series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
Technical Specifications
Brands DPA Microphones
Series d:dicate
  • Details
  • Downloads
Specifications

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range 20 Hz - 20 kHz
Frequency range, ±2 dB 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Sensitivity, nominal, ±2 dB at 1 kHz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 28 dB (max. 30 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 78 dB(A)
Total harmonic distortion (THD) < 1% up to 130 dB SPL peak
Dynamic range Typ. 114 dB
Max. SPL, peak before clipping 146 dB
Switchable attenuator, filters etc. 0 dB / -20 dB
Output impedance 200 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 160 g
Microphone diameter 19 mm (0.75 in)
Microphone length 164 mm (6.5 in)
Maximum output voltage, RMS 8 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
