Cables and Connectors

This is a Special Order Item

STAR QUAD MULTI CH. MIC CABLE

Product Code: CA-L-4E3-2P-100

Brand
Canare
RRP $1,450.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type Star Quad
  • Details
  • Downloads
A 25 AWG multichannel Star Quad snake cable with raided shields. Each channel is completely isolated and consists of 4 conductors surrounded by an overall braided shield encased in a color coded striped PVC jacket. Fine conductor stranding for flexibility, facilitates roll up and easy payout. The four conductor design provides superior EMI and RFI noise rejection in problem areas on stage.
Excellent crosstalk characteristics allow vastly different signals (-120dB mic, +4dB line, +10dB code levels) to be used in adjacent channels.

Note: All Canare DT12 Snake assemblies are built using our road-worthy
and flexible L-4E3-12P cable.

Multiple Audio Lines.
Portable Applications.
Audio Rack Wiring.
PA Systems.
Braided Copper Shield.
Flexible in Extreme Cold Weather.
Cross Linked PE Insulation.
Rejects EMI and RFI.
Multiple Channels.

MECHANICAL SPECIFICATIONS
Model Std. Lng.

ft.
(m)		 No. of
Channels
(Pairs)
No. of
Cond.
(4 Per
Channel)		 Wt
Std. Lng.

lbs
(kgs)		 Nom.
O.D.

in.
(mm)		 PVC
Jacket
Nom.
Thick.
in.
(mm)		 Brittle
Point

F°
(C°)
L-4E3-2P 328
(100)


656
(200)		 2 8 18
(8)		 .350
(8.8)		 .032
(0.8)		 -22
(-30)
L-4E3-4P 4 16 31
(14)		 .429
(10.9)		 .043
(1.1)
L-4E3-8P 8 32 57
(26)		 .602
(15.3)		 .051
(1.3)
L-4E3-12P 12 48 79
(36)		 .685
(17.4)		 .051
(1.3)
L-4E3-16P 16 64 101
(46)		 .744
(18.9)

.047
(1.2)
L-4E3-24P 24 96 154
(70)		 .945
(24.0)		 .059
(1.5)

(contd.) MECHANICAL SPECIFICATIONS
Model Channel
O.D.

in.
(mm)		 Channel
Jacket
Nom.
Thick.

mil		 Insul.
Type*
Thick

mil		 Cond-AWG
(Qty./mil)
Cross Sec. Area
mil.²
**Quad AWG		 Pitch
Twist
Quad
in.
(mm)		 Shield
Coverage
Channel
Drain Wire
(Bundle
Drain Wire)
L-4E3-P
Series		 .134
(3.4)		 PVC
11.8		 IPE
10.6		 AC - #28
(7/4.72)
124
#25		 <0.63
(<16)		 AC Braid
>93%
_
(20AWG)
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.


ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.

ohm/
1000ft
(ohm/
100m)		 Shield
D.C.R.

ohm/
1000ft
(ohm/
100m)		 Nom.
Cap.
***



pF/m		 Nom.
Cap.
†



pF/m		 Nom.
Imp.


ohm		 Nom.
Atten.

V/1000ft
(V/100m)		 Group
Delay
Time

nS/ft
(nS/m)		 X-Talk
Input
3.31V

mV/
1000ft
(mV/
100m)
L-4E3-P
Series		 <75.8
(<24.9)		 <10.3
(<3.4)		 145 170 43 1.8
(0.6)		 1.8
(5.8)		 <3
(<1)
***Capacitance between conductors.
†Capacitance between conductors to shield.


COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
L-4E3-P
Series		 [+] - - - - - - - - - - - - - - - - - -
[+]=Standard Color, [o]=Available Color, "- -"=n/a

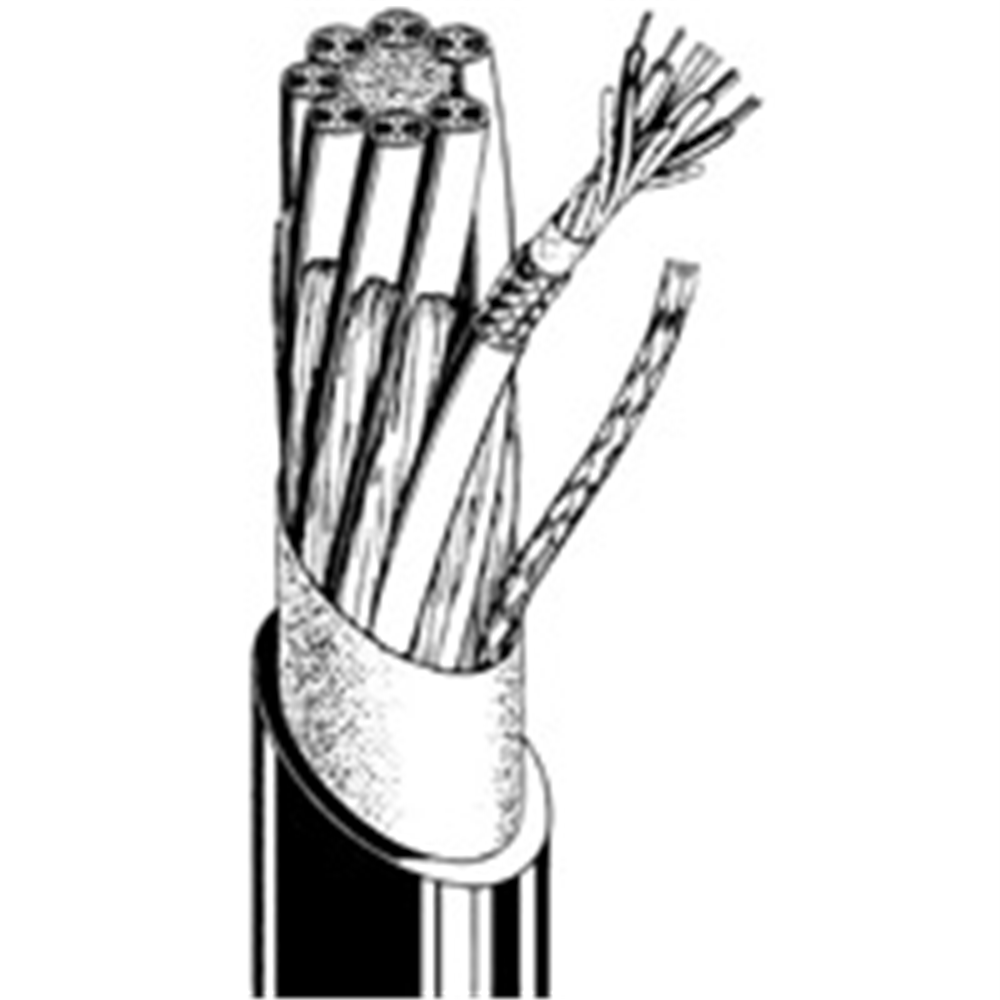

Cross Section
Individual Star Quad Channel


L-4E3-P, L-4E4-AT Cross Section Multichannel Bundle


Channel Color Code
Ch. No. 1 2 3 4 5 6 7 8 9 10 11 12
Spiral
Markers		 RED BLU YEL GRN BRN   -   BLK
BLU		 BLK
YEL		 BLK
GRN		 BLK
BRN		 BLK ORN
BLU

(contd.) Channel Color Code
Ch. No. 13 14 15 16 17 18 19 20 21 22 23 24
Spiral
Markers		 ORN
YEL		 ORN
GRN		 ORN
BRN		 ORN PNK
BLU		 PNK
YEL		 PNK
GRN		 PNK
BRN		 PNK WHT
BLU		 WHT
YEL		 WHT
GRN
