Speakers

6 inch 2-way speaker IP44 Black XRS6ODV Australian Monitor

Product Code: AJ-XRS6ODVB

Brand
Australian Monitor
RRP $559.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Series XRS Series
Size 6"
Speaker Type Outdoor
  • Details
  • Downloads

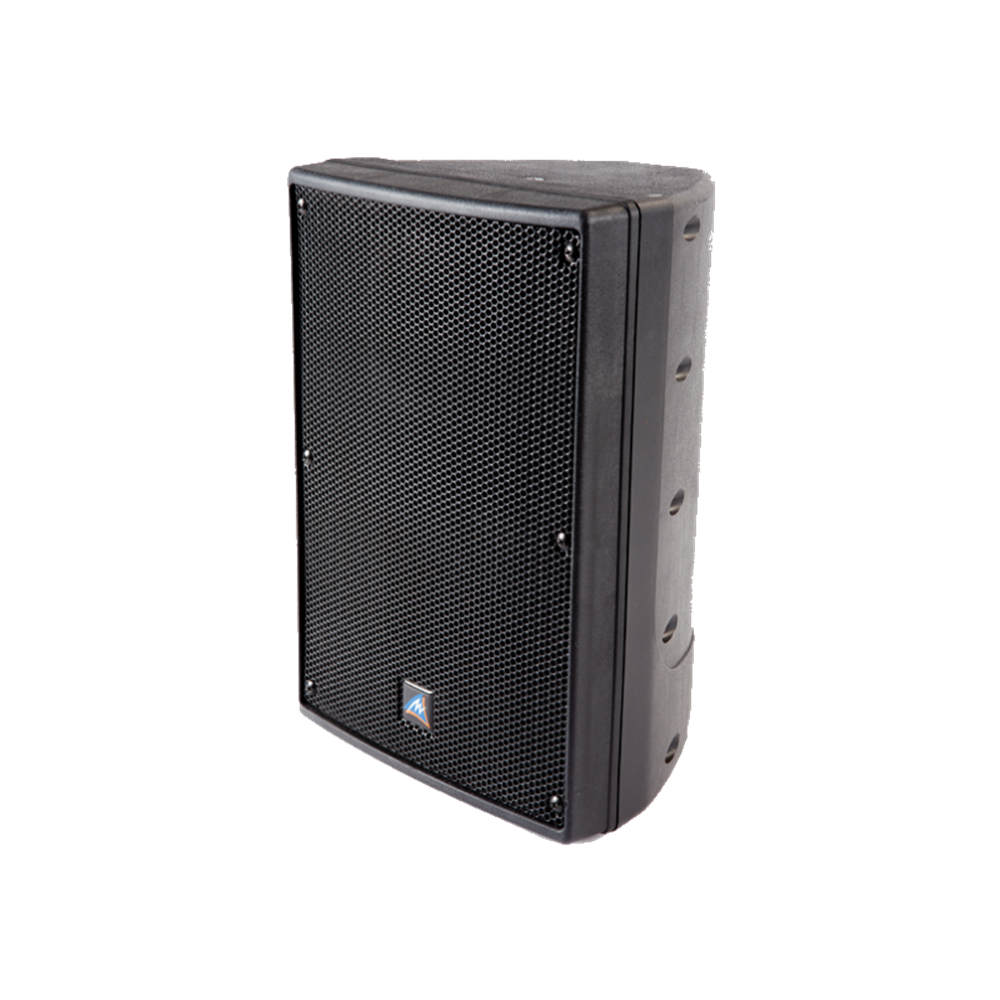

XRS6ODVB

6 inch Passive Speaker

IP44 Rated, 80W, Black

The XRS6ODV is a weatherproof 6" Woofer and 1" HF driver in our XDS outdoor moulded range of speakers, which comes complete with a U bracket for installation.

  • 6" Woofer, 1" HF compression driver
  • 90°x 60° dispersion pattern
  • Inbuilt transformer with tappings at 7.5, 15, 30 and 60 watts @ 70V/100V and 8 ohm bypass.
  • Frequency response 95 Hz - 18 kHz
  • Max SPL 117 dB
  • Sensitivity at 1w/1m is 92 dB
  • IP44 rated
  • Captive flylead
  • U bracket included
  • 6 x M8 eye bolt points

Specifications

  • Form Factor: Box
  • Max Continuous Power: 80W
  • Tappings: 60W-30W-15W-7.5W-8 Ohm
  • Max Program Power: 160W
  • IP Rating: IP44
  • Max Peak Power: 320W
  • EASE Model: No
  • SPL 1W/1m: 92dB
  • Powered: Passive
  • Max SPL RMS: 111dB
  • Driver Diameter: 6" & 1"
  • Max SPL Peak: 117dB
  • Colour: Black
  • Frequency Response (-3dB): 95Hz - 18kHz
  • Warranty: 5 years
  • Dispersion: 90 x 60deg
  • Product Dimensions: (W x D x H) 225mm x 200mm x 325mm
  • Shipping Dimensions: (W x D x H) 260mm x 260mm x 390mm
  • Net Weight: 7 Kg
  • Shipping Weight: 8.2 Kg
  • GTIN EAN: 9323383012714

Product Documents
