NL8MPRXX-BAG

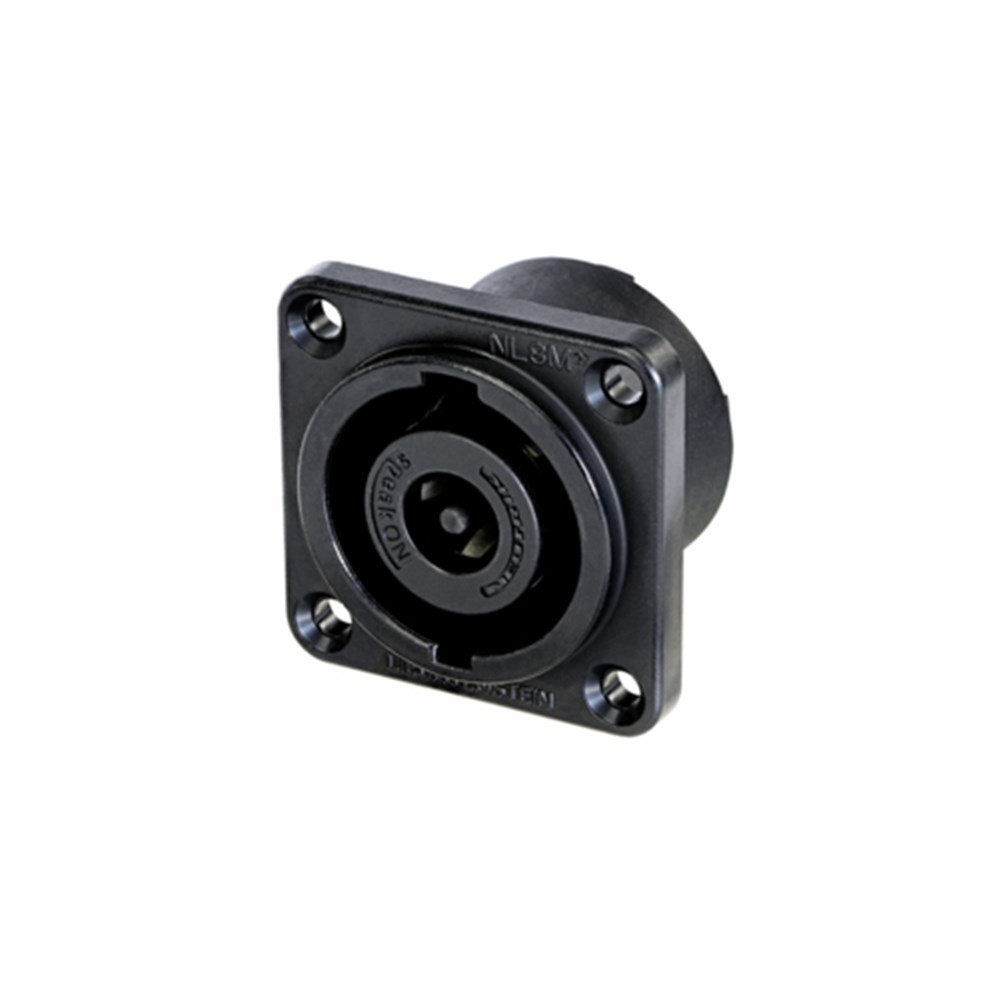

8 pole male chassis connector, black metal square G-size housing, countersunk thru holes, 3/16“ flat tabs

This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections and feature a unique metal locking system, making contact only once fully locked. The receptacles are robust, versatile and easy to terminate.

Features & Benefits

• IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
• Current rating 30 A rms
• Extremely robust metal flange and glass reinforced V-0 material for harsh and demanding environment
• Precise keyway for secure mating
• Airtight design – optimized for speaker applications

Technical Information

Product

• Title:    NL8MPRXX-BAG
• Gender:    male

Electrical

• Contact resistance:    ≤ 2 mΩ
• Dielectric strength:    1.5 kVac
• Insulation resistance:    > 0.1 GΩ (after dampheat)
• Rated current per contact:    30 A rms continuous (acc. to IEC 61984)
• Rated voltage:    250 V ac
• Attention:    speakON is NOT to be used as an mains or power supply connector (AC / DC)!

Mechanical

• Lifetime:    > 5000 mating cycles
• Termination:    3/16" flat tabs
• Locking device:    Quick Lock
• Mounting direction:    Rear / front mounting
• Chassis shape:    square G-size flange
• Layout:    four thru holes

Material

• Contact plating:    Ag
• Contacts:    Copper Alloy
• Shell:   Zinc diecast, black chrome plated
• Insert:    Polyamide (PA 6.6)

Environmental

• Temperature range:    -30 °C to +80 °C
• Flammability:    UL 94 V-0
