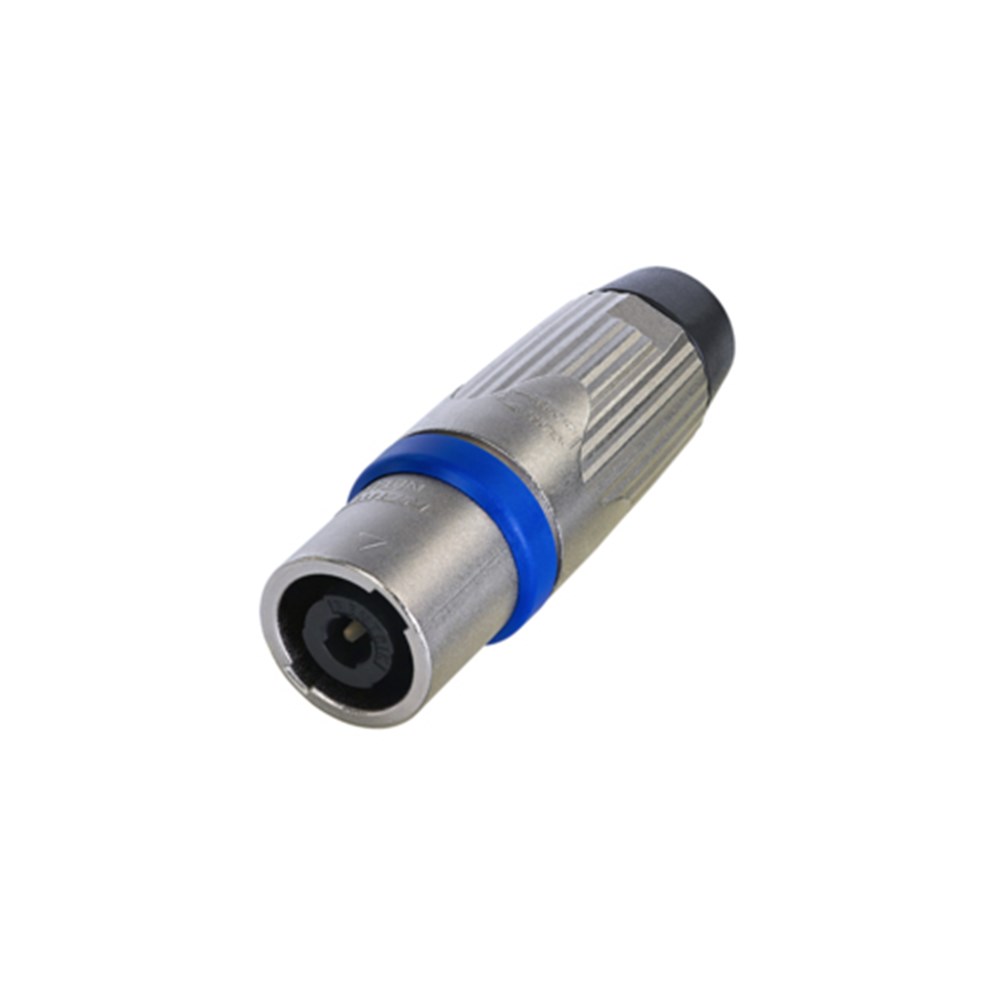

NLT4MXX

4 pole male cable connector, metal housing, chuck type strain relief

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.

Features & Benefits

• IEC 61984 certified, IEC 62368-1 compliant
• Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
• Uses precise “Quick Lock” system
• Extra large solder contacts for up to 6 mm² (AWG 10) wires
• Weatherproof built-in gasket meets IP 54 protection class in mated condition

Technical Information

Product

• Title:    NLT4MXX
• Gender:    male

Electrical

• Contact resistance:    < 2 mΩ
• Dielectric strength:    2.8 kVac
• Insulation resistance:    >0.1 GΩ (after dampheat)
• Rated current per contact:    30 A rms continuous
• Rated voltage:    250 V ac
• Attention:    speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Cable O.D.:    9 - 16 mm
• Lifetime:    > 5000 mating cycles
• Wiresize:    6 mm²
• Wiresize:    10 AWG
• Termination:    Solder contacts
• Locking device:    Quick Lock

Material

• Contact plating:    Ag
• Contacts:    Copper Alloy
• Shell:    Zinc diecast, Ni plated
• Insert:    Polyamide (PA 66)
• Strain relief:    Polyacetal (POM)

Environmental

• Temperature range:    -30 °C to +80 °C
• Flammability:    UL 94 V-0
• Protection class:    IP 54 (mated condition)
• Solderability:    Complies with IEC68-2-20
