Cables and Connectors

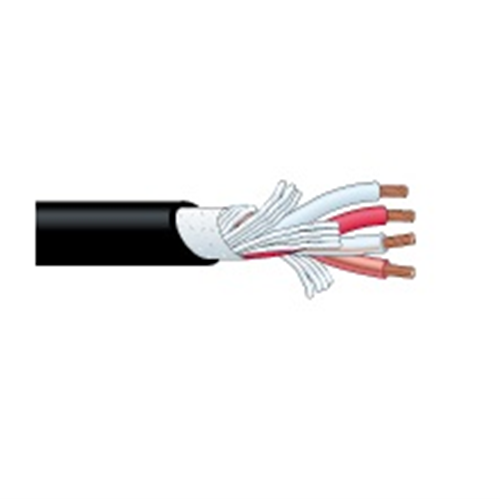

SPEAKER CABLE

Product Code: CA-4S8-BK100

Brand
Canare
RRP $680.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Canare
Bulk Cable Type 4 Core
  • Details
  • Downloads

Key Features:

  • Super flexibility, even in sub-zero weather
  • Star Quad design reduces EMI noise
  • Low capacitance and resistance
  • High-performance PVC jacket, resistant to bending and twisting
  • 4S6 designed to fit the Cannon XLR with ease.

​

Applications:

  • PA Systems
  • Hi-Fi Speakers
  • DC Power Lines



MECHANICAL SPECIFICATIONS
Model Std. Lng.


ft.
(m)		 Wt
Std. Lng.

lbs
(kgs)		 Nom.
O.D.

in.
(mm)		 PVC
Jacket
Nom.
Thick.
in.
(mm)		 Brittle
Point

F°
(C°)		 No.
of
Cond.		 Insul.
Type*
Thick

mil		 Cond-AWG
(Qty./mil)
Cross Sec.
Area
mil.2
Twin Cond.
AWG**		 Pitch
of
Quad
in.
(mm)		 Shield
Cover-
age
4S8 328
(100)
656
(200)		 42
(19)		 .327
(8.3)
.043
(1.1)
 -56
(-49)		 4
RED
CLR RED
WHT
CLR WHT		 PE
19.7		 AC-#16
(50/7.09)
1969
#13		 <2.76
<70		 -
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

ELECTRICAL PERFORMANCE/QUAD WIRED
Model Cond.
D.C.R.
ohm/1000ft
(ohm/100m)		 Shield
D.C.R.
ohm/1000ft
(ohm/100m)		 Nom.
Cap.
***

pF/m		 Nom.
Cap.
†

pF/m		 Nom.
Imp.
ohm		 Nom.
Atten.
V/1000ft
(V/100m)		 Group
Delay
Time
nS/ft
(nS/m)
4S8 4.5
(1.5)		 - 145 - - - -
***Capacitance between twin Red and twin White conductors.
†Capacitance between conductors to shield.
COLORS AVAILABLE
Model Black Blue Brown Gray Green Orange Purple Red White Yellow
4S8 [+] - - - - [+] - - - - - - - - - - - -
[+]=Standard Color, [o]=Available Color, ""=n/a
