Speakers

Speaker 4 5W 100V Tx ATC5101-6 Australian Monitor

Product Code: AJ-ATC5101-6

Brand
Australian Monitor
RRP $62.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Size 4"
Speaker Type In-ceiling
  • Details
  • Downloads

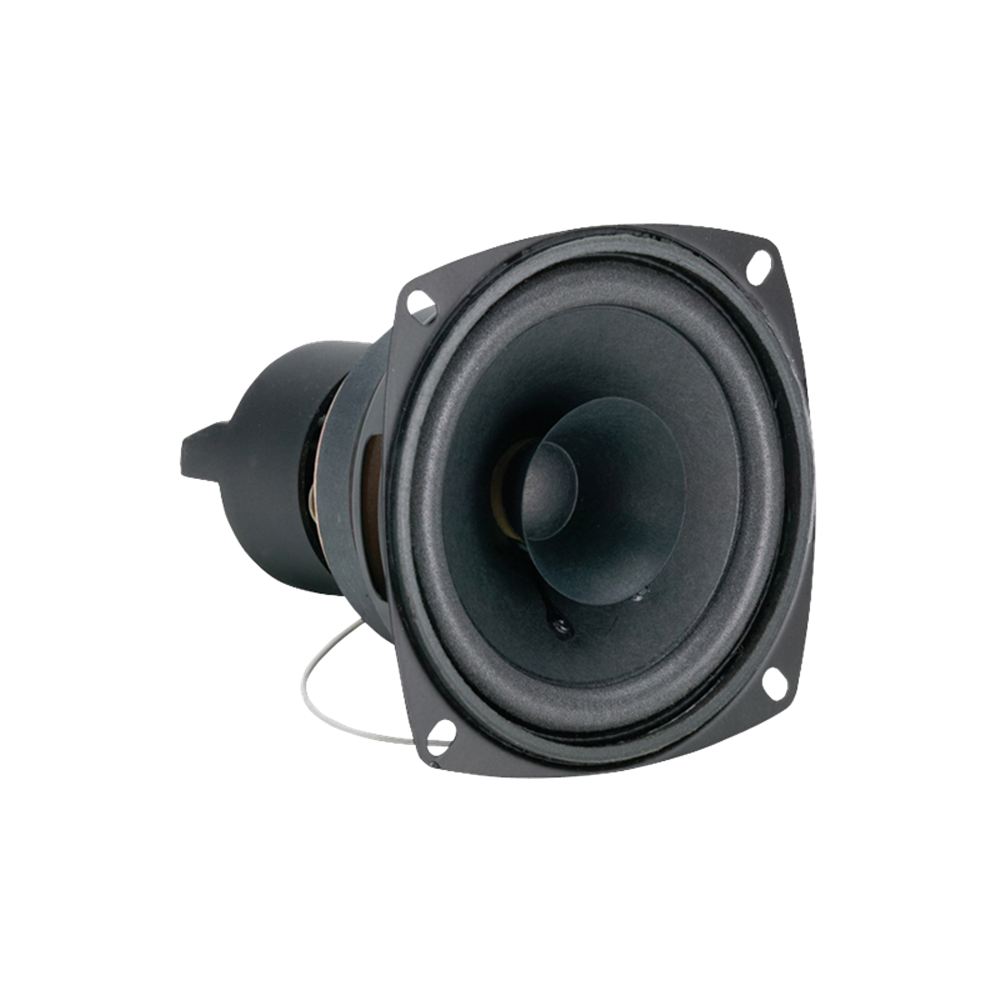

ATC5101-6

EVAC/EWIS Speaker

4" dual cone driver

The ATC5101-6 is high quality 4 inch surface mount ceiling speaker.Designed for the Evacuation and general PA market, the ATC5101-6 offers a 5 position terminal block, line supervisory capacitor and transformer cover as standard. It has a wide frequency response and extremely high sensitivity critical to these markets.

  • 4 inch dual cone driver
  • 100v tappings 5,2.5,1,0.5,0.33 watts
  • 92 dB 1 watt @ 1 meter
  • EVAC cap installed
  • Cutout diameter 115mm
  • Depth 110mm

Specifications

  • Form Factor: Ceiling
  • Max Continuous Power: 5W
  • Tappings: 5W-2.5W-1W-0.5W-0.33W
  • Max Program Power: 10W
  • IP Rating: No
  • Max Peak Power: 20W
  • EASE Model: No
  • SPL 1W/1m: 92dB
  • Powered: Passive
  • Max SPL RMS: 99dB
  • Driver Diameter: 4"
  • Max SPL Peak: 105dB
  • Colour: White
  • Frequency Response (-3dB): 75Hz - 20kHz
  • Warranty: 5 years
  • Dispersion: 160deg
  • GTIN EAN: 9323383010390

Product Documents

No documents available
