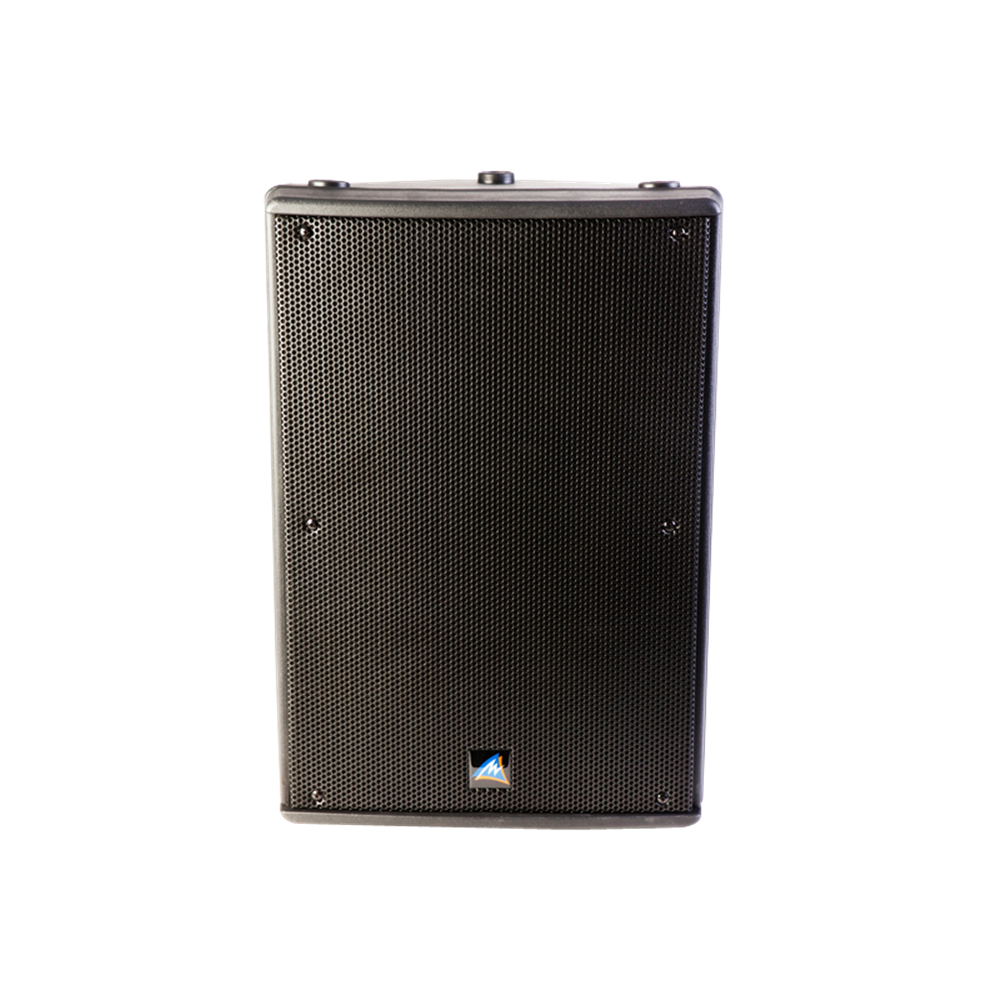

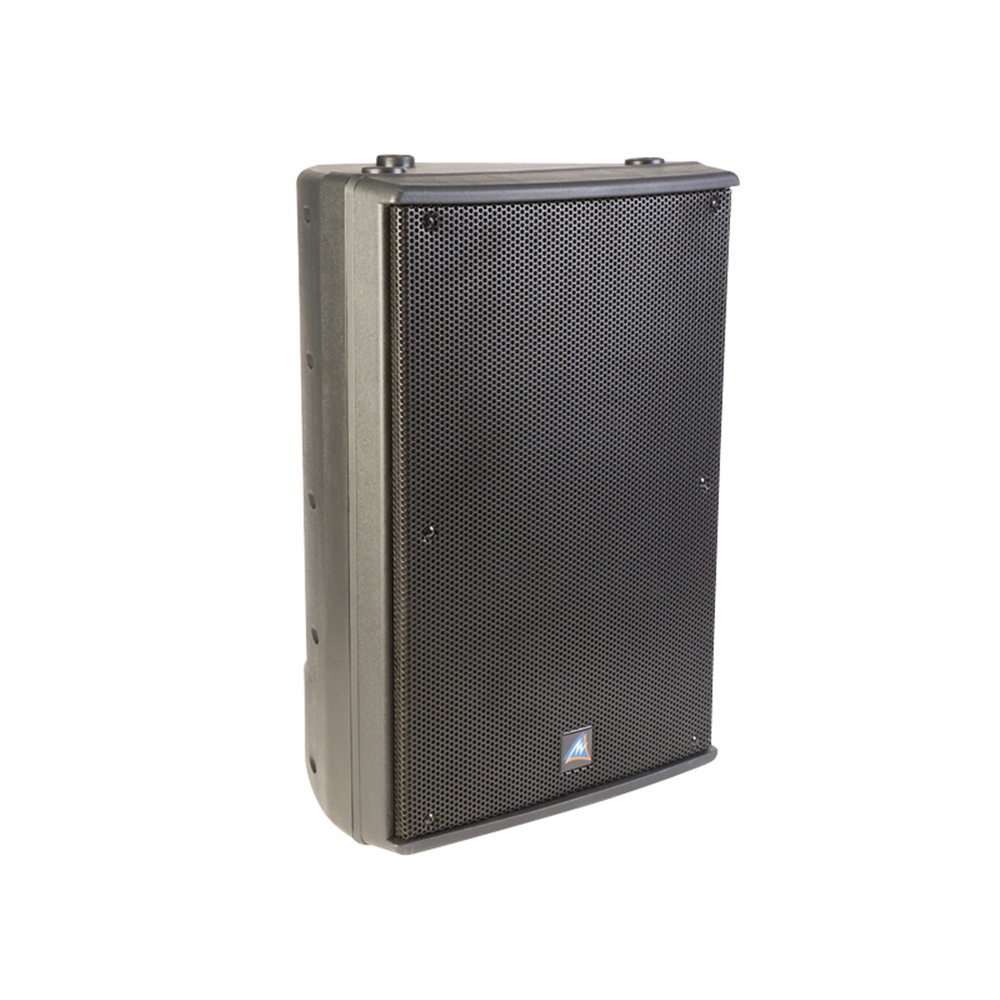

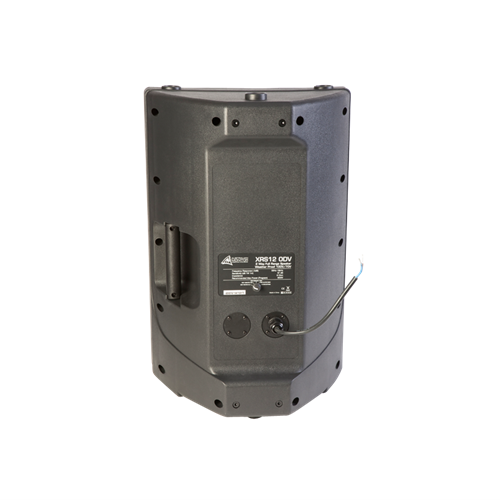

XRS12ODV

12 inch Passive Speaker
IP44 Rated, 300W, Black

The Australian Monitor XRS passive and powered injection moulded speaker enclosures are renowned for their excellent sound quality, reliability and excellent value for money. The latest addition to the XRS range is the XRS12ODV, which features an IP44 rating for outdoor use as well as a multi tap constant voltage transformer for use in larger articulated constant voltage systems such as sporting arenas. The XRS outdoor/voltage speaker range bring the legendary XRS sonic performance to the weather proof and constant voltage speaker market.

12" Woofer, 2" HF compression driver

• • 90°x 90° dispersion pattern
• Inbuilt transformer with tappings at 37.5, 75, 150 and 300 watts @ 70V/100V and 8 ohm bypass.
• Frequency response 50 Hz - 18 kHz
• Max SPL 127 dB
• Sensitivity at 1w/1m is 97 dB
• IP44 rated
• Captive flylead
• 6 x M8 eye bolt points

Specifications

• Form Factor: Box
• Max Continuous Power: 300W
• Tappings: 300W-150W-75W-37.5W-8 Ohm
• Max Program Power: 600W
• IP Rating: IP44
• Max Peak Power: 1200W
• EASE Model: No
• SPL 1W/1m: 97dB
• Powered: Passive
• Max SPL RMS: 122dB
• Driver Diameter: 12" & 2"
• Max SPL Peak: 128dB
• Colour: Black
• Frequency Response (-3dB): 50Hz - 18kHz
• Warranty: 5 years
• Dispersion: 90 x 90deg
• Product Dimensions: (W x D x H) 415mm x 382mm x 620mm
• Shipping Dimensions: (W x D x H) 465mm x 435mm x 680mm
• Net Weight: 22 Kg
• Shipping Weight: 24 Kg
• GTIN EAN: 9323383018990
