Dynaudio Professional

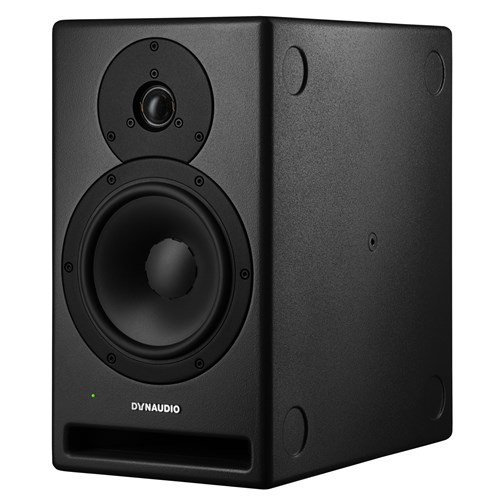

Dynaudio CORE 7 - Single, 2-Way Nearfield Monitor, with 7" Woofer - Black

Product Code: DY-CORE-7

Brand
Dynaudio
RRP $3,869.50


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Dynaudio Professional
Size 7"
Speaker Type Studio Monitor
  • Details
  • Downloads

Core 7 is the most compact model in our range of high-end professional reference monitor systems. This no-compromise two-way design features two class-D amplifiers (one 500W amp for the mid/woofer and a 150W unit for the tweeter), plus the best of modern DSP technology and a flat bass response down into to 44Hz with -6dB at 38Hz.

It’s been specifically designed and engineered to meet the challenges of high-demand environments that recording engineers, mixers, producers, and editors work in all day, every day.

Technical specifications

Specification sheet for Core part 2
Tweeter:1in
Midrange:N/A
Woofer:7in
Inputs:Analogue and AES3 digital inputs
Maximum 24-bit/192 kHz:Depending on input signal
Maximum SPL:112 dB @ 1 m anechoic, 118 dB half space
Specification sheet for Core part 1
Crossover frequency:2300 Hz
Frequency response:38 Hz – 24 kHz - 6 dB
Frequency response:44 Hz – 21 kHz +/- 3 dB
Principle:Front-loaded bass reflex
Amplifiers:Pascal Class-D. HF 150 W / LF 500 W
Dimensions (WxDxH):220 x 370 x 390 mm (8 11/16 x 14 5/8 x 15 3/8in)
Weight:14.7 kg (32.4 lb)
