2017.9224 RetailPlayer S400 NoPSU Package

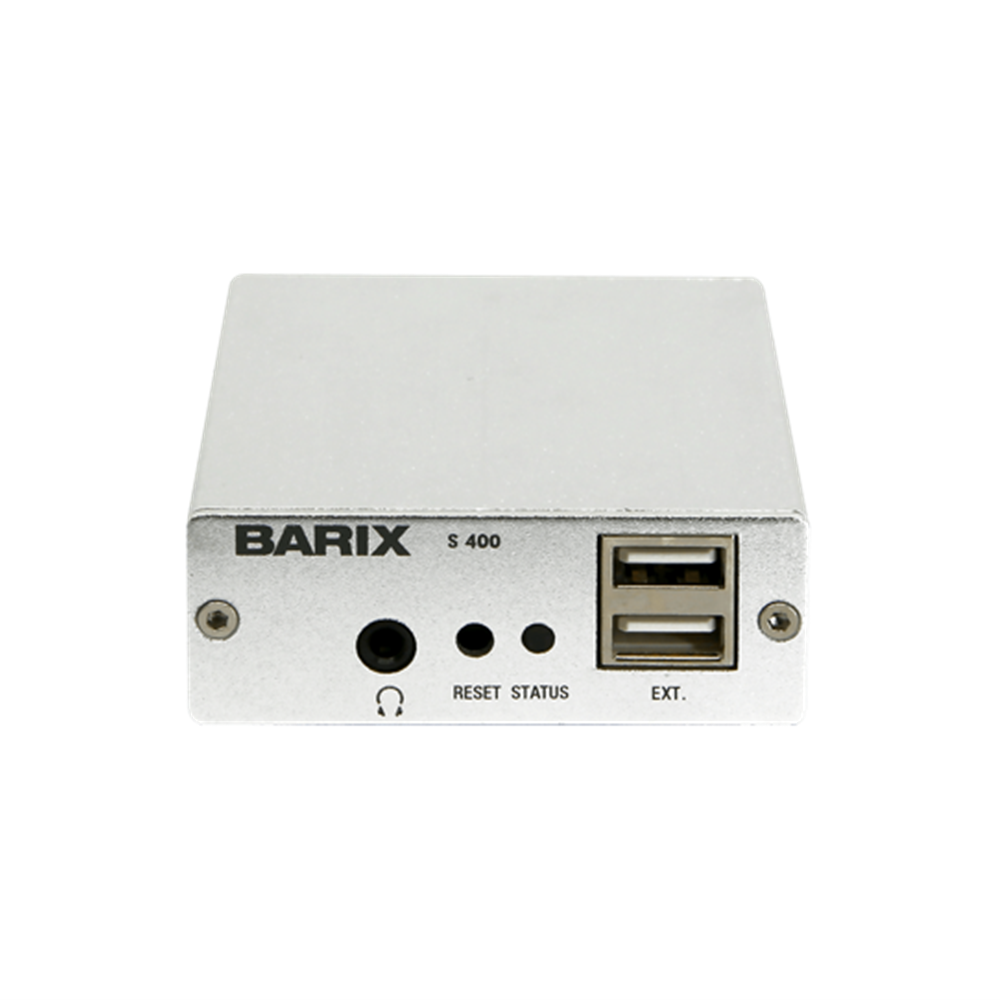

RetailPlayer S400
Sophisticated background music player for retail applications.

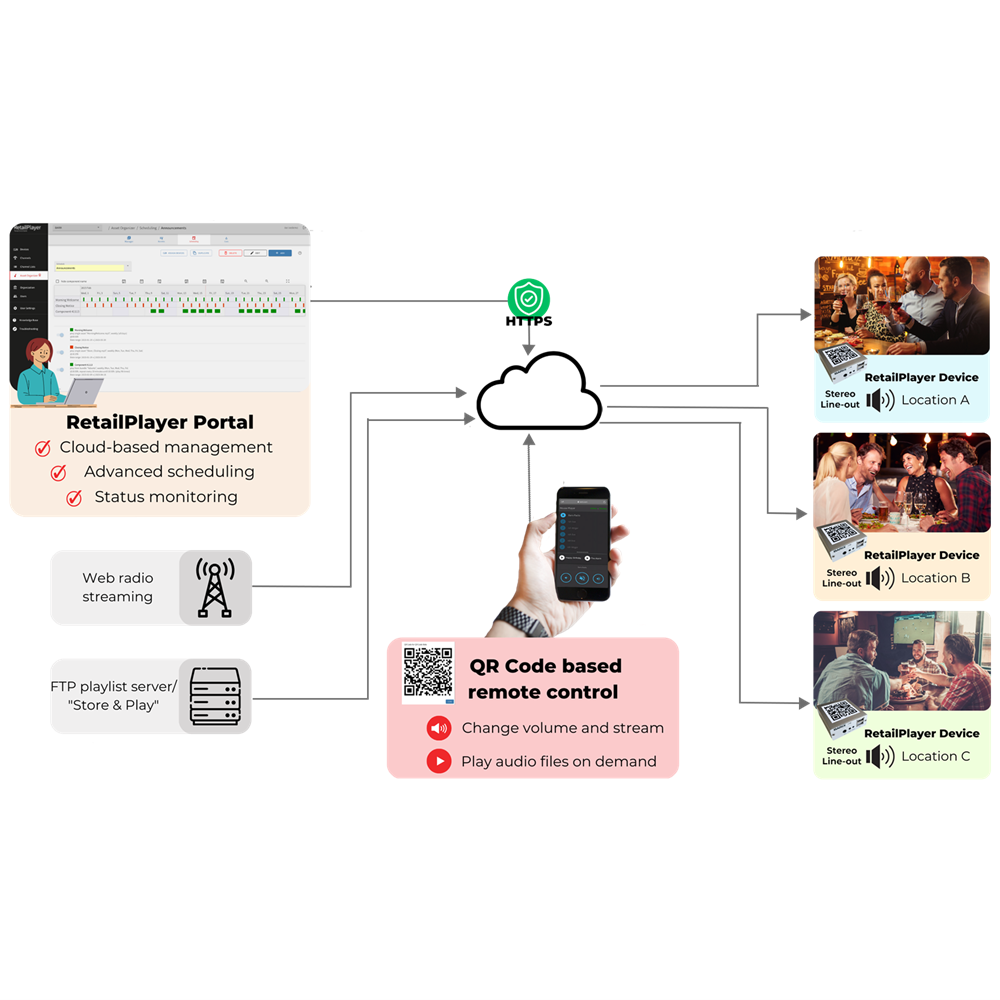

The RetailPlayer is the best valued streaming player for multi-channel streaming of background music. It is a rock-solid metal device that needs little maintenance and can be installed almost everywhere by anyone. A wide variety of Audio Formats from independent streaming services are supported and played on a standard Line Level output. The online management portal allows for convenient control of the playout and supports status monitoring and firmware management for every device. Fallback Stream and local Failover Playlist are also supported in stand-alone operation. Barix Products are developed in Switzerland.

• Operation System: Embedded Linux based on Yocto
• Network Interfaces:
  1 x Ethernet (RJ45) Interface
  IPv4, IPv6 capable
  10/100 fdx/hdx, auto negotiation
  Protocols supported:TCP/IP,RTP,HTTP(S),DHCP, DNS, NTP
• Audio Interface:
  Line-Out 3.5 mm (1/8 inch) TRS connection
  Output level software controllable
• Failsafe Features
  Web interface for configuration
  2 x Multicolor LED Status indicators
  Reset & Factory Defaults Button
• Audio Formats
  MP3 CBR/VBR, up to 320 kbps, 8..48 kHz
  sample freq.
  AAC-HE (AAC, AAC plus, AAC plus V2)
  PCM linear 16bit @44.1 kHz
  FLAC, WAV, OGG Vorbis
  Opus
• CPU / Memory
  Barix IPAM40x Processor Module
  Quad-Core ARM Cortex™ -A7
  256MB DDR3 SDRAM
  16MB SPI Flash
  32GB SD-Card Flash
• User Interface:
  Web interface for configuration
  RetailPlayer Management Portal
  2 x Multicolor LED Status indicators
  Reset & Factory Defaults Button
• Power Requirements: 5VDC, 10W maximum on 3.5×1.35mm barrel connector (center positive)
• MTBF: > 200’000h
• Measurement / Mechanics: 3.07” x 2.76” x 1.02” / 78mm x 70mm x 26mm
• Weight: 140g
