Professional Series 8" Surface Mount Speaker

8" Surface Mount

Sonance Professional Series PS-S83T Surface-Mount Speaker features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.

The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.

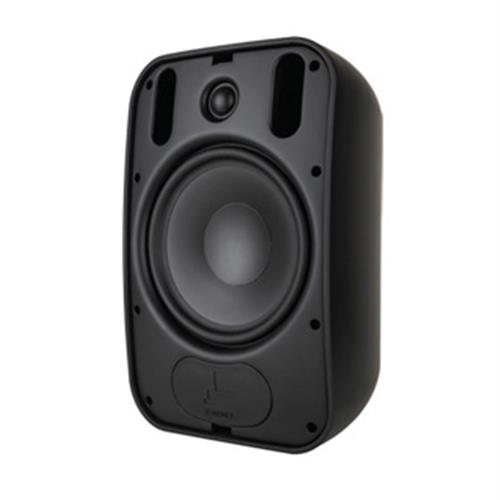

A high-excursion 8” polypropylene woofer delivers effortless low bass extension, that is equal or better to systems using dedicated subwoofers, while the chambered 1” soft dome tweeter provides accurate high-end detail and exceptional coverage.

A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

Additionally, the Sonance PS-S83T is certified for is certified for UL 1480 (UEAY) and 2239.

Available in either black or white (paintable).

Specifications

• Frequency Range (-10dB) - 41Hz – 25kHz
• Frequency Range (-3dB) - 55Hz – 20kHz
• Power Capacity - 160 Watts Continuous Program Power | 80 Watts Continuous Pink Noise
• Nominal Sensitivity - 90dB
• Nominal Coverage Angle - 90 degrees x 90 degrees coverage
• Directivity Factor (Q) - 7.6
• Directivity (DI) - 8.1dB
• Rated Maximum SPL - 110dB @ 1 meter (3.3 feet) average, 116dB peak
• Rated Impedance - 8 Ohms nominal, 6 Ohms minimum
• Transformer Taps - 60W, 30W, 15W (7.5W 70V)
• Crossover Point - 2750Hz

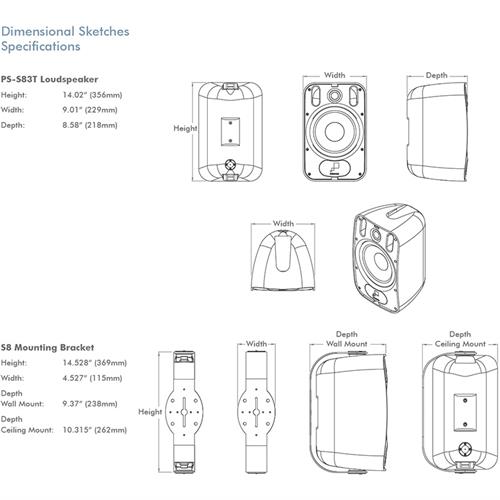

• Overall Dimension - 14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)
• Net Weight - 10 lbs (4.53kg) each
• Shipping Weight - 25 lbs (11.34kg) pair
• Unit of Measure - Pair (Single upon request)
• Color - Black or White
• Grille - Powder Coated Aluminum Friction Fit
• LF Driver - 8” (203mm) Polypropylene Cone, Butyl Rubber Surround
• HF Driver - 1” (25mm) Cloth Dome, Ferrofluid cooled
• Input Connectors - Front-mounted four pin, Euroblock with loop output connections
• Safety Agency - UL 1480, UL 2239
• Mounting Bracket - U-Bracket with Sonance FastMount
• Environmental & UV - Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating
