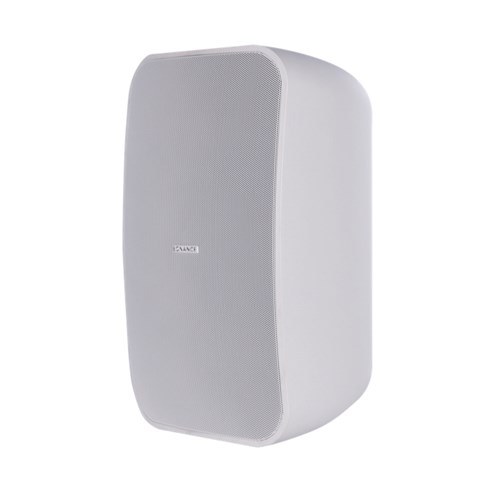

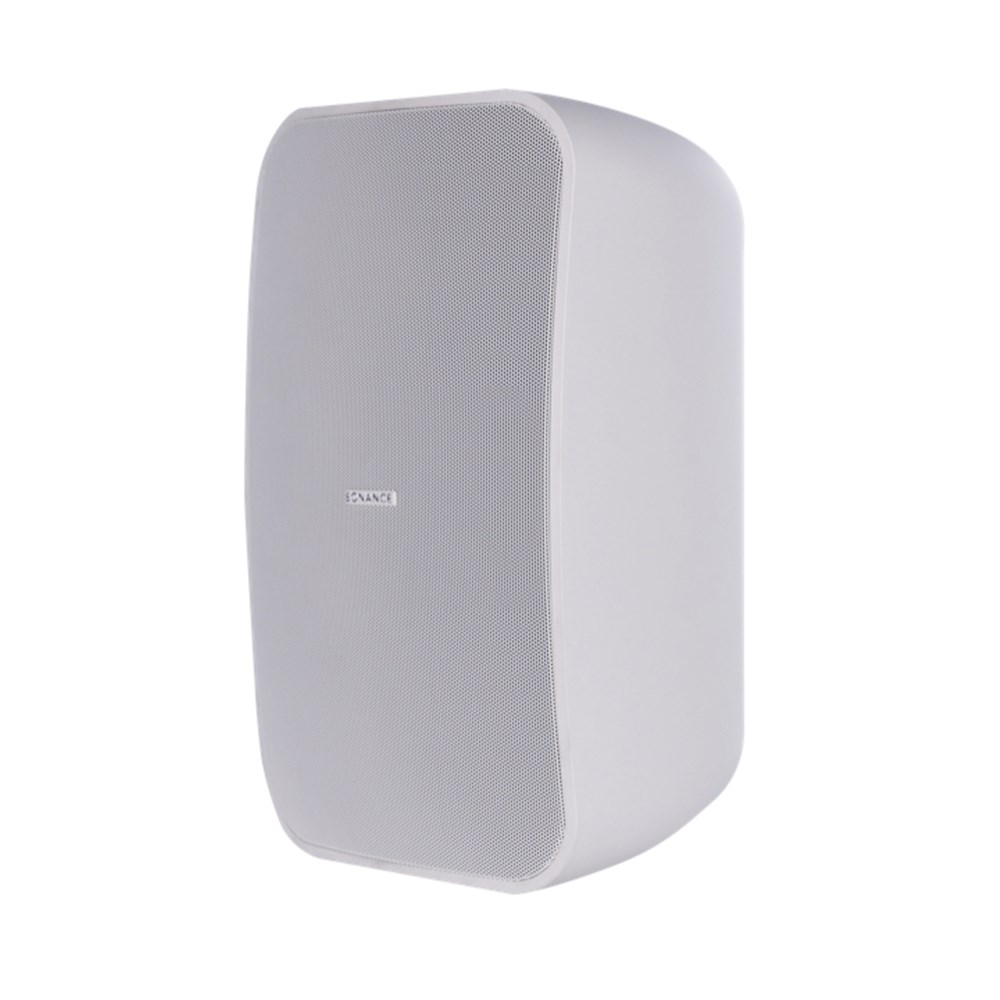

PS-S63T 6" SURFACE MOUNT SPEAKER

Professional Series 6" Surface Mount MKII Loudspeaker
Sonance Professional Series PS-S63T MKII Surface-Mount Loudspeakers feature the Patented FastMount bracket and front cable connection to speed up the installation process and provide a clean appearance.

The IPX4 rated construction features a high-impact, extreme temperature resistant cabinet and corrosion-resistant powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.

A high-excursion 6.5” polypropylene woofer delivers effortless low bass extension, that exceeds many larger competitive products, while the chambered 1” soft dome tweeter provides accurate high-end detail and exceptional coverage.

A low saturation transformer delivers un-compromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

Additionally, the Sonance PS-S63T MKII is UL 1480 (UEAY) and UL 2239 Listed.

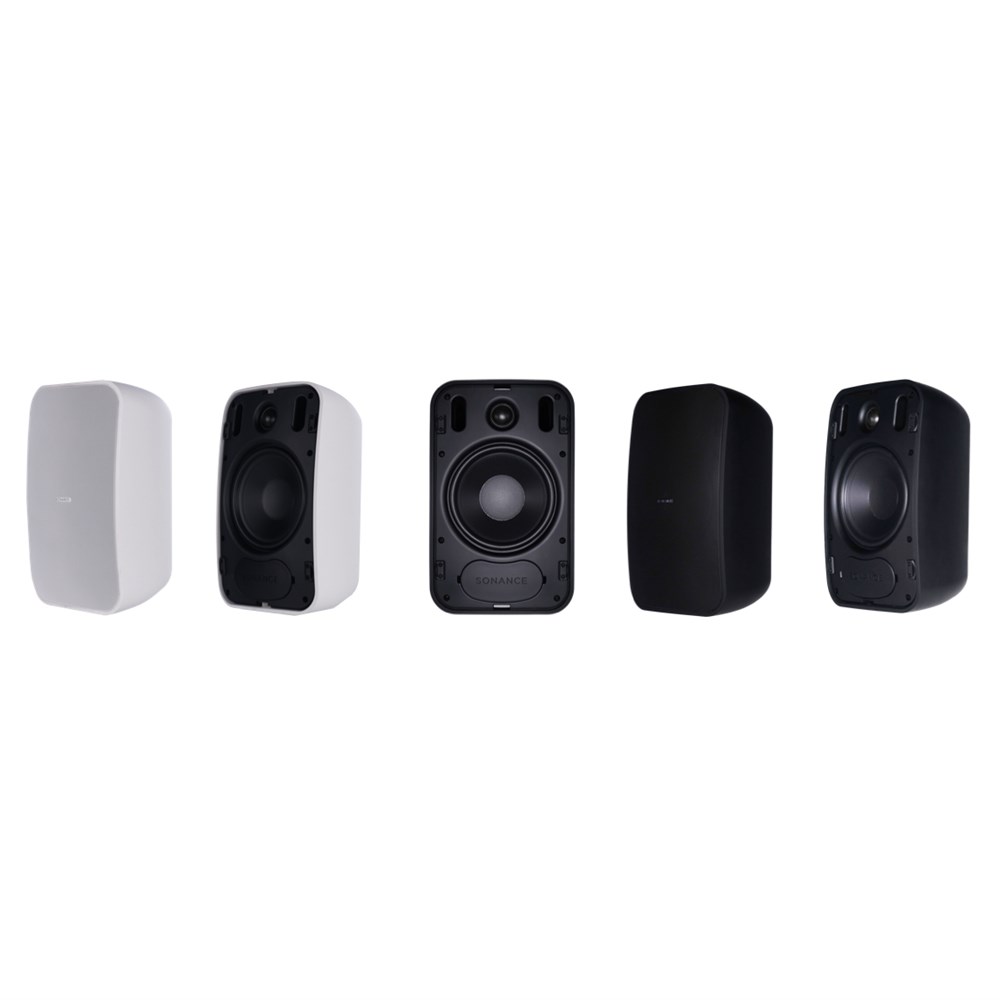

Available in either black or white (paintable).

Specifications

• UOM: Each
• Frequency Range (-10dB): 49Hz – 25kHz
• Frequency Range (-3dB): 65Hz – 20kHz
• HF Driver: 1” (25mm) Cloth Dome, Ferrofluid cooled
• LF Driver: 6.5” (165mm) Polypropylene Cone, Butyl Rubber Surround
• Power Capacity:120 Watts Continuous Program Power, 60 Watts Continuous Pink Noise
• Nominal Coverage Angle: 90 degrees x 90 degrees coverage
• Rated Maximum SPL: 108dB @ 1 meter (3.3 feet) average, 116dB peak
• Nominal Sensitivity: 88dB
• Rated Impedance: 8 Ohms Nominal, 6 Ohms Minimum
• Transformer Taps: 70V: 60W, 30W, 15W and 7.5W; 100V: 60W, 30W and 15W
• Crossover Point: 2750Hz
• Safety Agency: UL 1480, UL 2239, NFPA 70
• Environmental & UV: Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating
• Input Connectors: Front-mounted four pin, Euroblock with loop output connections
• Mounting Bracket: U-Bracket with Sonance FastMount
• Grille: Powder Coated Aluminum Friction Fit

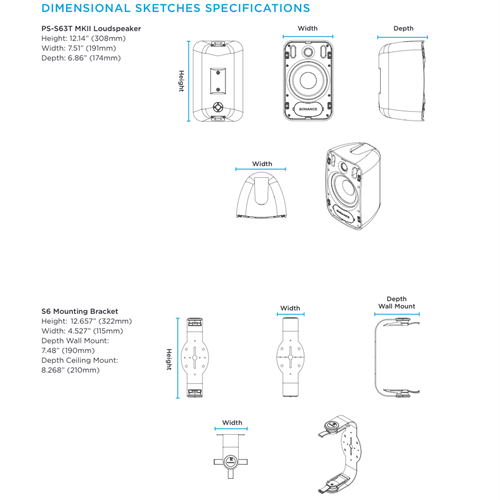

• Overall Dimensions: 12.14” Height x 7.51” Width x 6.86” Depth (309mm x 191mm x 174mm)
• Net Weight: 11.43 lbs (5.18kg) each
• Shipping Weight: 31.26 lbs (14.18kg) pair
• Colour: Black or White
