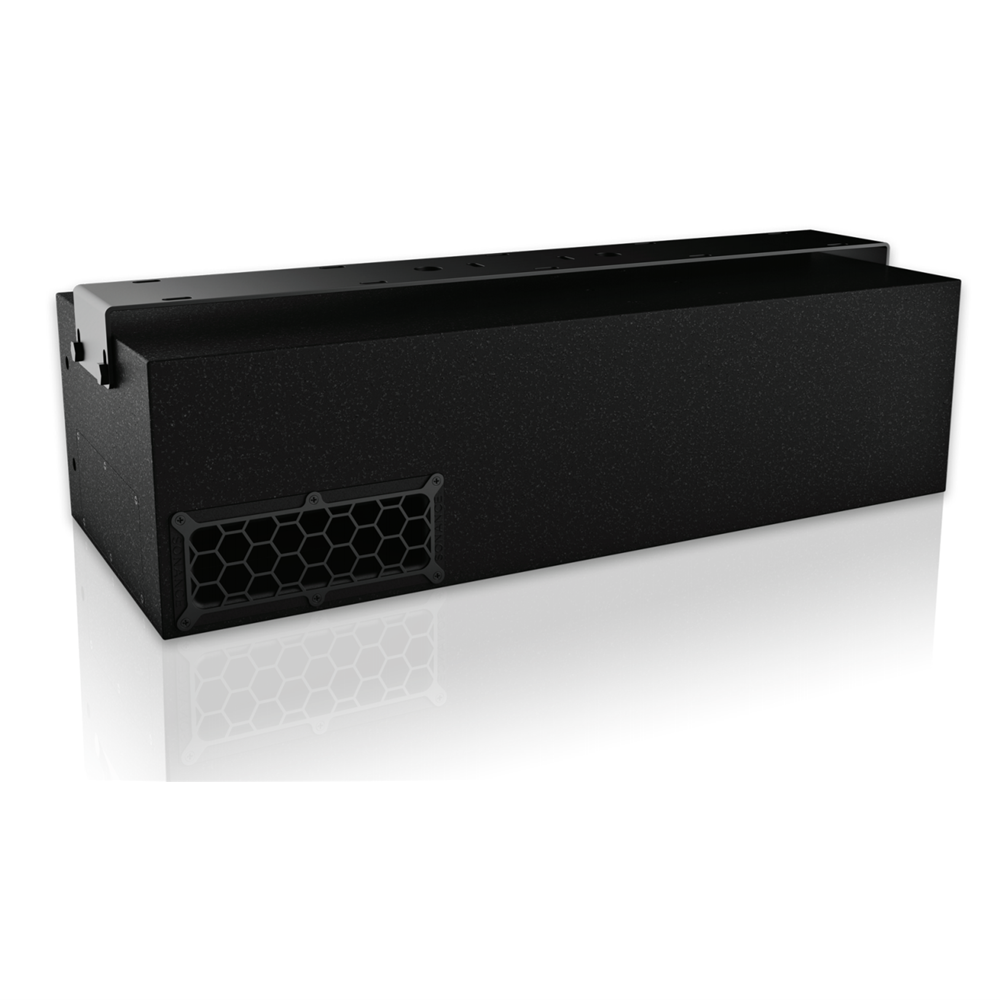

PS-S210SUBT Dual 10" Bandpass Subwoofer Sonance

Product Code: SO-40192

Brand
Sonance
RRP $3,155.00


Unit of Measure
EACH



5 Year
Technical Specifications
Brands Sonance
Series Professional Series
Size 2 x 10"
Speaker Type Subwoofer
  • Details
  • Downloads

DUAL 10" Bandpass Subwoofer

  • Woofer: Dual 10" (254mm) woven glass fiber cones with Butyl rubber surrounds
  • Frequency Range - 3dB: 44Hz - 132 Hz
  • Nominal Coverage : 180 degrees conical coverage
  • Power Handling RMS: 500 Watts Continuous Program Power | 300 Watts Pink Noise
  • Sensitivity: 94dB
  • Taps: 300W, 150W, (75W 70V), 4 Ohms nominal, 3.7 Ohms minimum
  • Termination: Four pin, Euroblock with loop output connections
  • Rated Maximum SPL: 121dB @ 1 meter (3.3 feet), 127dB peak
  • Suspension Points : 4 x M10 on two sides
  • Overall Dimensions Subwoofer (H x W x D): 228mmx 838mm x 350mm
  • Overall Dimensions with optional bracket attached - Position 1 : 228mm x 860mm x 373mm
  • Overall Dimensions with optional bracket attached - Position 2 : 251mm x 860mm x 350mm
  • Net Weight: 27.7 kgs
  • Cabinet : Laminated plywood

The built-in low pass filter, allows the subwoofer to be driven on the same feed as the other full-range loudspeakers in a system, negating the need for additional amplifier channels and DSP.

The PS-S210SUBT utilizes all-new 2 x 10” (254mm) low profile, high excursion drivers, that were specifically engineered in-house by Sonance for this product. The polyurethane-coated, laminated-plywood enclosure features an extremely shallow design which allows it to be used in a wide range of specialty applications such as under restaurant booths or banquets (using the included feet), or mounted onto the side of rafters, on walls or under ceilings (with the optional C-bracket).

One of the most unique and versatile features of the PS-S210SUBT is the ability to port either from the front or the side of the enclosure. The installer simply unscrews the port assembly from the front of the cabinet, and then unscrews a blanking plate from the side, and swaps them. This will allow the product to be used in a variety of installation locations, while always ensuring the optimum sonic performance is achieved.



DIMENSIONS
  • PS-S10SUBT
  • SKU#: 40192
  • Width: 33” (838mm)
  • Height: 8.98” (288mm)
  • Depth: 13.78” (350mm)


TECHNICAL SPECIFICATIONS

  • Frequency Range: (-10dB) 34Hz – 155hz
  • Frequency Range: (-3dB) 44Hz – 132Hz
  • Power Capacity: 500 Watts Continuous Program Power | 300 Watts Continuous Pink Noise
  • Nominal Sensitivity*: 94 dB
  • Nominal Coverage Angle: 180 degrees conical coverage
  • Rated Maximum SPL*: 121dB @ 1 meter (3.3 feet) average, 127dB peak
  • Rated Impedance: 4 ohms nominal, 3.7 ohms minimum
  • Transformer Taps: 300W, 150W, 75W and (37W @70V)
  • Crossover Point: 150Hz low pass filter, 12dB/octave
  • Transducers: LF Driver: Dual 10” (254mm) Woven glass fiber cones, Butyl rubber surrounds
  • Input Connectors: Four pin Euroblock with loop output connections
  • Included Accessories: Euroblock connector, terminal cover & screws, installation manual, rubber feet
  • Overall Dimension HxWxD: 8.98” x 33.00” x 13.78” (228mm x 838mm x 350mm)
  • Net Weight: 61 lbs (27.7kg) each
  • Shipping Weight: 75.8 lbs (33.0kg) each
  • Optional Accessories: C-Bracket (PN: 40194)
  • Included Accessories: Euroblock connector, (4) M10 mounting bolts, installation manual, rubber feet
