Professional Series 8" Pendant Woofer

8" Pendant Woofer

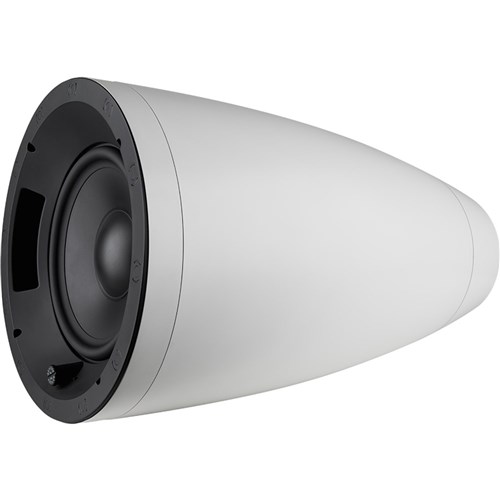

Sonance Professional Series PS-P83WT is a 70V/100V/8 Ohm selectable Pendant Speaker that utilizes a minimalistic design similar to pendant lighting to blend discreetly into the environment. It takes advantage of the same one-piece grille design as the In-Ceiling Speakers to deliver consistent sight lines when installed in the same space.

The integrated top cover hides the hanging hardware and wiring connector.

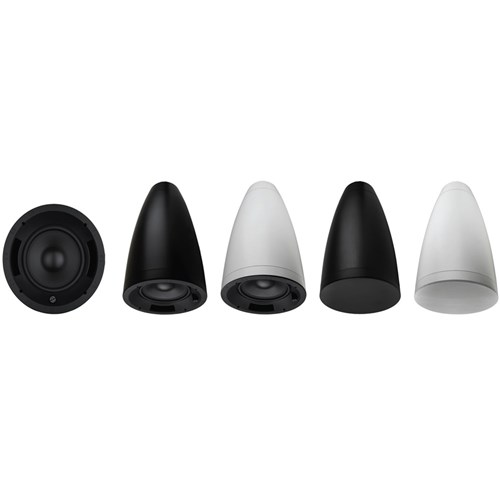

An ultra-high-excursion 8” polypropylene woofer delivers effortless and impactful low bass extension and augmentation, at any sound pressure level, making it the perfect partner for the PS-P43T and PS-P63T Pendant Speakers.

A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

Additionally, the Sonance PS-P83WT is certified for UL 1480 and UL 2239.

Available in either black or white (paintable).

Specifications

• Frequency Range (-10dB) - 32Hz – 300Hz
• Frequency Range (-3dB) - 50Hz – 150Hz
• Power Capacity - 200 Watts Continuous Program Power | 125 Watts Continuous Pink Noise
• Nominal Sensitivity - 89dB
• Nominal Coverage Angle - 180 degrees conical coverage
• Directivity Factor (Q) - N/A
• Directivity (DI) - N/A
• Rated Maximum SPL - 110dB @ 1 meter (3.3 feet) average, 116dB peak
• Rated Impedance - 8 Ohms nominal, 6 Ohms minimum
• Transformer Taps - 120W, 60W, 30W (15W 70V)
• Crossover Point - 150Hz

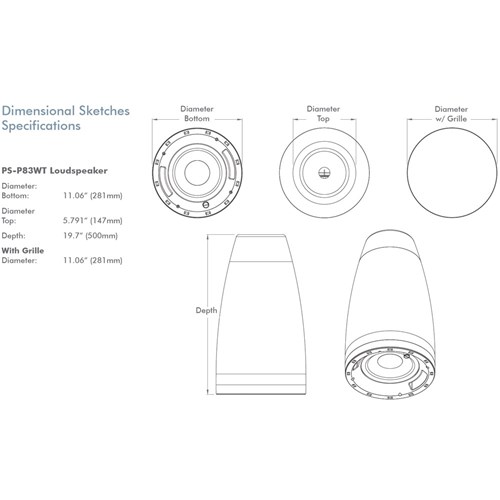

• Overall Dimension - 11.06” Diameter x 19.7” Depth (281mm x 500mm)
• Shipping Weight - 18 lbs (8.61kg) each
• Unit of Measure - Each
• Color - Black or White
• Grille - Bezel-less, powder coated, magnetically retained grille
• LF Driver - 8” (203mm) Polypropylene Cone, Butyl Rubber Surround
• HF Driver - N/A
• Input Connectors - Four pin, Euroblock with loop output connections
• Safety Agency - UL 1480, UL 2239
• Suspension Points - Five points, top mounted
• Supplied Hanging Hardware - 16.4’ (5m) Stainless Steel Cable with Snaphook x 2, Gripple Hanger x 2, Gripple Adjustment Tool x 1
