Professional Series 6.5" Pendant Speaker

6.5" Pendant

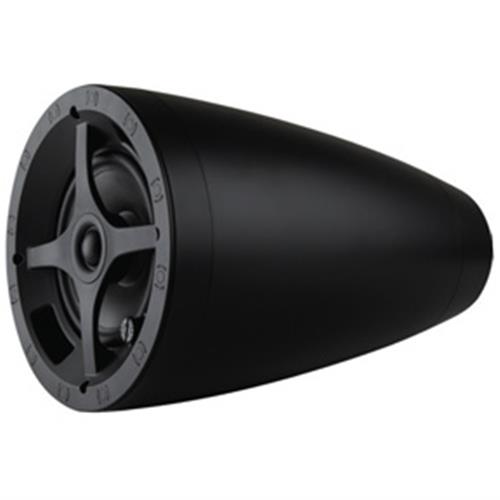

Sonance Professional Series PS-P63T is a 70V/100V/8 Ohm selectable Pendant Speaker that utilizes a minimalistic design similar to pendant lighting to blend discreetly into the environment. It takes advantage of the same one-piece grille design as the In-Ceiling Speakers to deliver consistent sight lines when installed in the same space.

The integrated top cover hides the hanging hardware and wiring connector.

A high-excursion 6” polypropylene woofer delivers effortless low bass extension, that exceeds most 8" competitive products, while the pivoting chambered 1” soft dome tweeter can be directed to ensure accurate coverage, when speaker positioning is compromised.

A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

Additionally, the Sonance PS-P63T is certified for UL 1480 and UL 2239.

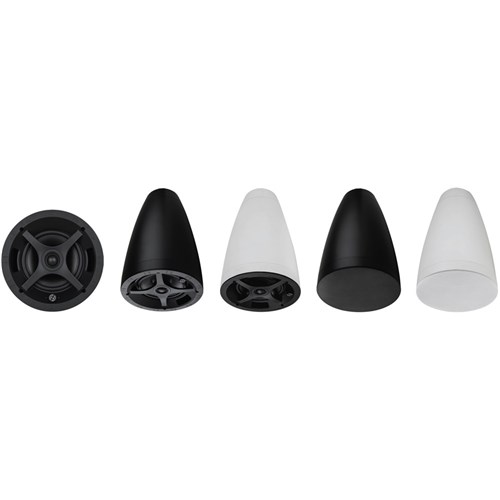

Available in either black or white (paintable).

Specifications

• Frequency Range (-10dB) - 49Hz – 25kHz
• Frequency Range (-3dB) - 65Hz – 20kHz
• Power Capacity - 120 Watts Continuous Program Power | 60 Watts Continuous Pink Noise
• Nominal Sensitivity - 88dB
• Nominal Coverage Angle - 120 degrees conical coverage
• Directivity Factor (Q) - 6.5
• Directivity (DI) - 7.9dB
• Rated Maximum SPL - 108dB @ 1 meter (3.3 feet) average, 116dB peak
• Rated Impedance - 8 Ohms nominal, 6 Ohms minimum
• Transformer Taps - 60W, 30W, 15W (7.5W 70V)
• Crossover Point - 2750Hz

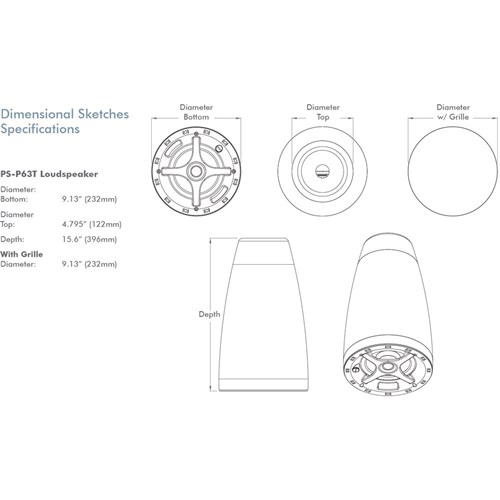

• Overall Dimension - 9.13” Diameter x 15.6” Depth (232mm x 396mm)
• Net Weight - 5 lbs (2.27kg) each
• Shipping Weight - 19 lbs (8.61kg) pair
• Unit of Measure - Pair (Single upon request)
• Color - Black or White
• Grille - Bezel-less, powder coated, magnetically retained grille
• LF Driver - 6.5” (165mm) Polypropylene Cone, Butyl Rubber Surround
• HF Driver - 1” (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
• Input Connectors - Four pin, Euroblock with loop output connections
• Safety Agency - UL 1480, UL 2239
• Suspension Points - Five points, top mounted
• Supplied Hanging Hardware - 16.4’ (5m) Stainless Steel Cable with Snaphook x 4, Gripple Hanger x 2, Gripple Adjustment Tool x 2
