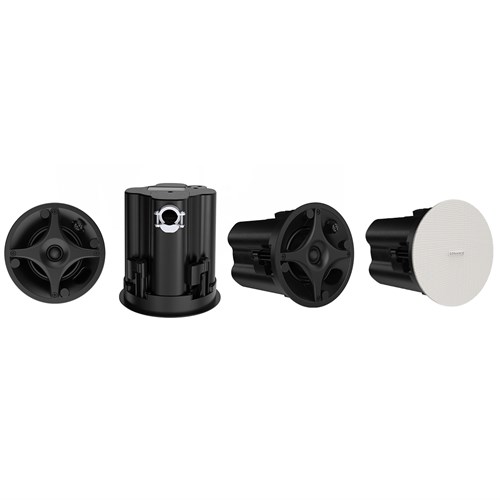

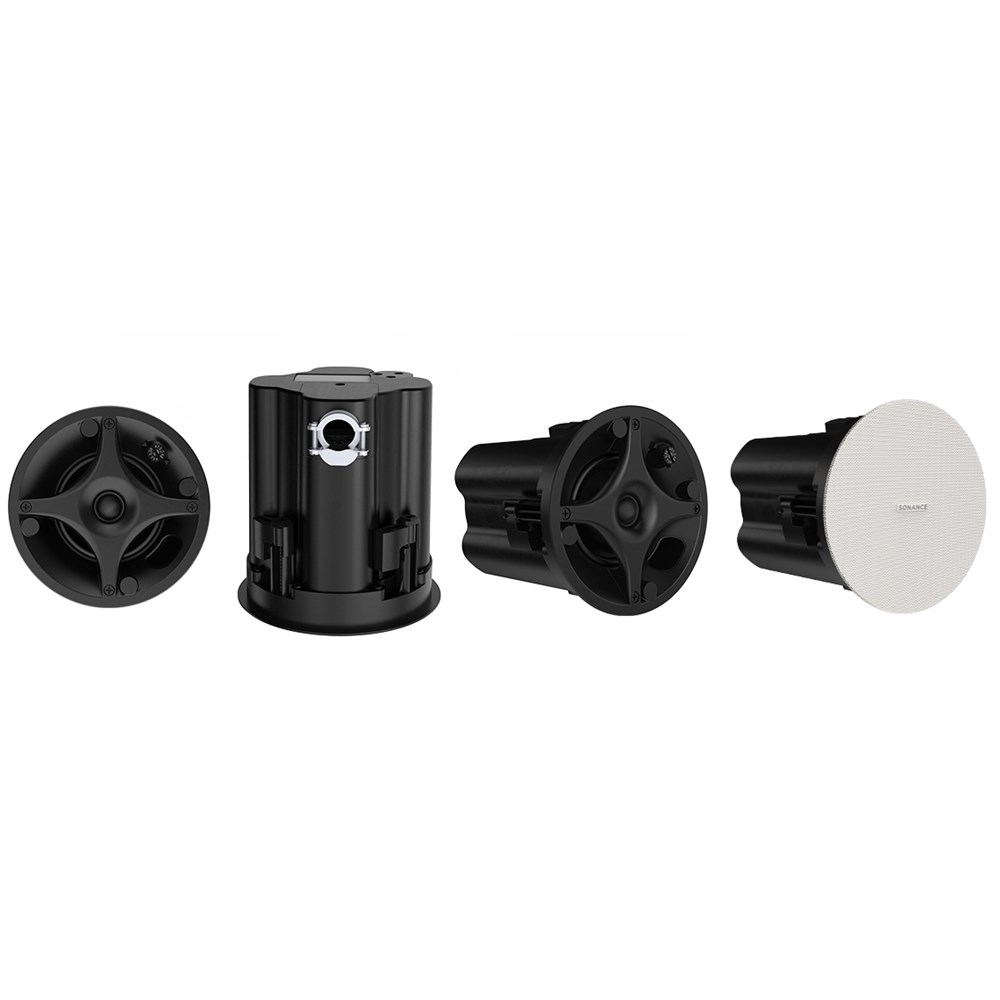

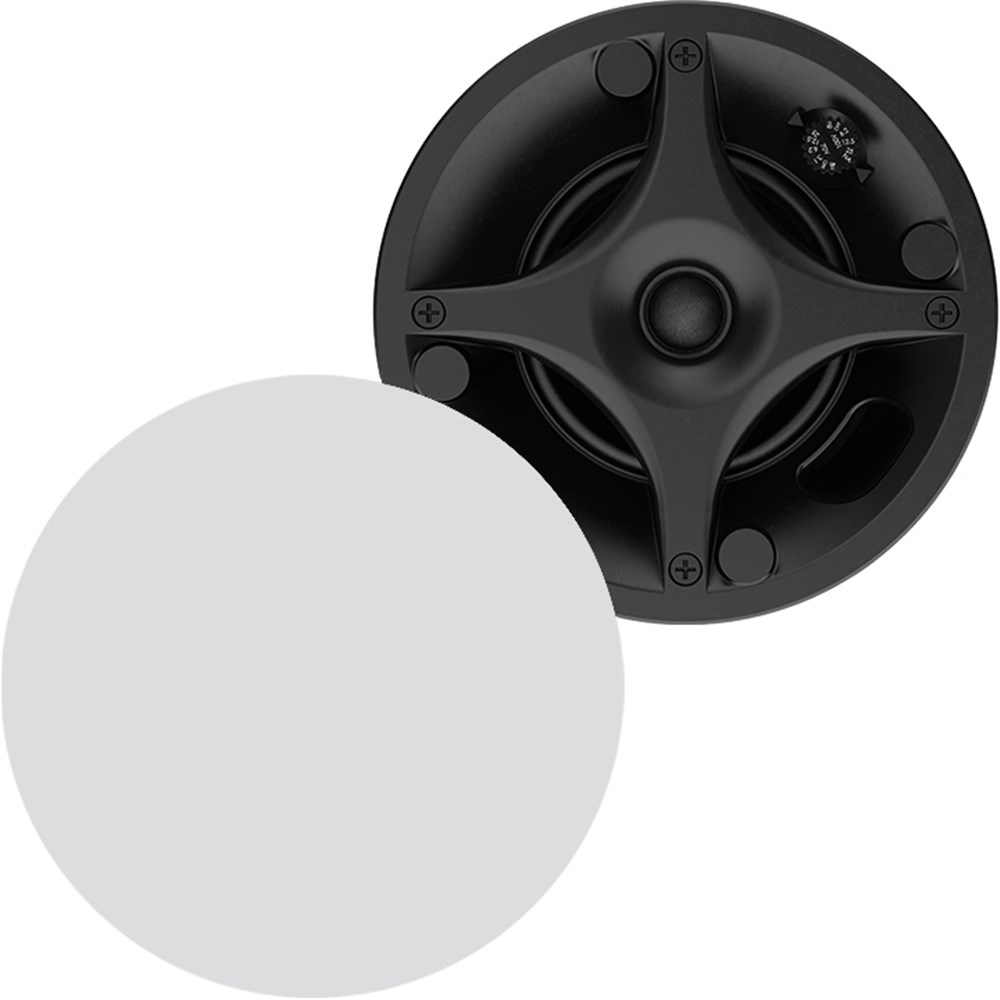

PS-C41RT 4" In-Ceiling Speaker

Sonance Professional Series PS-C41RT is a 70V/100V/8 Ohm selectable In-Ceiling Speaker that features a one-piece bezel-less grille that is magnetically secured and allows for a one-step painting process to simplify installation and minimize visual distraction.

The optional Square Grille Adapter allows speakers to match the aesthetic of square downlights and HVAC grilles to achieve continual sight lines.

The PS-C41RT features a 4” polypropylene cone, butyl rubber surround woofer combined with a coaxially mounted .75” cloth dome, ferrofluid cooled high tweeter.

The PS-C41RT features extremely flat response for natural musically and intelligibility for voice, making it perfect for shopping malls, airports, schools, corporate, government, or anywhere an affordably-priced, aesthetically pleasing, and excellent sounding loudspeaker is required.

A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.

Additionally, the Sonance PS-C41RT is certified for UL2043, UL1480, as well as EN54-24.

Specifications

• Frequency Range (-10dB): 70Hz – 25khz
• Frequency Range (-3dB): 95Hz – 20kHz
• Power Capacity: 60 Watts Continuous Program Power | 30 Watts Continuous Pink Noise
• Nominal Sensitivity: 87dB
• Nominal Coverage Angle: 120 degrees conical coverage
• Directivity Factor (Q): 7.6
• Directivity (DI): 8.1dB
• Rated Maximum SPL: 102dB @ 1 meter (3.3 feet) average, 108dB peak
• Rated Impedance: 8 Ohms nominal, 6 Ohms minimum
• Transformer Taps: 25W, 12.5W, 6.3W and (3.2W @70V)
• Crossover Point: 3000Hz
• Overall Dimensions: 6.3" x 6.5” deep (160mm x 165mm)
• Cut Out Dimensions: 5.875" Diameter (149mm)
• Net Weight: 5.0lbs (2.27kg) ea
• Shipping Weight: 21.55lbs (9.77kg) pair
• Unit of Measure: Pair (Single units upon request)
• Grille: Supplied with bezel-less white grille. Optional black grille, or square adapter with black or white grille
• LF Driver: 4" (100mm) Polypropylene Cone, Butyl Rubber Surround
• HF Driver: .75" (19mm) Cloth dome, Ferrofluid cooled
• Input Connector: Four pin, Euroblock with loop output connections
• Knockout: Single .75" with cable relief
• Safety Agency: UL 2043, UL 1480, NFPA 90A and NFPA 70, S7232, (EN54-24 coming soon)
• Ceiling Thickness Range: .125” - 2.0” (3mm - 50mm)
• Suspension Points: One, on top surface
• Included Accessories: Bracket/Tile Bridge
