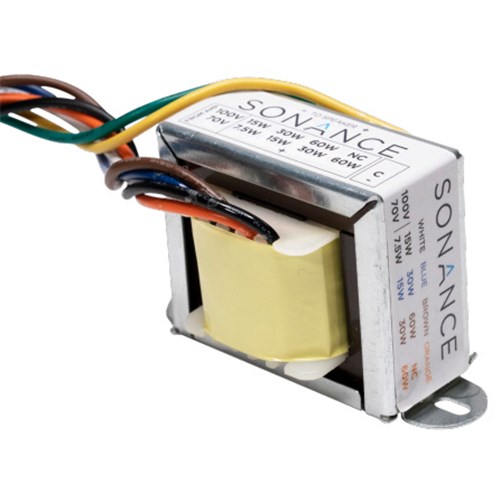

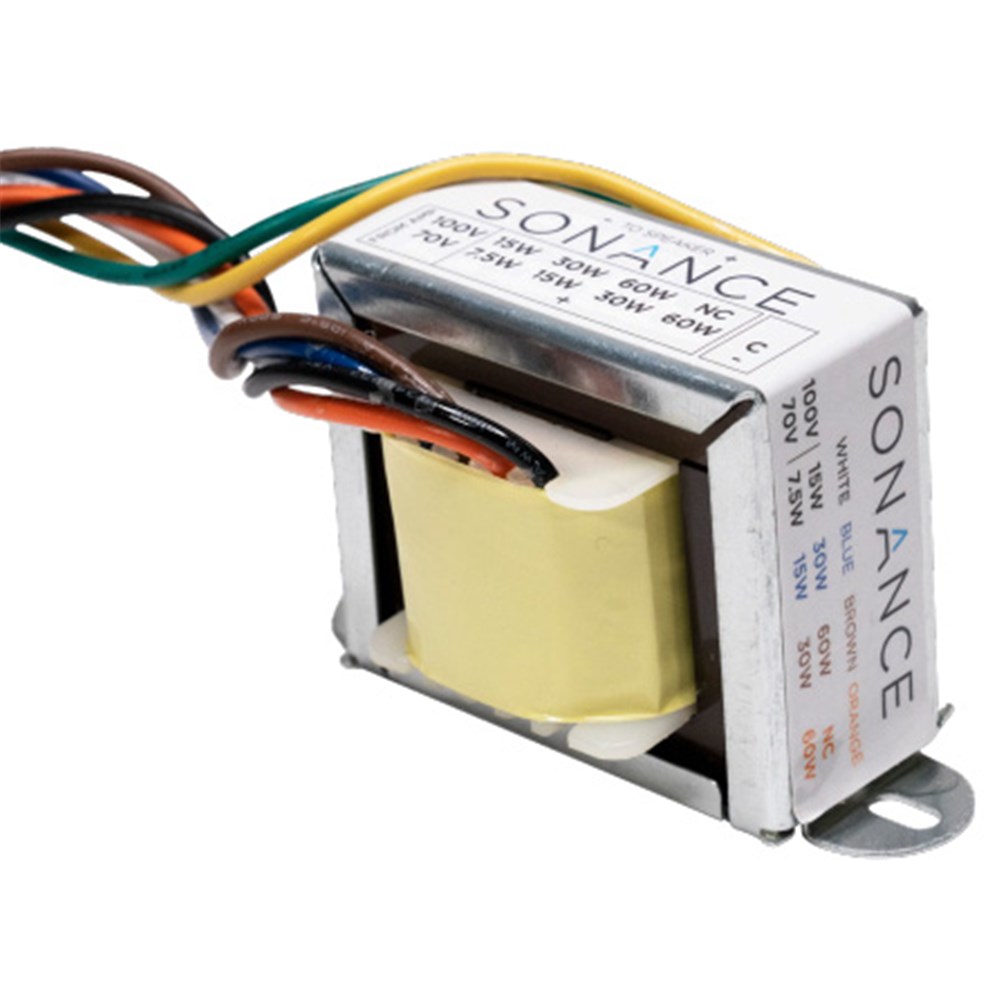

PS-60XF Laminated Core Tech Transformer 100v / 8 Ohm, Sonance

Product Code: SO-40195

Brand
Sonance
RRP $170.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Sonance
Brands Sonance Professional
Accessory Type Power Supply
  • Details
  • Downloads
  • Ordering

PROFESSIONAL SERIES PS-60XF 70V/100V TRANSFORMER

PS-60XF 70V/100V TRANSFORMER

The Sonance Professional Series PS-60XF Transformer allows any Sonance 8 Ohm speaker to be converted for 70V/100V installations, unleashing endless possibilities for commercial installations and residential outdoor applications. The PS-60XF has multiple output taps for different wattage requirements. The transformer is best used in projects where a Sonance 8 Ohm speaker is desired.

APPLICATIONS

  • Shopping Malls, Retail Spaces & Showrooms
  • Restaurants, Bars & Lounges
  • Galleries, Museums & Amusement Parks
  • Casinos, Convention Centers & Hotels
  • Houses of Worship & Educational Facilities
  • Sporting Facilities
  • Marinas
FEATURES AND BENEFITS
  • Sonance Laminated Core Transformer (SLCT): Full-fidelity performance in 70V/100V
  • Multiple tap settings: 60W, 30W, 15W or 7.5W (in 70V only)
  • Clearly labeled and color-coded wiring: Quick and easy installation
  • Versatile mounting: Tabs for screws or zip-ties
  • Compact form-factor: Can be installed into a third-party small weatherproof enclosure for outdoor applications
  • Compatible with Sonance’s 8 Ohm loudspeakers: Utilize the full range of high-performance and specialty in-wall and in-ceiling speakers
DIMENSIONS
  • PS-60XF
  • SKU#: 40195
  • Height: 2” (51mm)
  • Width: 3.26” (82.8mm)
  • Depth: 1.85” (47mm)

FEATURES AND BENEFITS
  • Sonance Laminated Core Transformer (SLCT): Full-fidelity performance in 70V/100V
  • Multiple tap settings: 60W, 30W, 15W or 7.5W (in 70V only)
  • Clearly labeled and color-coded wiring: Quick and easy installation
  • Versatile mounting: Tabs for screws or zip-ties
  • Compact form-factor: Can be installed into a third-party small weatherproof enclosure for outdoor applications
  • Compatible with Sonance’s 8 Ohm loudspeakers: Utilize the full range of high-performance and specialty in-wall and in-ceiling speakers

TECHNICAL SPECIFICATIONS

  • Primary Voltage: 70V
  • Power Rating: 60W
  • Primary Taps (70V): 7.5W, 15W, 30W, 60W
  • 100V Taps: 15W, 30W, 60W,
  • Secondary Impedance: 6 Ohms
  • Insertion Loss: 1.8dB
  • Frequency Response: 20Hz - 17kHz +/- 3dB
  • Lead Length: 24” (609.6mm)
  • Weight: 1.19 lbs (540gm)
  • Mounting Dimensions: 3.52” W x 1.85” D x 2.01” H (89.4mm x 47mm x 51mm)
  • Mounting Method: Surface mounted using built in mounting holes (hardware not included)
