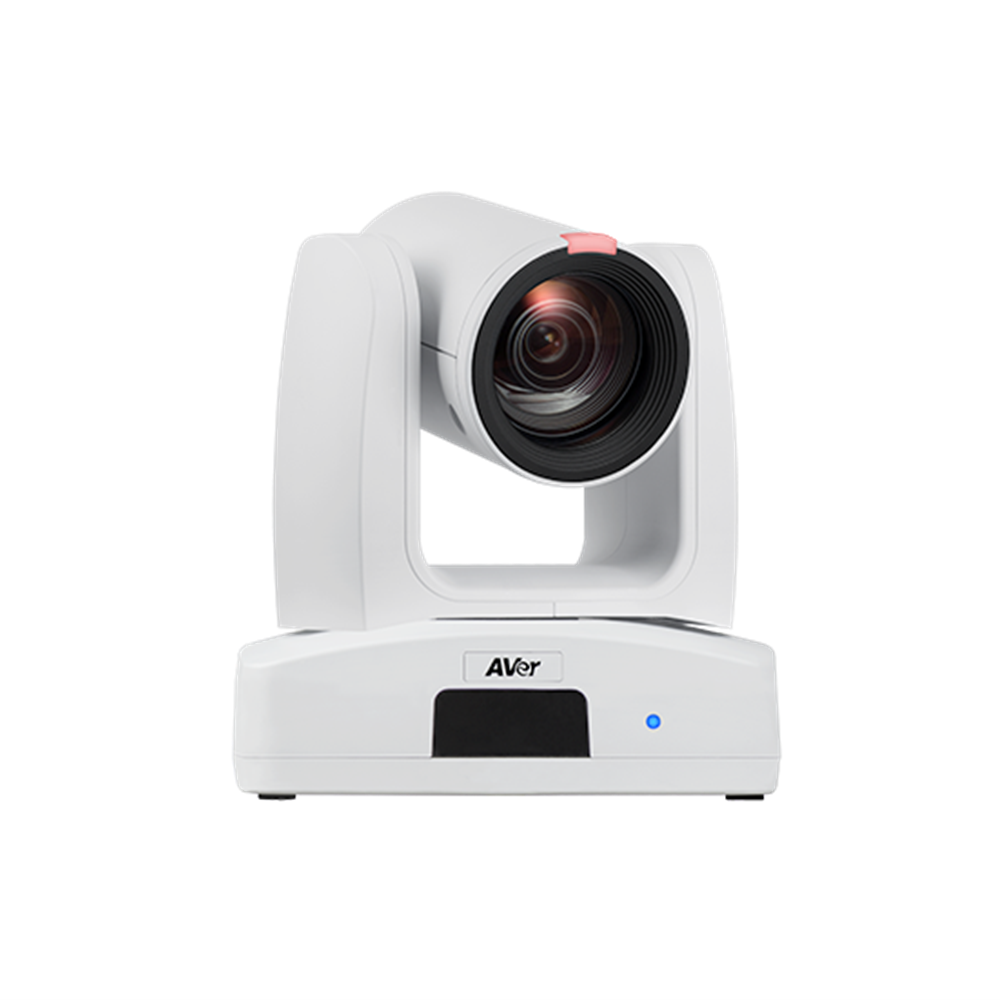

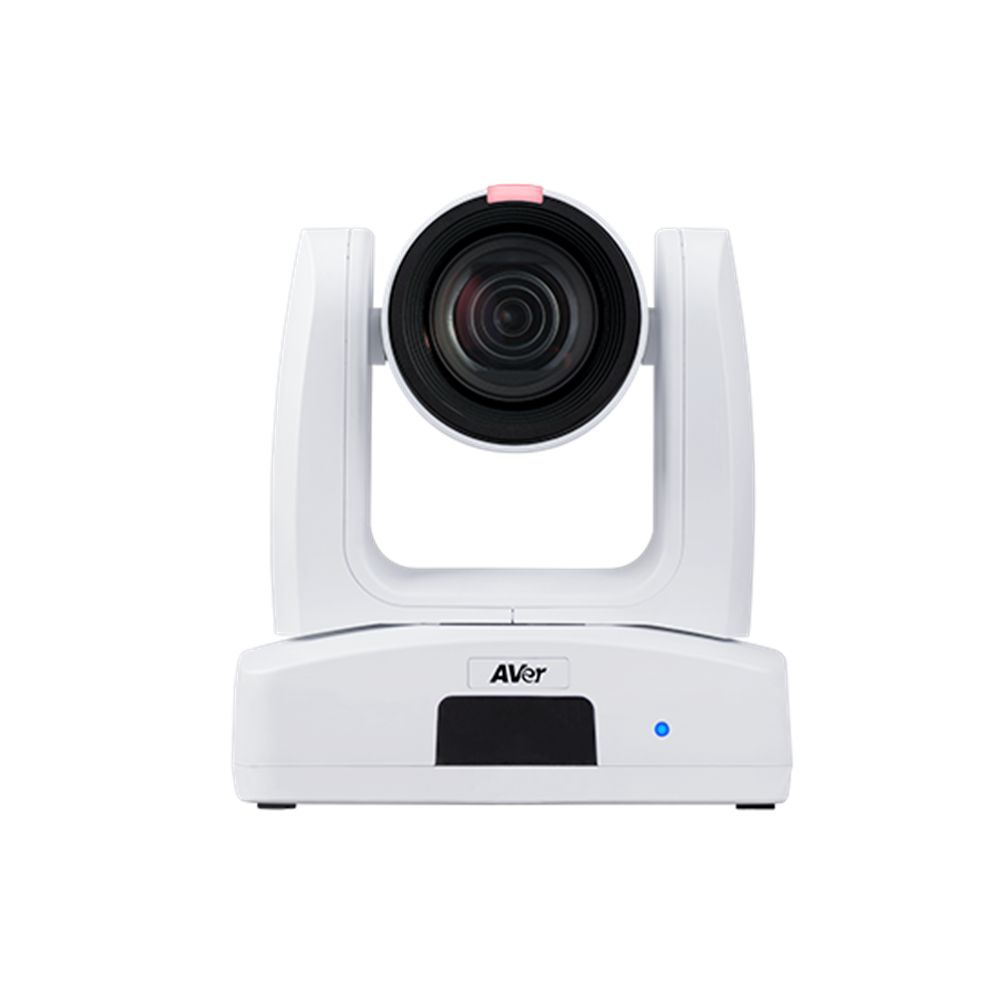

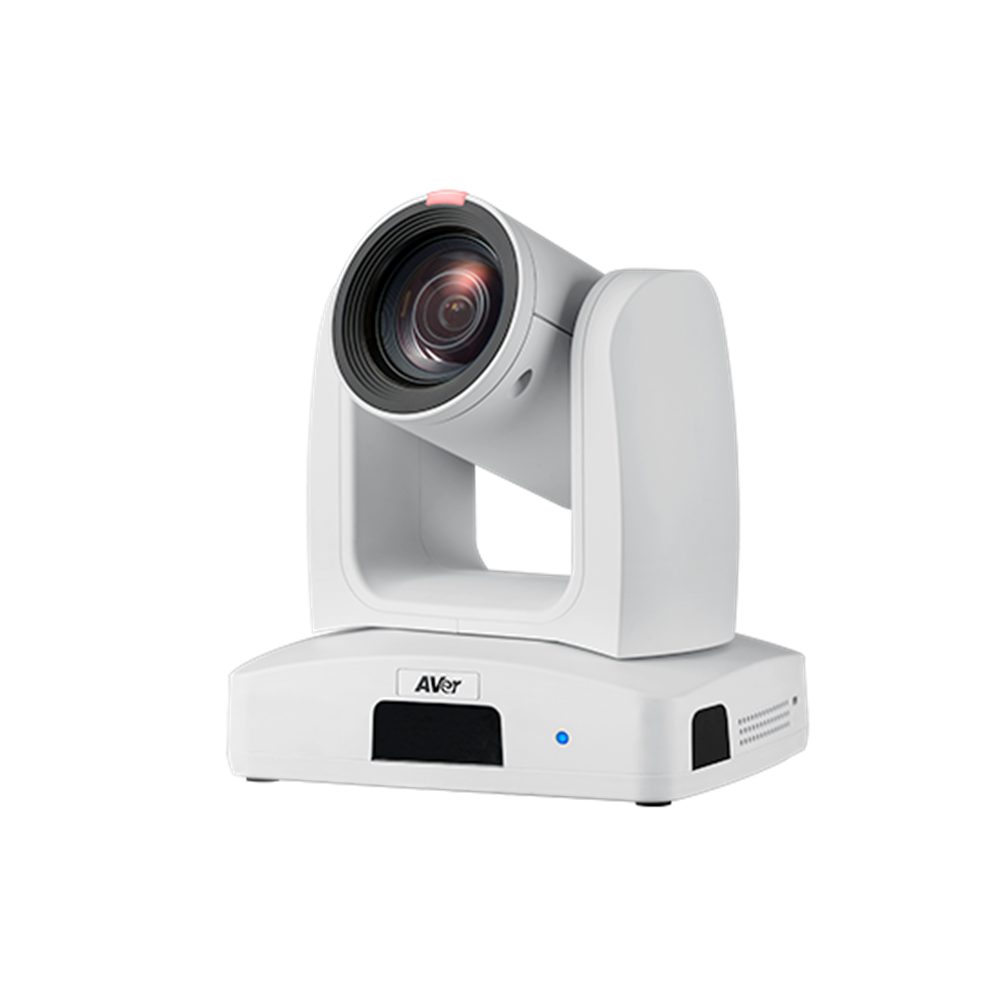

PTZ211

Professional PTZ Camera
AVer’s PTZ211 is an advanced PTZ camera that gives you complete control over your streaming content. Enjoy professional-grade streaming with full HD 1080p outputs at 60 fps, a 12X optical zoom, and the cutting-edge SmartShoot feature. Upgrade your livestream performances and dazzle your audience with the PTZ211.

• 60 fps
• Full HD 1080p
• 12X Optical Zoom
• Sony Exmor™ CMOS Sensor
• SmartShoot
• IP/HDMI/USB/3G-SDI
• Superior Camera Motion
• Intuitive Web UI
• Upside-Down Installation
• Voice Tracking*

Specifications

Camera

• Image Sensor: 1/2.8” 1080p Sony Exmor CMOS
• Effective Picture Elements: 2 Megapixels
• Output Resolutions: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination: 0.46 lux (IRE50, F1.6, 30fps)
• S/N Ratio: ≥ 50 dB
• Gain: Auto, Manual
• TV Lines: 1000 (Center)
• Shutter Speed: 1/1 to 1/32,000 sec
• Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance: Auto, Manual, ATW, One Push
• Optical Zoom: 12X
• Digital Zoom: 12X
• Total Zoom: 144X
• Viewing Angles:
  • DFOV: 80.6° (Wide) to 7.7° (Tele)
  • HFOV: 72.8° (Wide) to 6.7° (Tele)
  • VFOV: 44.1° (Wide) to 3.8° (Tele)
• Focal Length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
• Minimum Working Distance:
  • 0.3 m (Wide)
  • 1.5 m (Tele)
• Pan / Tilt Angles:
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual):
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed:
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions:
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control - Interfaces:
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
• Camera Control - Protocols:
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • ONVIF
• Image Processing:
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
• Power Frequencies: 50 Hz, 60 Hz

AI Function

• Mode: SmartShoot

Audio

• Channels: 2ch Stereo
• Codecs: AAC-LC

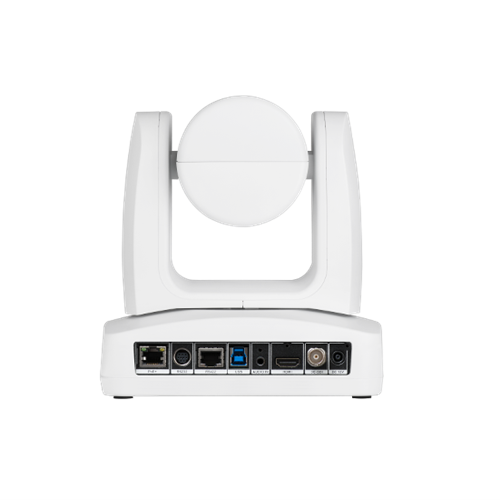

Interface

• Video Outputs: 3G-SDI, HDMI, IP, USB
• Audio Outputs: 3G-SDI, HDMI, IP, USB
• Audio Inputs: MIC in, Line in

General

• Power Requirement: AC 100 - 240V to DC 12V/2A
• Power Consumption: 19W
• PoE: PoE+
• Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
• Net Weight: 2.0 (±0.1) kg
• Application: Indoor
• Tally Lamp: Yes
• Security: Kensington Slot
• Remote Control: Infrared
• Operating Conditions: Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
• Storage Conditions: Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

• Resolution: 1080p 60fps
• Network Video Compress Formats: H.264, H.265, MJPEG
• Maximum Frame Rate: 1080p 60fps
• Bit-Rate Control Modes: VBR, CBR (selectable)
• Range of Bit-Rate Setting: 512 Kbps to 120 Mbps
• Network Interface: 10 / 100 / 1000 Base-T
• Multi-Stream Capability:
  • 4
  • 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
• Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI®HX: License Upgrade to NDI HX2 available in 2024Q4

USB

• Connector: USB 3.1
• Video Formats: MJPEG, YUY2
• Maximum Video Resolution: 1080p
• USB Video Class (UVC): UVC 1.1
• USB Audio Class (UAC): UAC 1.0

Web UI

• Live Video Preview: Yes
• Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment: Exposure, White Balance, Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool: Support Windows® 7 or later
• PTZ Management: Support Windows® 7 or later
• PTZ Control Panel: Supports iOS & iPadOS® 11 or later
• PTZ Link: Supports Windows® 7 or later, macOS® 10.14 or later
• OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
• CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

• Camera: 5 Years
• Accessories: 1 Year
• Package Contents: Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)
• Optional Accessories: AVer CL01 PTZ Camera Controller, L-Type Wall Mount
