PTT-1

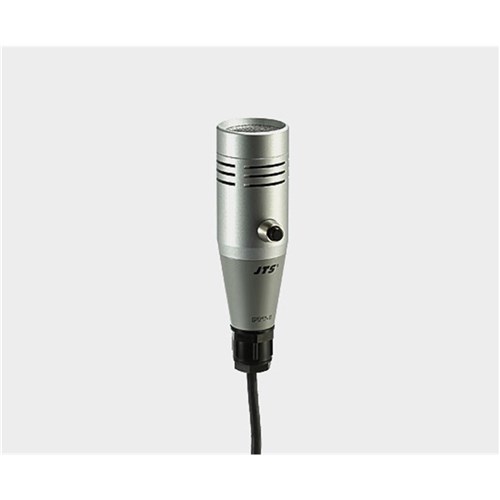

This push-to-talk microphone is designed for PA purpose. Coiled cable is attached. A wall hook is designed for easy install. 3 Pin XLR-M type connector.

SPECIFICATIONS

Type

• Dynamic(moving coil)

Frequency Response

• 50~15,000 Hz

Polar Pattern

• Cardioid, rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity (at 1,000Hz)

• -68±3dB*(0.398mV)*0dB=1V / μbar

Impedance

• 600Ω

Phasing

• Positive pressure on diaphragm
• produces positive voltage on
• pin 2 output with respect to pin 3

Net Weight

• 350 grams
