This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1.

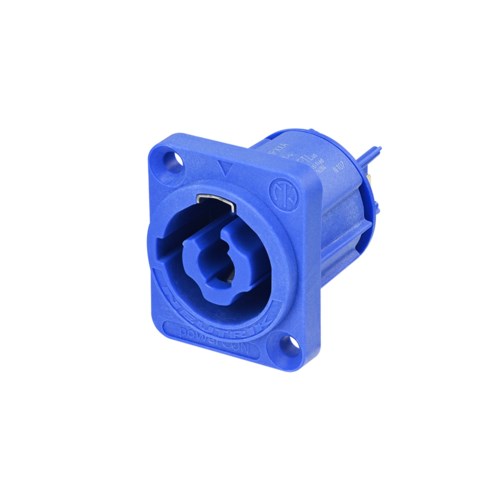

Appliance inlet connector, 3/16" flat tab terminals, blue

The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits

• Lockable single phase connector
• Drop-in replacement for NAC3MPA-1; mates to NAC3FCA cable connectors
• Certified according to IEC 60320-1 & UL 60320-1
• 3 contacts for line, neutral and premating safety ground
• Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
• Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Extremely robust and reliable
• IEC 62368-1 compliant
• UL94 V-0 materials
