Cables and Connectors

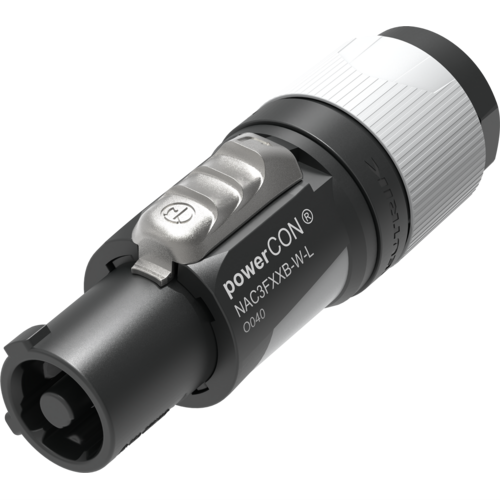

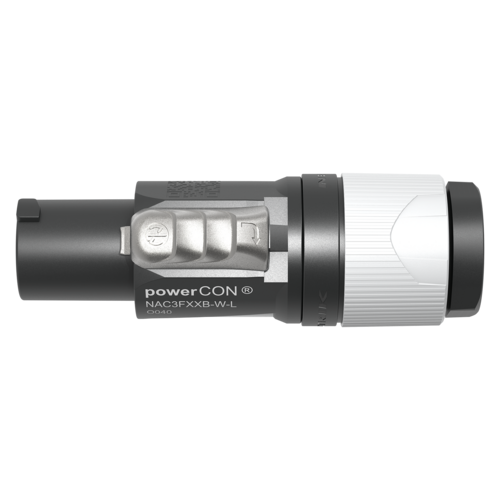

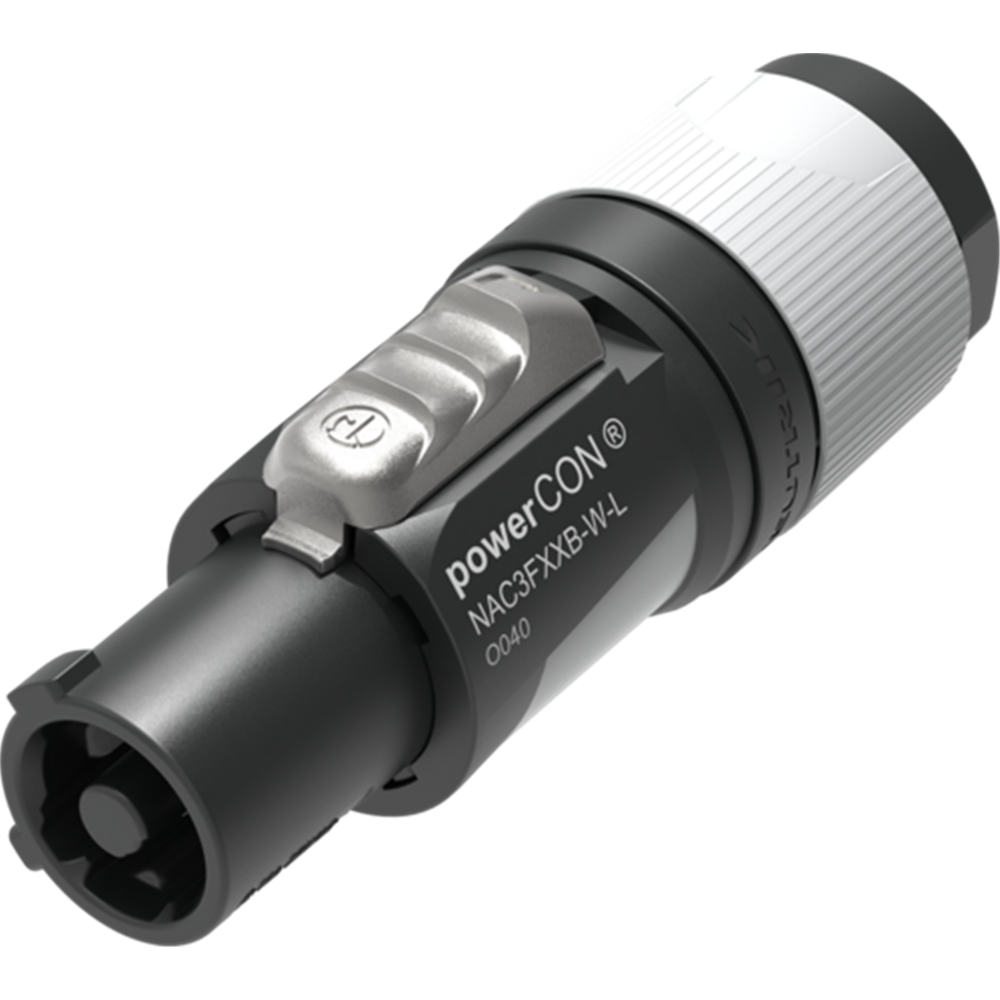

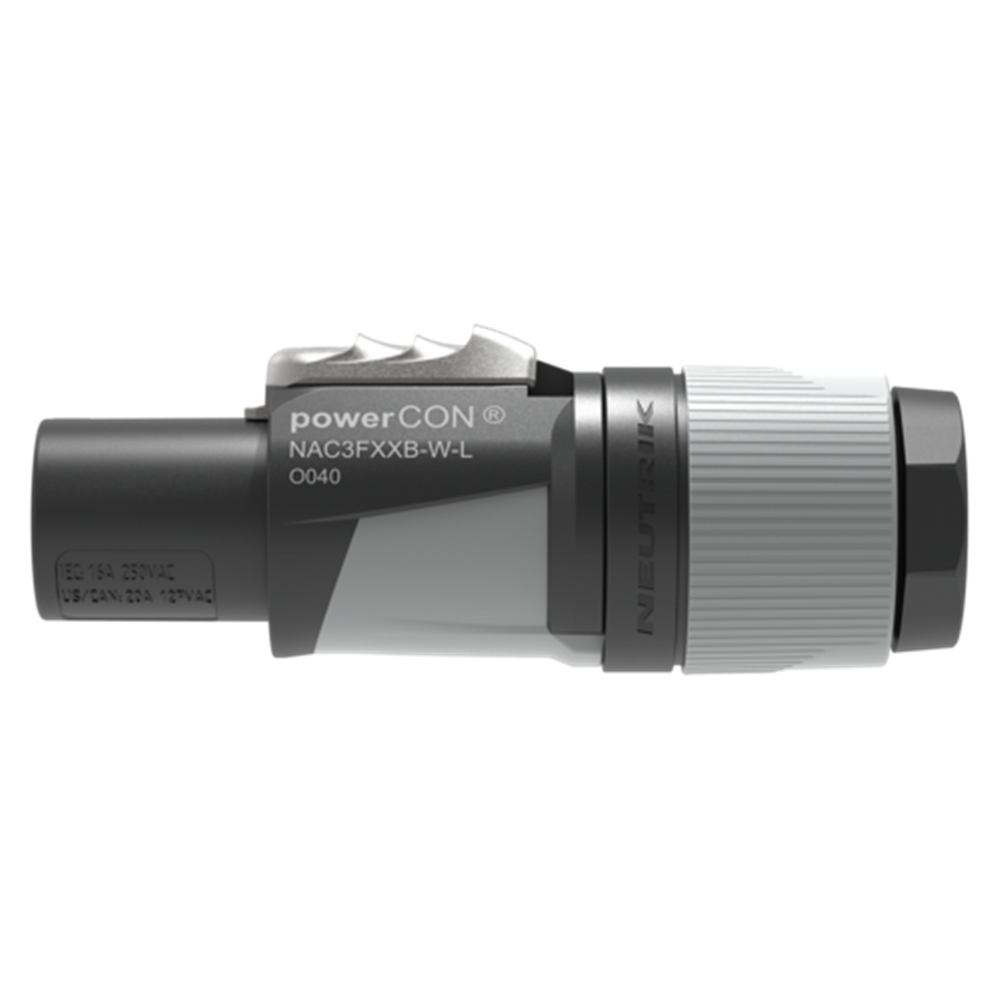

powerCON cable connector power out grey, OD 10-16mm

NAC3FXXB-W-L (NU-NAC3FXXB-W-L)

Brand
Neutrik
RRP $24.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Neutrik
Connector Type PowerCON
  • Details
  • Downloads

Locking AC mains cable connector, keyed and color coded (grey) for power-out, screw terminal assembly, for cable diameters 10 - 16 mm.

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.

It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Features & Benefits
  • IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Ergonomic design with slip-proof two-component molded housing
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing

* For commercial use only

Product Documents

No documents available
