Product nameOchno Power Conference 4
Product codeOC-O-PC-4

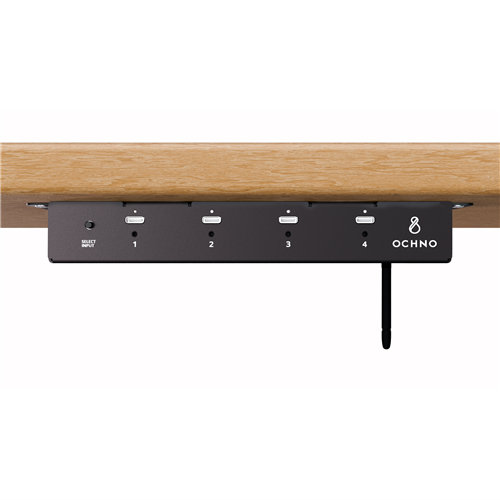

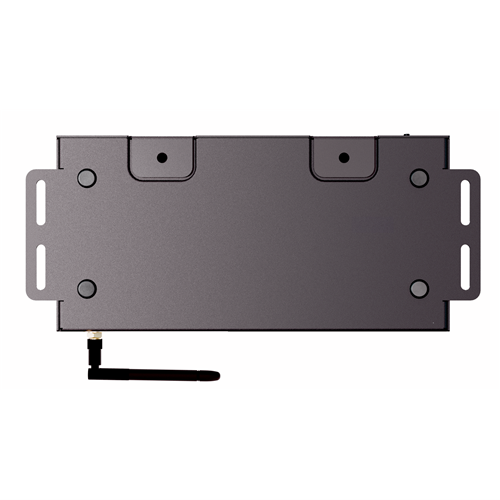

Box contentsMain unit, power adapter, mounting brackets for installing underside of table, manual in English.
Warranty3 years
Dimensions215 x 130 x 33 mm
Weight680g
CertificatesCE, FCC, ETL, RoHS, REACH
Safety classIP20, 5%-80% RH operation. 5%-95% under transport
Ambient temperature5° – 40°C.
ProtectionOver-current, over-voltage, over-temperature

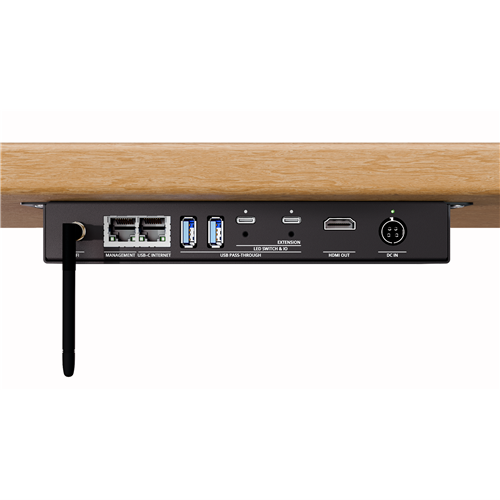

WIFI Antenna2.4 GHz WIFI connectivity to Ochno Operated management portal.
RJ45 110/100 Mbit/s Ethernet connectivity to Ochno Operated management portal.
RJ45 210/100/1000 Mbit/s Ethernet connectivity to Ethernet-sharing via active USB-C port.
USB-A Downstream Ports2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 0.9A power supply.
USB-C Downstream Ports2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 3A power supply. Power Delivery 3.0.
USB-C Extension PortIn addition to above: DP alt-mode 1.4 video output, HBR3, 2 or 4 DP lanes. Up to 4 x 8.1 Gbps video output.
HDMI OutHDMI 2.1 video output. Max resolution 8k 60Hz. HDCP v2.3. FRL mode in 3 or 4 lanes,12 Gbps / lane.
DC IN20V / 10A power supply input.
USB-C Input ports4 x USB Type-C USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. Up to 20V / 5A / 100W power supply. DP alt-mode 1.2 (HBR2)-1.4 (HBR3) video input.Port FunctionsManagementThe Ochno Management Console allows for local management via a Windows/Mac app. Remote management is facilitated through Ochno Operated, while LAN management can be accessed via a local IP interface.
USB-C InternetThe network connected to the USB-C Internet port is shared via USB to the actively selected USB-C port, providing network access without the need for Wi-Fi.
USB Pass-throughThe two USB-A ports and two USB-C ports typically connect USB devices. These devices become accessible to the computer connected to the currently selected USB-C input port.
USB Pass-through on USB-C Upstream Ports In addition to the four downstream ports, the four USB-C upstream ports can also function as downstream ports, allowing for a total of seven downstream ports.
LED Switch & IOAll USB-C ports can connect to special Ochno devices, such as LED button switches and RS232 adapters. The USB-A ports are statically re-configured for this purpose, while the USB-C ports are dynamically re-configured.ExtensionThe extension port can transmit both video and USB communication to a downstream USB-C device, such as another O-PC-4, an O-PC-4-NODE, a device supporting USB-C upstream, or a standard USB-C to HDMI adapter.Video OutThe O-PC-4 features an internal DP MST hub, enabling dual video output. A Windows laptop can use the “Extend Desktop” option to display different content on each screen. For setups with two HDMI displays, a USB-C to HDMI adapter can be connected to the Extension port for a second HDMI output. Apple MacBooks will mirror the same image on both displays.Designed in Sweden. Made in UK
