Wireless microphone antenna systems and components

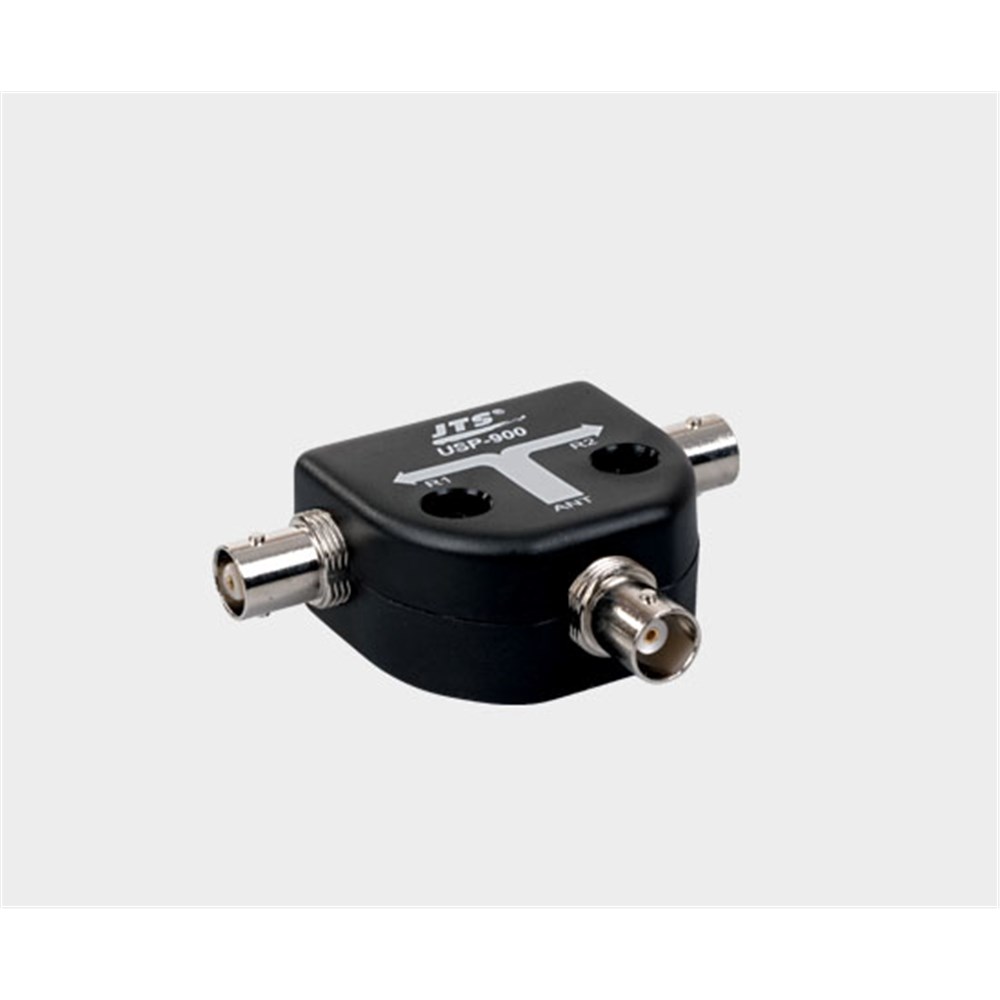

Passive 2-way antenna splitter wideband

Product Code: JP-USP900

Brand
JTS
RRP $69.00

Unit of Measure
EACH



1 Year
Technical Specifications
Brands JTS Professional Microphones
  • Details
  • Downloads

USP-900



  • Full frequency band: 470~870 MHz.
  • One BNC antenna in and two BNC out.
  • RF Carrier Frequency Range: 10~1,000 MHz
  • VSWR(Voltage Wave Standing Ratio): 1.2
  • Impedance: 50Ω
  • Isolation: 20dB
  • Insertion Loss: 2dB
  • Dimension(mm): 72.2 (W)* 23.6(H)* 54.9 (D)
  • Weight: 62.6 grams



SPECIFICATIONS

Full frequency band

  • 470~870 MHz.

RF Carrier Frequency Range

  • 10~1,000 MHz

VSWR(Voltage Wave Standing Ratio)

  • 1.2

Impedance

  • 50Ω

Isolation

  • 20dB

Insertion Loss

  • 2dB

Dimension(mm)

  • 72.2 (W)* 23.6(H)* 54.9 (D)

Weight

  • 62.6 grams

Product Documents

No documents available
