Neutrik

  • Brands
  • Neutrik
  • PANEL-MOUNT RECEPTACLES CRIMP ISOLATED SUITS BELDEN 1505A DRAKA 0.8/3.7
This is a Special Order Item

PANEL-MOUNT RECEPTACLES CRIMP ISOLATED SUITS BELDEN 1505A DRAKA 0.8/3.7

Product Code: NU-NBNB75ILP9

Brand
Neutrik
RRP $39.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Neutrik
Connector Type BNC
  • Details
  • Downloads
  • Ordering

NBNB75ILP9

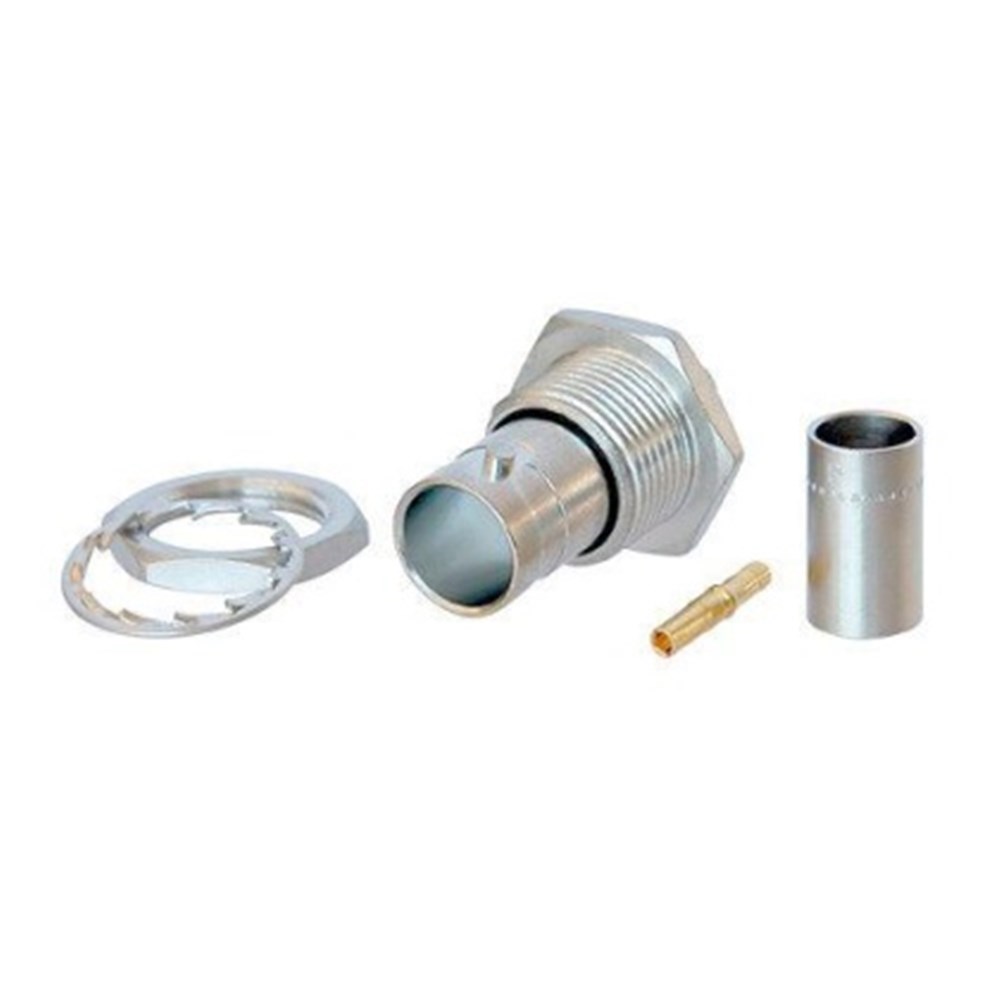

BNC cable jack for panel mount, isolated

Neutrik's BNC cable jacks for panel mount offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Suitable cables:
Belden 1505A, Belden 8241F, Canare L4CFB, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801 (803, 804), Gepco VPM2000, Suhner S04263, Sommer 600-0451

Crimp size:

  • Pin: 1.6 mm (square)
  • Shield: 6.47 mm (hex)


Features & Benefits

  • Gold plated center contact
  • True 75 Ω design meets the stringent HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)



Specifications

Product

Title

  • NBNB75ILP9

Connection Type

  • BNC 75 Ω

Gender

  • female

Electrical

Contact resistance

  • ≤ 3 mΩ (inner)

Contact resistance

  • ≤ 2 mΩ (outer)

Dielectric strength

  • 1,5 kVdc

Impedance

  • 75 Ω

Insulation resistance

  • > 5 GΩ

Rated voltage

  • <50 V

VSWR

  • ≤1.050/>32 dB up to 1 GHz
  • ≤1.065/>30 dB up to 2 GHz
  • ≤1.100/>26 dB up to 3 Ghz

Mechanical

Cable O.D.

  • 4 - 7.7 mm

Cable retention

  • > 30 N (Center)

Crimp size

  • 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)

Crimp size (pin)

  • 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)

Insertion force

  • < 25 N

Lifetime

  • > 1000 mating cycles

Locking device

  • Bayonett

Mounting direction

  • Rear mounting

Chassis shape

  • 12.7 mm

Cable anchoring

  • Jacket crimping

Material

Contacts

  • Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)

Insert

  • PTFE

Shell

  • Brass (CuZn39Pb3)

Shell plating

  • Optalloy®

Environmental

Temperature range

  • -30 °C to +85 °C

Contact crimpability

  • Complies with IEC 60803 and IEC 60352-2

Product Documents

No documents available
