Cables and Connectors

PANEL-MOUNT JACK RECEPTACLE BLACK SHELL

Product Code: NU-NJ3FP6C-BAG

Brand
Neutrik
RRP $23.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Neutrik
Connector Type 6 Pin XLR
  • Details
  • Downloads

NJ3FP6C-BAG

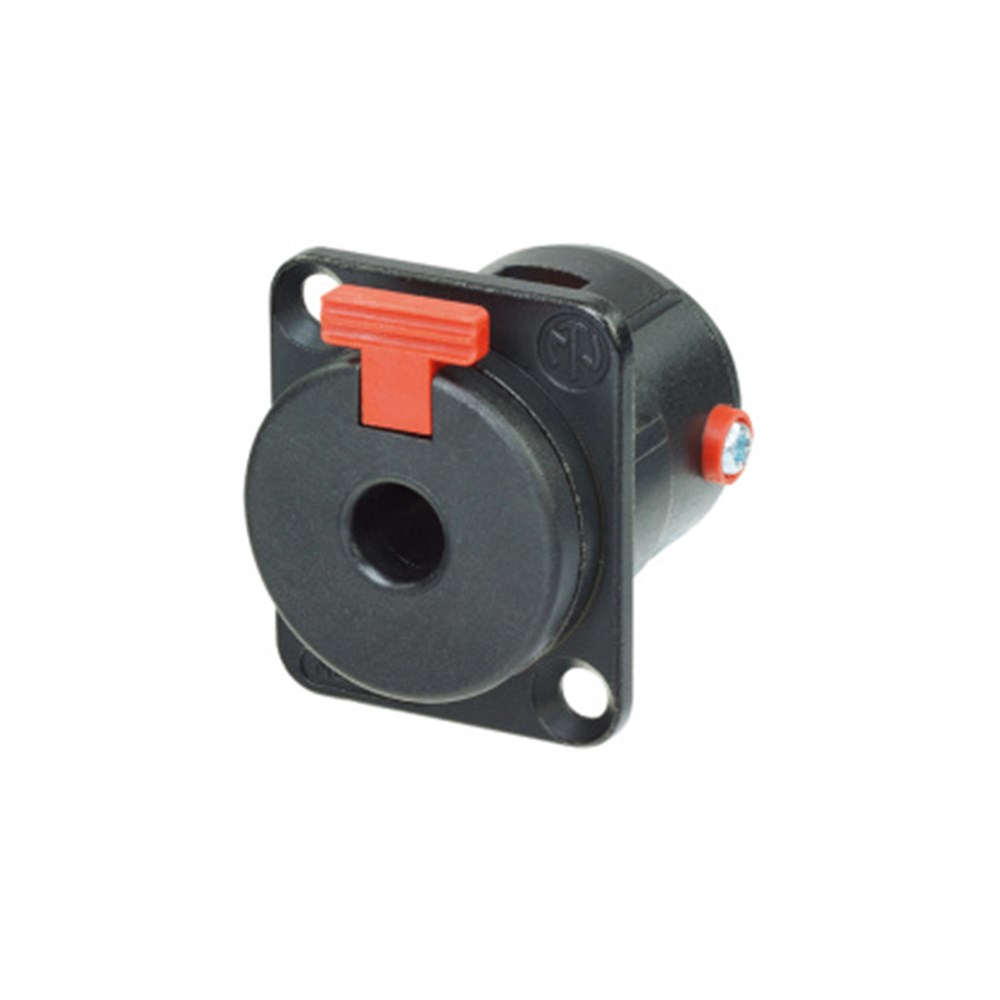

Locking 1/4" phone jack, D-size shell, black metal housing and silver contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.


Features & Benefits

  • Securely locking chassis jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
  • Dimensionally compatible with D Series (31 x 26 mm)
  • Solder terminals

Product Documents

No documents available
