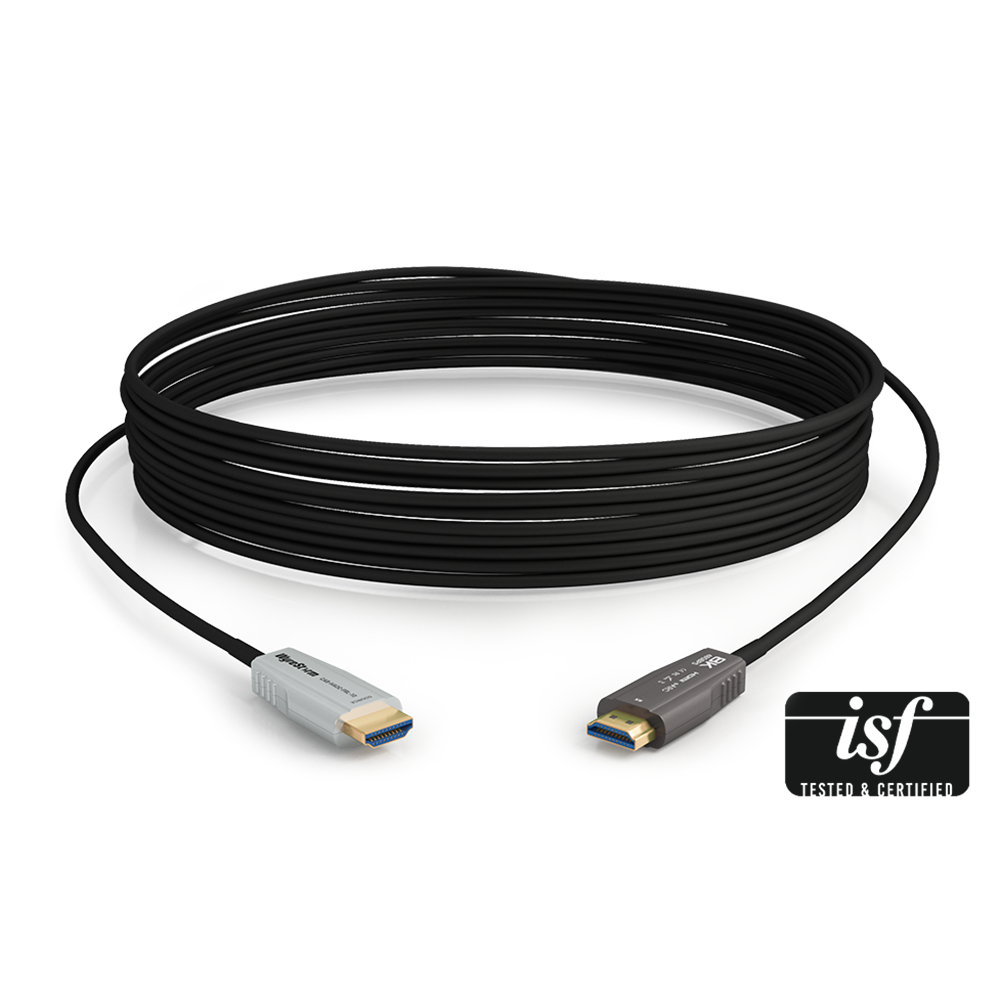

48Gbps 8K/60 HDR 4:4:4 Active Optical HDMI Cable | eARC, CEC, ALLM & VRR |UHS and ISF Certified

CAB-HAOC-FRL-15
The WyreStorm HAOC is a next generation HDMI cable designed for the next generation of 8K and 4K HDR content. Now established as the most powerful form of HDMI extension, WyreStorm active optical cables offer the best of both worlds: pixel-perfect long distance transmission of content and native HDMI communication, thanks to their ability to be a passive communication technology compared to HDBaseT extenders that often terminate the HDMI signal prior to transmission. Looking ahead to the next generation of content crossing into the HDMI2.1 specification, WyreStorm FRL hybrid optical HDMI cables have been designed ready for both content available now and that of the future.

8K and high framerate 4K HDR up to 48Gbps and new HDR standards such as SL-HDR1 and PQ are supported using the latest optical transmission technology. Additionally they offer a unique feature set in both delivering uncompressed HDMI content and compatibility with emerging HDMI technologies such as ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate).

OVERVIEW

DSC COMPATIBLE
Usually adopted for use in powerful HDBaseT Extenders such as WyreStorm’s EX-100-H2-PRO, the VESA approved Display Stream Compression technology is now being used in native HDMI connections for the first time. The aim is to send super-high bandwidth content at a lower transmission data-rate using this mathematically lossless compression algorithm; the WyreStorm FRL HAOC cables are compatible with this technology and will safely pass the signal from source to display.

HDMI 2.1 SUPPORT, NOW
Adopting a powerful 48Gbps 4-core transmission system, the passive optical transmission within these FRL cables is compatible with new content exceeding the current HDMI 2.0 standard. With each core rated at 12Gbps, the combined bandwidth means that the CAB-HAOC-FRL will support future content up to 48Gbps, equating to 8K/60 4:4:4 using peer-to-peer DSC.

PASSIVE HDMI COMMUNICATION
It’s not all about raw bandwidth and transmission power, HDMI technology works by sending huge amounts of invisible “metadata” in both directions and it’s this information that makes or breaks a viewing experience. WyreStorm Active Optical Cables have been verified to not only ensure that the A/V signal gets to its destination but also the invisible metadata too. eARC, CEC, ALLM, and VRR are all supported by WyreStorm HAOC-FRL cables

GLOBAL HDR STANDARD SUPPORT
The emergence of HDR has inevitably meant there are several methods of displaying deeper color palettes. Open standards such as HDR-10 & HLG and licensed versions like Dolby Vision & SL-HDR1 are all currently competing formats that all vary in their method of effectively achieving the same end result. WyreStorm HAOC’s, being a transparent transmission medium, support all known HDR standards and send them uncompressed.

FEATURES

• Uncompressed optical transmission of HDMI content up to 48Gbps:
  • 2K (2560 x 1440p) 240Hz
  • 4K (4096 x 2160p) 144Hz
  • 5K (5120 x 2880p) 60Hz
  • 8K (7680 x 4320p) 60Hz
  • Timings listed are quoted as 4:4:4 8-bit
• Compatible with all current and emerging HDR standards:
  • HLG (Hybrid Log Gamma)
  • HDR-10 and HDR-10+
  • Dolby Vision
  • PQ (Perceptual Quantizer)
  • SL-HDR-1
• Ready for future HDCP 2.3 content encryption
• Compatible with new eARC HD audio standard for on-demand content from smart TV’s
• Supports HDMI2.1 FRL (Fixed Rate Link) 16/18b encoding and DSC (Display Stream Compression)
• True native HDMI communication ensures CEC and audio return communication between compatible devices
• Supports new HDMI2.1 features such as ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate)
• Perfect for use in environments with excessive EM or RF interference
• Kevlar protected communication cores
• High quality aluminium construction with low-profile 20mm/0.79” TX head
• Supplied coiled on cardboard spool in box, with RX head out first.
• No single use plastic included* #SUPFree
• Also available in 10m/32ft length

SPECIFICATIONS

• Transmission Encoding: Uncompressed AOC (with DSC support between Source-Display when required)
• End to End Latency: 10µs
• Maximum Transmission Bit Rate: 48Gbps (4-core, 12Gbps per lane)

• HDMI:
  • (v2.0b) TMDS | 600MHz Maximum
  • (v2.1) FRL (Fixed Rate Link) | 16b/18b encoding
  • DSC (Display Stream Compression) Supported
• Input: 1x HDMI: 19-pin Type A Male
• Output: 1x HDMI: 19-pin Type A Male
• Maximum Data Rate: 42.6 Gbps
• Supported Video Resolutions*
  • 1920 x 1080p @240Hz
  • 2560 x 1440p @240Hz
  • 3840 x 2160p @144Hz
  • 5120 x 2880p @60Hz
  • 7680 x 4320p @60Hz
• Supported Standards: DSC | Static HDR | HDR10+ | Dolby Vision | HLG | SL-HDR1 | PQ | BT.2020 | BT.2100

• Audio Formats:
  • 2ch PCM
  • Multichannel LPCM
  • DTS-X
  • Dolby Atmos
• Maximum Sampling Rate: 192KHz
• Maximum Audio Channels: 32
• Enhanced Audio Return Channel (eARC): Supported

• HDCP: Pass-through, 2.3 Supported
• EDID: Pass-through, RX > TX
• Ethernet: 100Mbps Supported
• Consumer Electronics Control (CEC): BidirectionalSupported
• Auto Low Latency Mode (ALLM): Supported
• Variable Refresh Rate (VRR): Supported

• Max Bend Radius: 2cm
• Max Pull Tension: 15kg/33lbs
• Orientation: Uni-directional - Observe signal flow direction prior to installation

• Power Supply: Passive 4.5v~5.5v VCC (From Connected Source)
• Max Power Consumption: 250mW

• Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
• Storage Temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
• Maximum BTU: 0.85 BTU/hr
• Jacket Material: PVC

• Height: 9mm/0.36in
• Width: 19.8mm/0.78in
• Depth: 39.5mm/1.56in
• Weight: NA
• Cable Length (Connector to Connector): 15m/49ft

• Safety and Emission CE | FCC | RoHS | CL3 | EAC
