Omni-6T Outdoor 70/100V 8 Ohm Omnidirectional Speaker Sonance

Product Code: SO-40196

Brand
Sonance
RRP $1,155.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Sonance
Series Omni
Size 6"
Speaker Type Outdoor
  • Details
  • Downloads

Omnidirectional Outdoor Speaker

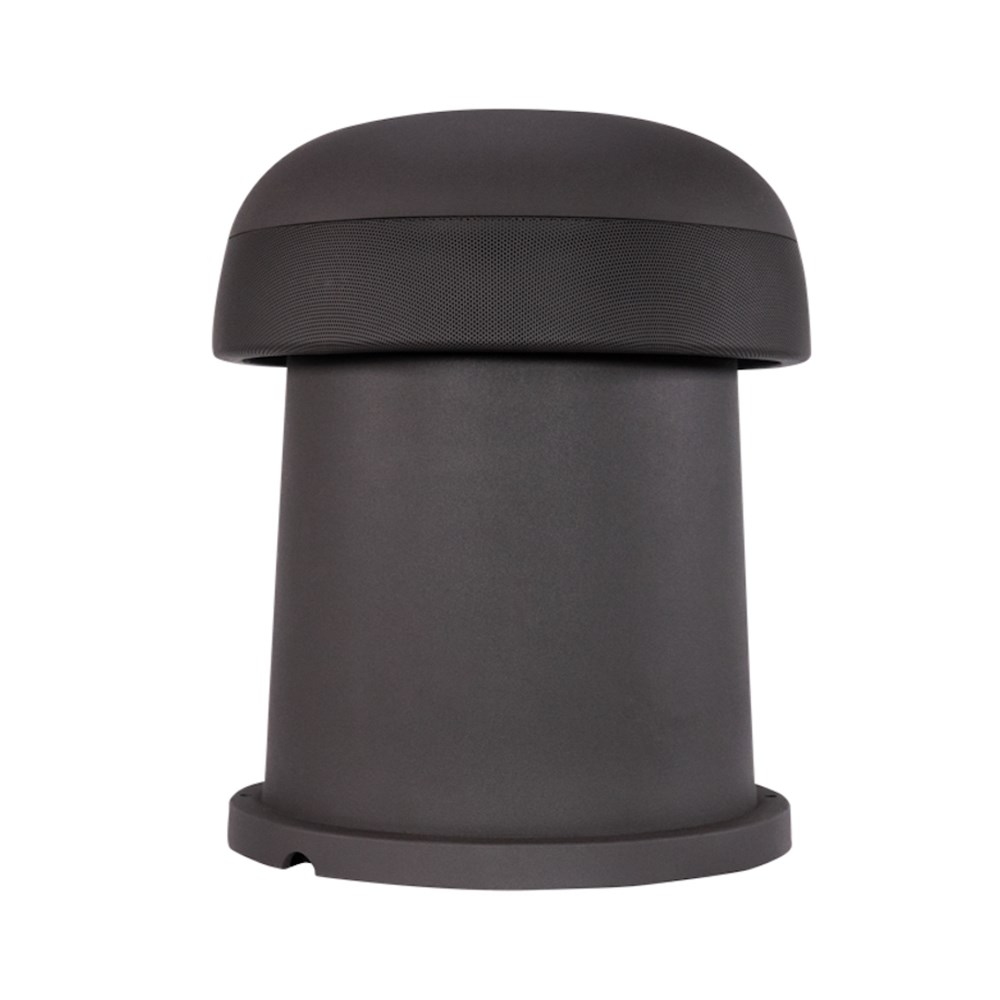

OMNI-6T

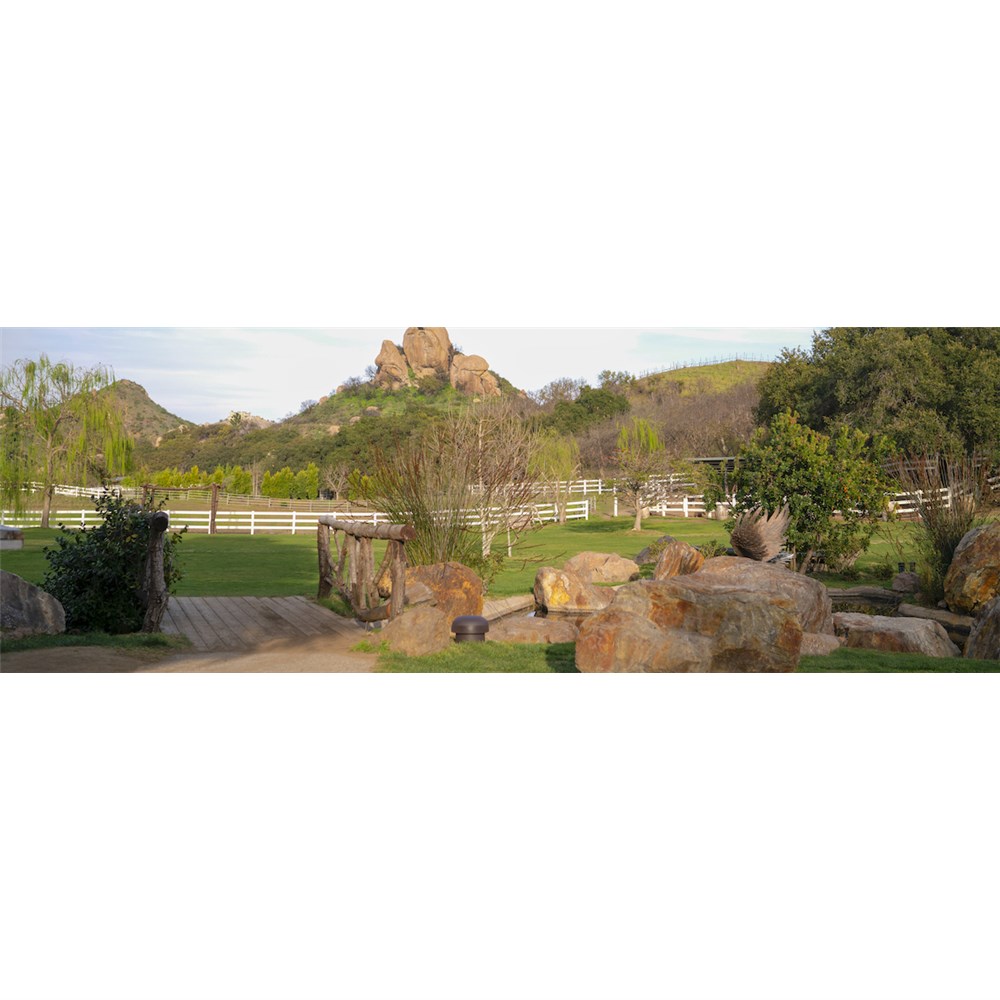

The Sonance OMNI-6T is an Omnidirectional 70V/100V/8 Ohm loudspeaker, designed to deliver 360-degree coverage in applications such as resort gardens, hotel pool areas, theme parks and outdoor shopping malls.

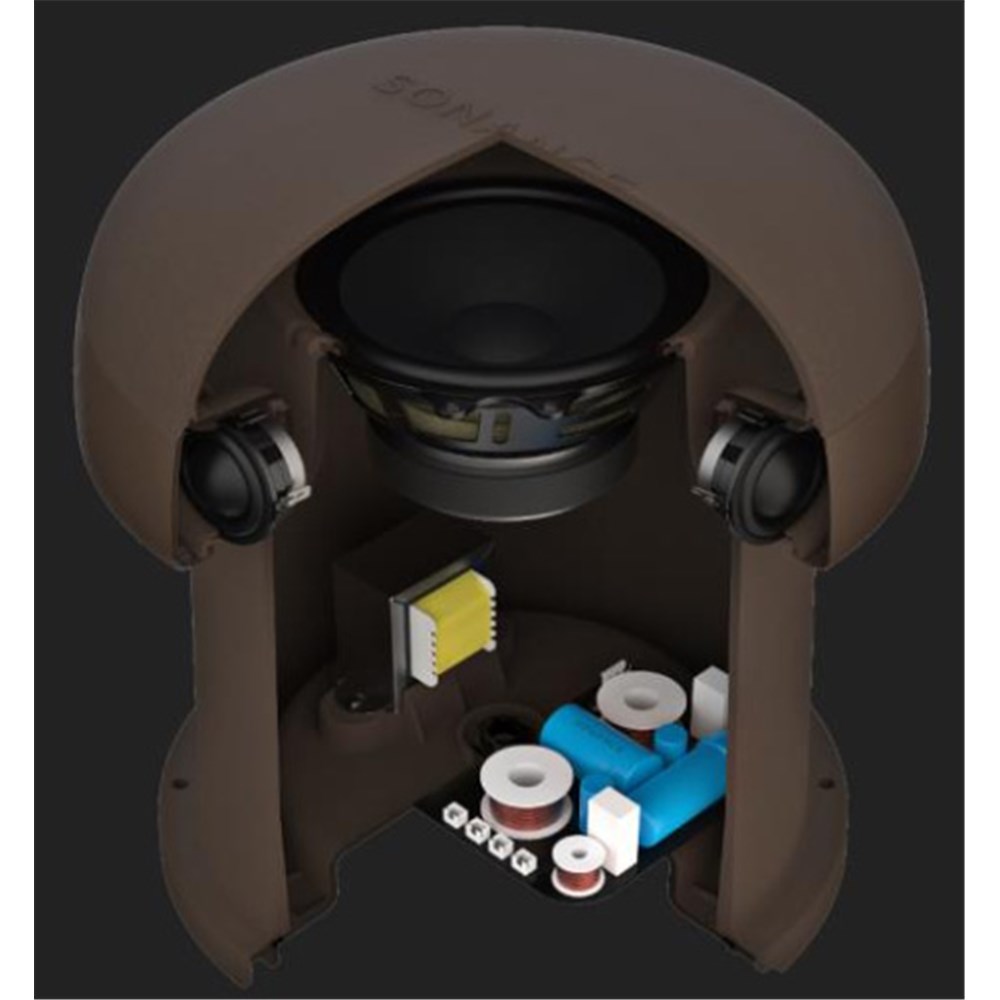

The OMNI-6T features a unique 2-way design, consisting of one high-excursion 6.5" woofer and four 1.25" wide band drivers, providing best-in-class frequency response.

The Sonance Laminated Core Transformer delivers un-compromised fidelity in 70V/100V.

The textured dark brown enclosure is designed to blend into ground cover, garden beds and foliage.



OMNI-6T

Frequency Range (-10dB) 38Hz – 25khz
Frequency Range (-3dB) 60Hz – 20kHz
Power Capacity 120 Watts Continuous Program Power, 60 Watts Continuous Pink Noise
Nominal Sensitivity 88 dB
Nominal Coverage Angle 360 degrees horizontal, 160 degrees vertical
Directivity Factor (Q) 2.2
Directivity (DI) 3.4dB
Rated Maximum SPL 107dB @ 1 meter (3.3 feet) average, 113dB peak
Rated Impedance 8 ohms nominal, 6 ohms minimum
Transformer Taps 80W, 40W, 20W and (10W @70V)
Crossover Point 500Hz
LF Driver 6.5" (165mm) Polypropylene Cone, Santoprene Rubber Surround
Wide Band Driver Four 1.25" (32mm) EPDM dome, Ferrofluid cooled
Input Connectors Flying Leads
Environmental Conforms to Mil Spec 810 for humidity, salt spray, temperature and UV, IEC 529, IP-66 waterproof rating
Included Accessories Silicone filled wire nuts
Overall Dimension HxDia 14.5”x 12" (368mm x 305mm)
Net Weight 14.60 lbs (6.62kg) each
Shipping Weight 23.25 lbs (10.55kg) each
