Name: GS-6 red 100m
Price: 511 NZD

This is a Special Order Item

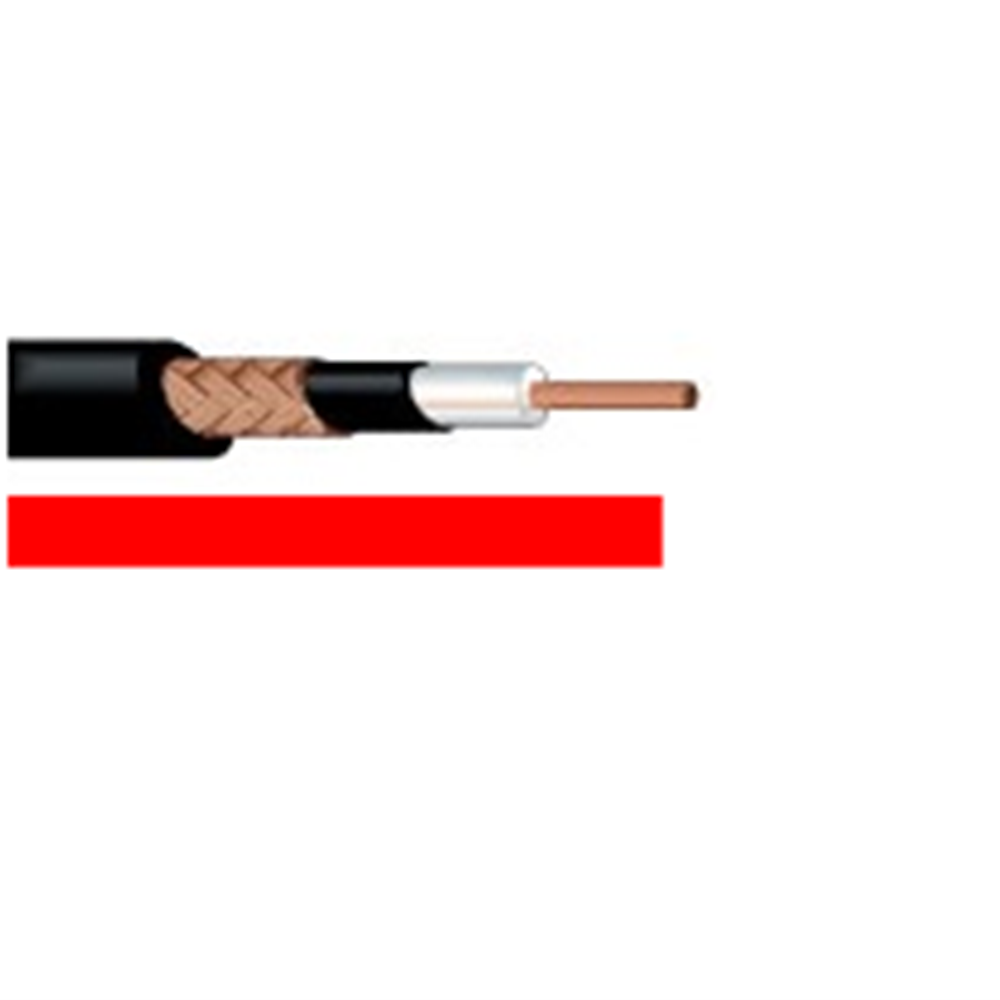

A specially designed Oxygen Free Copper 18 AWG cable for connecting Guitar/Bass or Keyboards to amps, mixers, effects pedals and all outboard signal processing gear. Low capacitance and low series resistance provides improved frequency response (flat to 50kHz). A bright, ringing characteristic sound is preserved, even when using HI-Z guitar pickups with long cable runs. The proprietary double Carbon/Braid Copper shield construction eliminates microphonic handling noise, especially on stage where amps are often set at maximum volume levels. Also highly recommended for Amp Head to Speaker Cabinet leads.
Electronic Instruments.
Hi-Fi Interconnects.
Test Probes.
Audio Patch Cords.
AMP to Cabinet Leads.
Stays Flexible even in Sub-Zero Weather.
Oxygen Free Copper Conductor & Shield.
Reduced Microphonic Handling Noise.
Low Capacitance & Resistance.

MECHANICAL SPECIFICATIONS
Model	Std. Lng. ft. (m)	Wt Std. Lng. lbs (kgs)	Nom. O.D. in. (mm)	PVC Jacket Nom. Thick. in. (mm)	Brittle Point F° (C°)	No. of Cond.	Insul. Type* Thick mil	Cond-AWG (Qty./mil) Cross Sec. Area mil.²	Pitch Twist Quad in. (mm)	Shield Cover- age
GS-6	328 (100) 656 (200)	22 (10)	.228 (5.8)	.039(1.0)	-56 (-49)	1	PE 33.5	OFC-#18 (127/3.94) 1550	-	OFC>92% Braid+ Carbon Sleeve

Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

***Capacitance between conductors.
†Capacitance between conductors to shield.

[+]=Standard Color, [o]=Available Color, ""=n/a

Brands	Canare
Bulk Cable Type	OFC Line Cable

Canare

GS-6 red 100m
