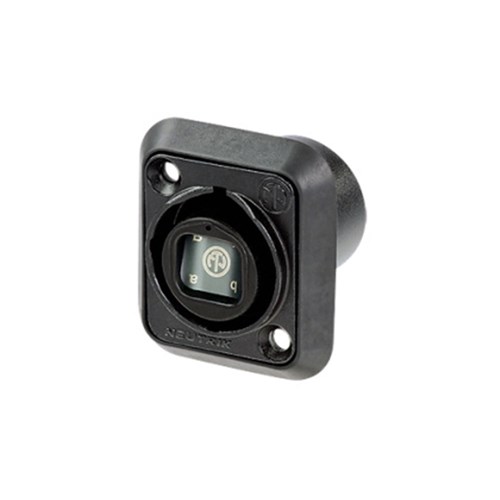

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features & Benefits

• Rugged 4-channel Point-to-Point multichannel routing solution
• IP65 ingress protection in mated condition with SCDP-*
• Laser protected metal shutter seals dust proof with two-component rubber gasket
• Accommodates standard LC connectors on the rear for cost effective and simple installations
• Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:
  • Multimode - black - NU-SCDP-0
  • Single mode PC - blue - NU-SCDP-6
  • Single mode APC - green - NU-SCDP-5
