Cables and Connectors

CAT6A cable connector, black, suits solid AWG26-24, stranded AWG27/7-24/7

Product Code: NU-NE8MX6-B-T

Brand
Neutrik
RRP $54.00


Unit of Measure
EACH



1 Year
Technical Specifications
Brands Neutrik
Connector Type Ethernet
  • Details
  • Downloads

NE8MX6-B-T

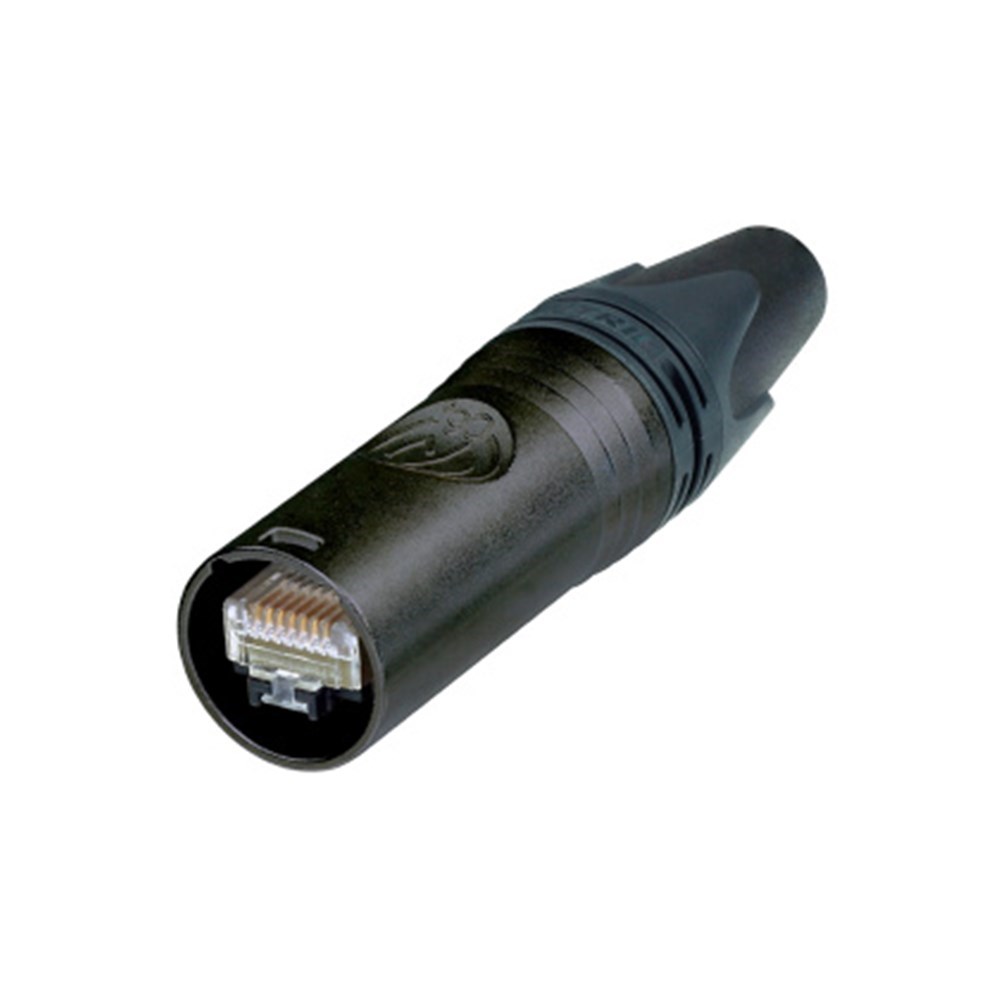

etherCON CAT6A cable connector self-termination, for insulation diameter ≤ 1.1 mm, black plating

The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG22/1 (solid) or AWG27/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.


Features & Benefits

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief

Product Documents

No documents available
