Cables and Connectors

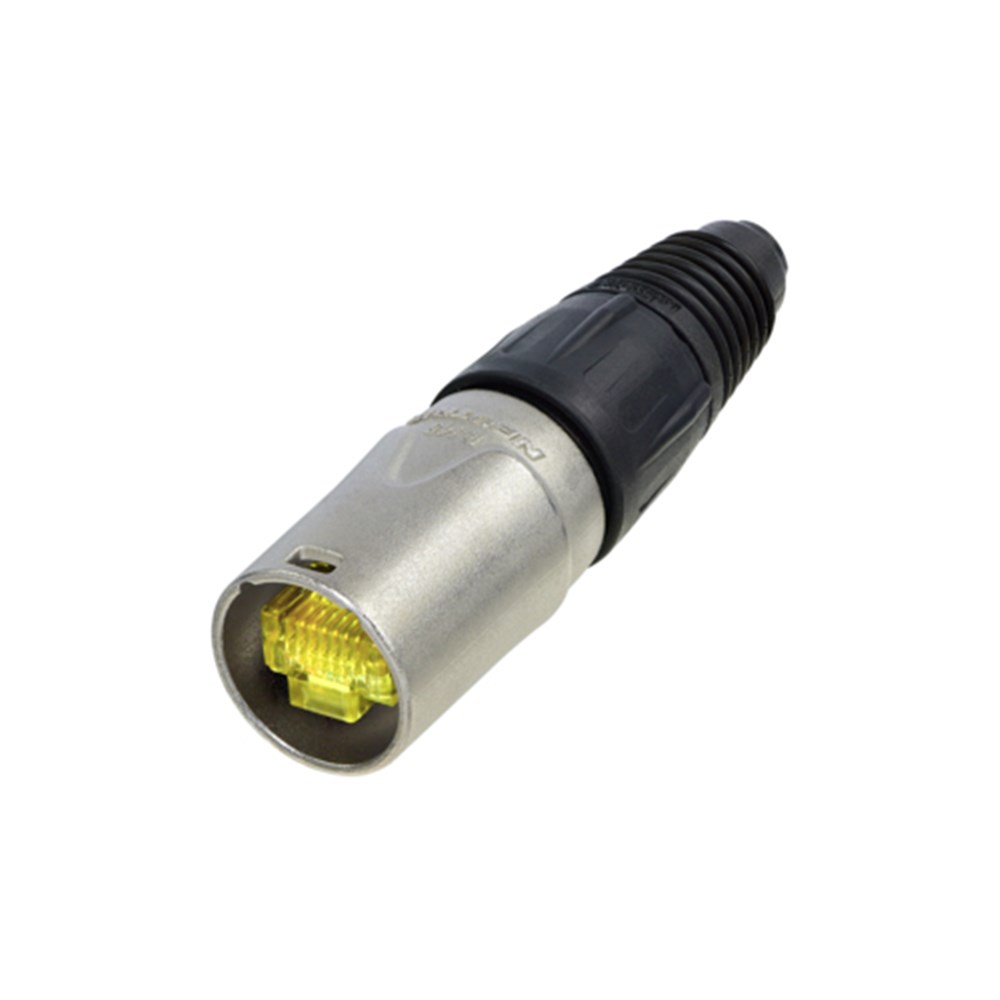

etherCON cable carrier for non-preassembled cables nickel

Product Code: NU-NE8MX-1

Brand
Neutrik
RRP $8.15


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Neutrik
Connector Type Ethernet
  • Details
  • Downloads

NE8MX-1

Cable connector carrier consists of a nickel shell, chuck and boot. The boot (same as X-series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.



Features and Benefits

  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
  • Allows assembly of non pre-assembled conventional RJ45 cables
  • Accessories include color coded boots in 9 standard colors

Technical Information

Product
TitleNE8MX-1
Gendermale
IMPORTANTCable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!
Mechanical
Cable O.D.3.5 - 8 mm
Insertion force= 20 N
Withdrawal force= 20 N
Lifetime> 1000 mating cycles
Material
BootPolyamide (PA 6)
ShellZinc diecast (ZnAl4Cu1)
Shell platingNickel
Strain reliefPolyacetal (POM)
Environmental
Temperature range-30 °C to +80 °C

Product Documents

No documents available
