BNC chassis connector, solder terminations, grounded

Product Code: NU-NBB75DSG

Brand
Neutrik
RRP $33.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Neutrik
Connector Type BNC
  • Details
  • Downloads
  • Ordering

NBB75DSG

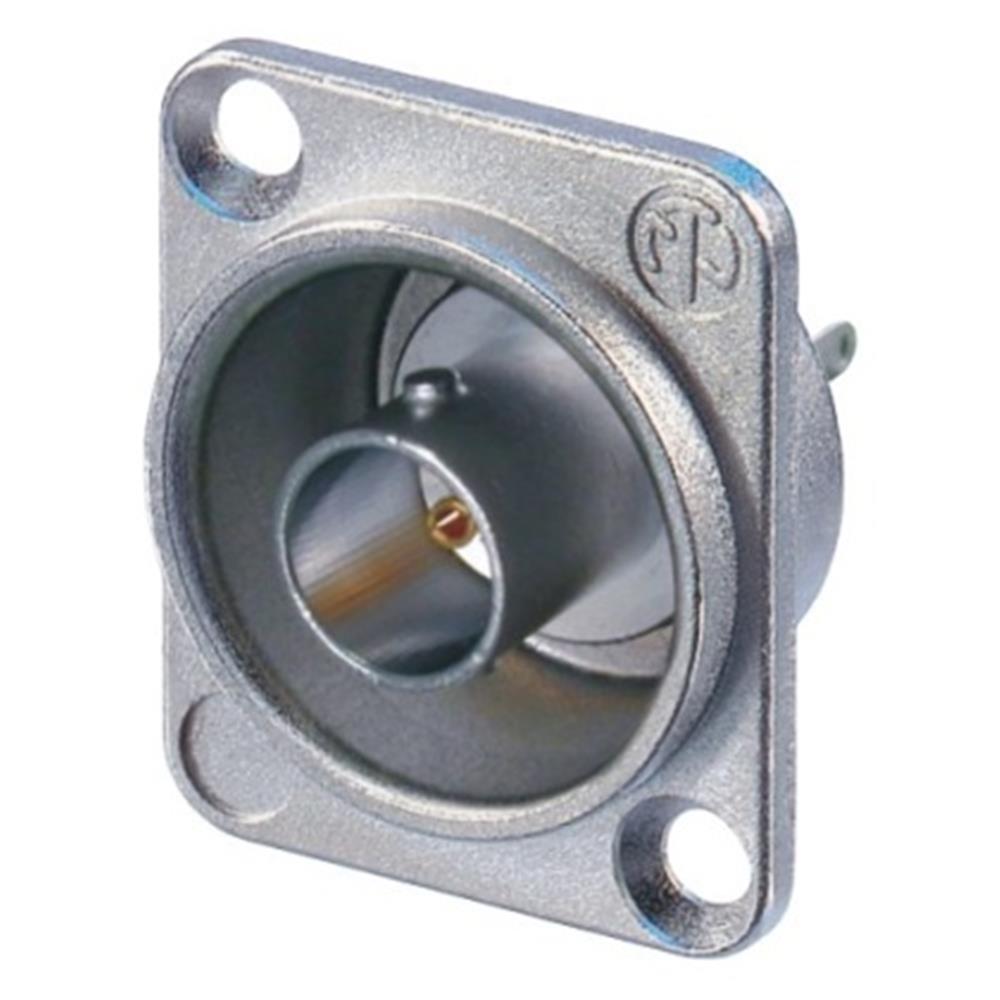

Grounded BNC chassis connector, solder version in nickel D-shape housing

Neutrik's BNC chassis connectors offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).


Features & Benefits

  • Gold plated center contact
  • True 75 Ω design meets the stringent HD requirements
  • Grounded panel mount
  • Standard D-shape housing - provides flush mounting and protection from demage
  • Color coding possible



Specifications

Product

Title

  • NBB75DSG

Connection Type

  • BNC 75 Ω

Gender

  • female

Electrical

Signal Type

  • HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

Contact resistance

  • ≤ 3 mΩ (inner)

Contact resistance

  • ≤ 2 mΩ (outer)

Dielectric strength

  • 1,5 kVdc

Impedance

  • 75 Ω

Insulation resistance

  • > 5 GΩ

Rated voltage

  • <50 V

VSWR

  • ≤1.03/>37 dB up to 1 GHz
  • ≤1.05/>32 dB up to 2 GHz
  • ≤1.08/>28 dB up to 3 Ghz

Mechanical

Insertion force

  • < 25 N

Lifetime

  • > 1000 mating cycles

Locking device

  • Bayonett

Mounting direction

  • Front mounting

Chassis shape

  • D

Material

Contacts

  • Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)

Insert

  • PTFE

Shell

  • Polyacetal (POM) (Insulation Sheell)

Shell plating

  • Optalloy®

D-Shape housing

  • Zinc diecast (ZnAl4Cu1) gal Ni plating

Environmental

Temperature range

  • -30 °C to +85 °C

Product Documents

No documents available
