Unattended Noise Monitoring

NoiseScout provides a comprehensive but easy-to-use 24/7 noise monitoring solution. Noise levels are recorded on-site by the XL2 Sound Level Meter and are available for remote monitoring and download. NoiseScout is aimed at both short term noise assessments and long term monitoring applications.

At a glance

• 3G or LAN communication
• Email alerts and data download
• Live audio listening & audio on alarms

Overview

NoiseScout offers the freedom to start and stop the remote noise monitoring from your office or mobile device providing total flexibility in meeting your project requirements. During acquisition, automated email alerts allow noise issues to be addressed before a non-compliance condition arises. The remote access to the noise monitoring station is offered in two selectable modes, the 'Managed Mode' or the 'Gateway Mode'.

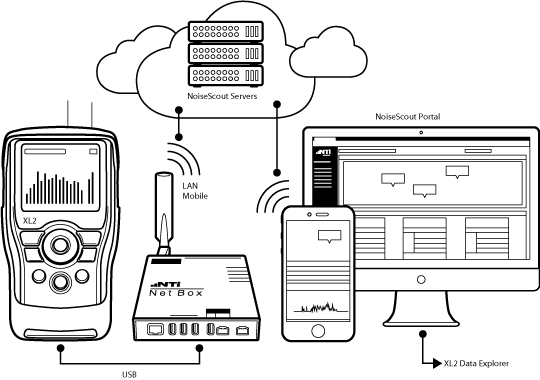

Noise Monitoring in "Managed Mode"

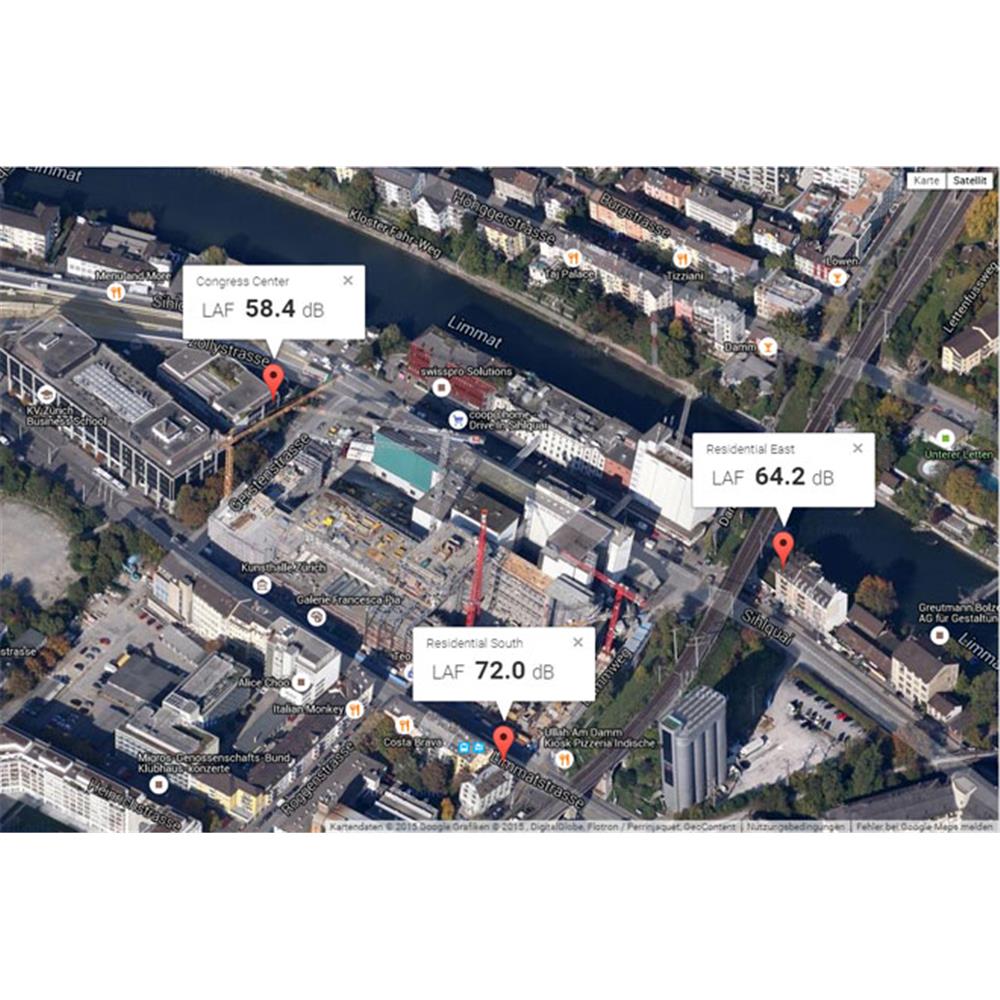

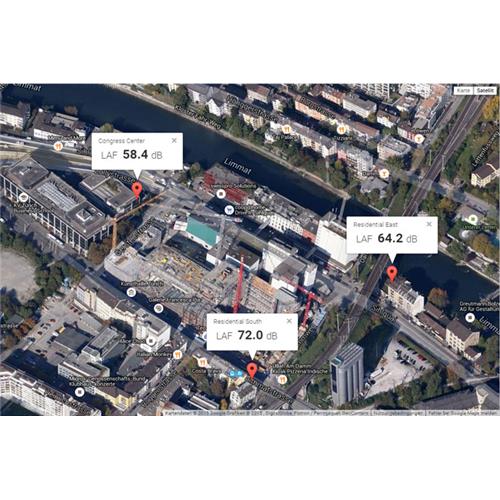

NoiseScout displays the noise levels measured by the XL2 Sound Level Meter live in your web browser. The measurement data recorded out in the field is presented online in charts and dashboards. Multiple noise level meters can be monitored simultaneously within the map view, thus providing localized geographic visualization for all noise levels at a glance. Identified users can access all their projects, control their monitors or create basic view modes, allowing stakeholders to oversee their noise level data.

The XL2 Sound Level Meter is configured remotely. The NoiseScout monitoring solution reports compliance violations and data connection irregularities by email. Audio recordings of the periods with the highest sound level, as well as the ability to listen to live audio, assists with the identification of causes of noise. From this information, preliminary reports can be generated while the measurement continues. This facilitates quick responses to noise issues so that they are addressed before a non-compliance condition arises.

No data will be lost if communication to the NoiseScout Servers is interrupted. Measurement data is buffered for transmission at source on the XL2 Sound Level Meter. In case of any lost connection, the NetBox will synchronize the recorded data to the NoiseScout Servers as soon as communication is re-established. The NoiseScout Servers are built on a scalable architecture and the latest secure data center technology. The server network provides access to your data quickly and reliably.

NTi Audio manages and maintains the data synchronization and data storage for your convenience. This service is offered within an innovative “pay-per-use” credit scheme, providing transparent and predictable cost control. Usage is based on calendar days contained within the measurement data transferred from the XL2 Sound Level Meter to the server. Alternatively an annual subscription service is available.

Live demo - overview

Measurement station 1

Measurement station 2

Noise Monitoring in "Gateway Mode"

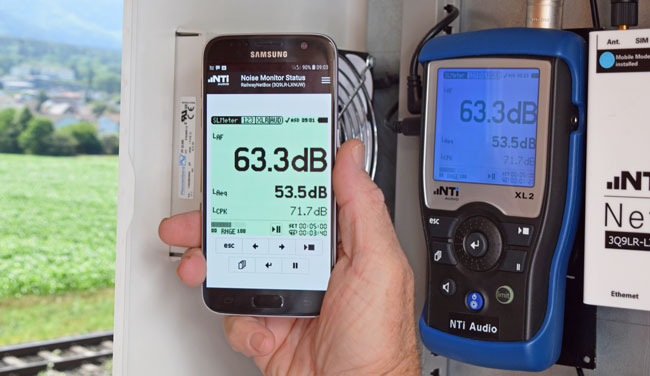

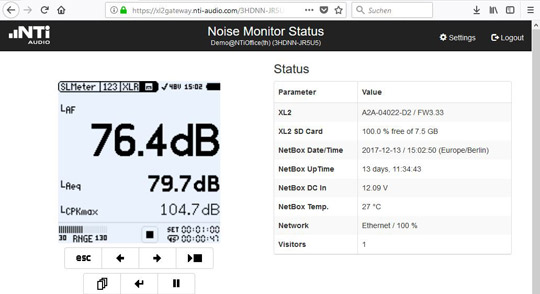

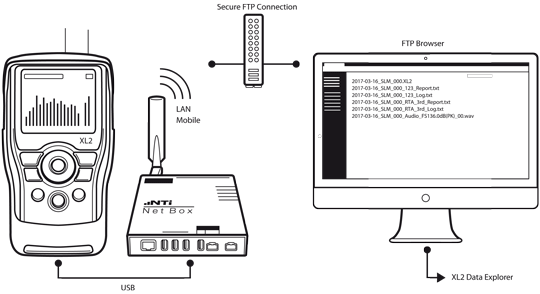

The direct access to the XL2 Sound Level Meter is available around the world. The internet connection allows SFTP (Secure File Transfer Protocol) and remote access to the XL2. This offers the freedom to start and stop the online noise monitoring from your office or your mobile device; a useful tool for complete control.



All data files can then be retrieved remotely from remote XL2 Sound Level Meter even during an ongoing measurement. Also, the spectral data and audio files can be directly downloaded from the remote XL2.



The remote access allows full control of the XL2 Sound Level Meter. All remote measurement commands available on the XL2 are supported. For example, the current measurement data may be captured in real time into a computer application, e.g. C#, MS Excel or LabView. You may program a customized measurement application for remote sound level monitoring, audio analysis or automated measurement tasks.



NTi Audio manages and facilitates remote access to the XL2 Sound Level Meter for your convenience. The offered infrastructure overcomes the limitations of local area networks and avoids the necessity for you to set up a router with a direct connection from the NetBox to your PC. The remote access is offered within an innovative “pay-per-use” credit scheme, providing transparent and predictable cost control. Usage is charged per calendar day with remote data download from the XL2 Sound Level Meter. Alternatively an annual subscription service is available.

Live Demo Noise Monitoring Station

Password: gwdemo1409

NoiseScout Tutorial - How to Connect
