L2FXX-W-S bulk pack (Box of 100)

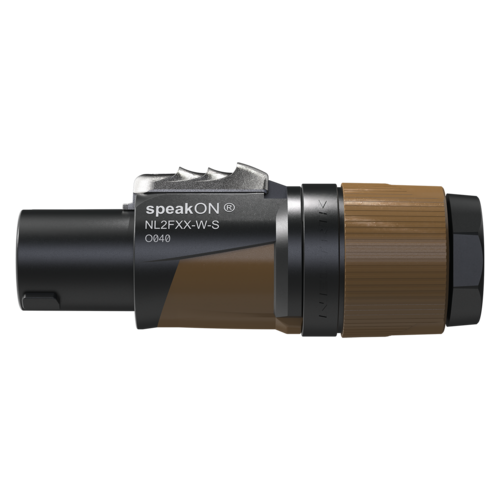

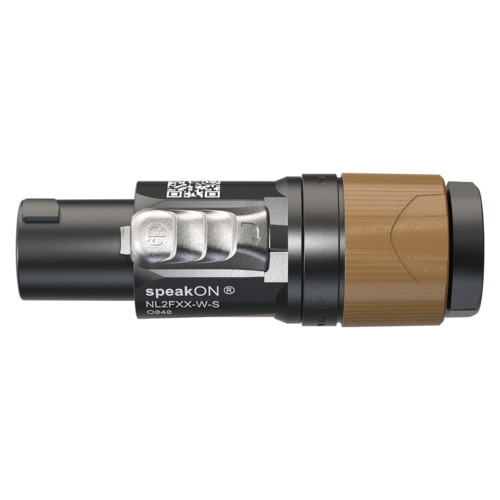

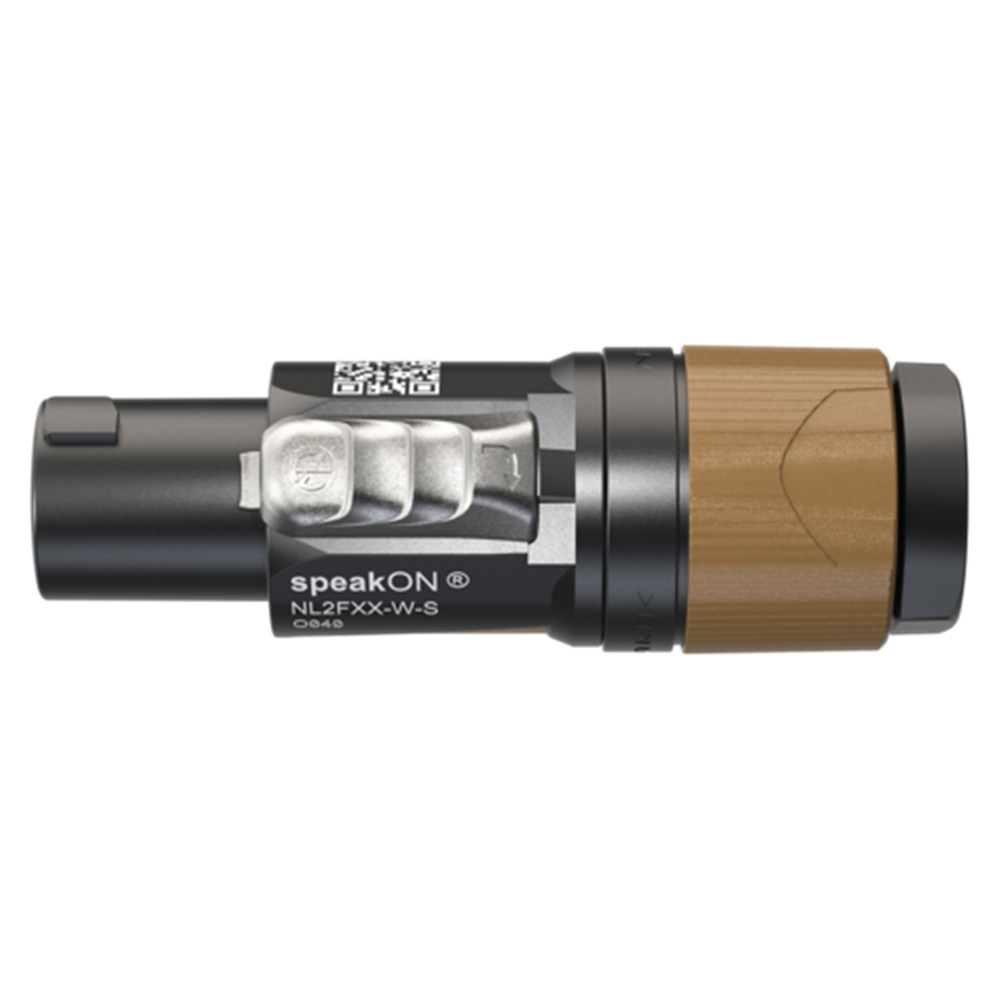

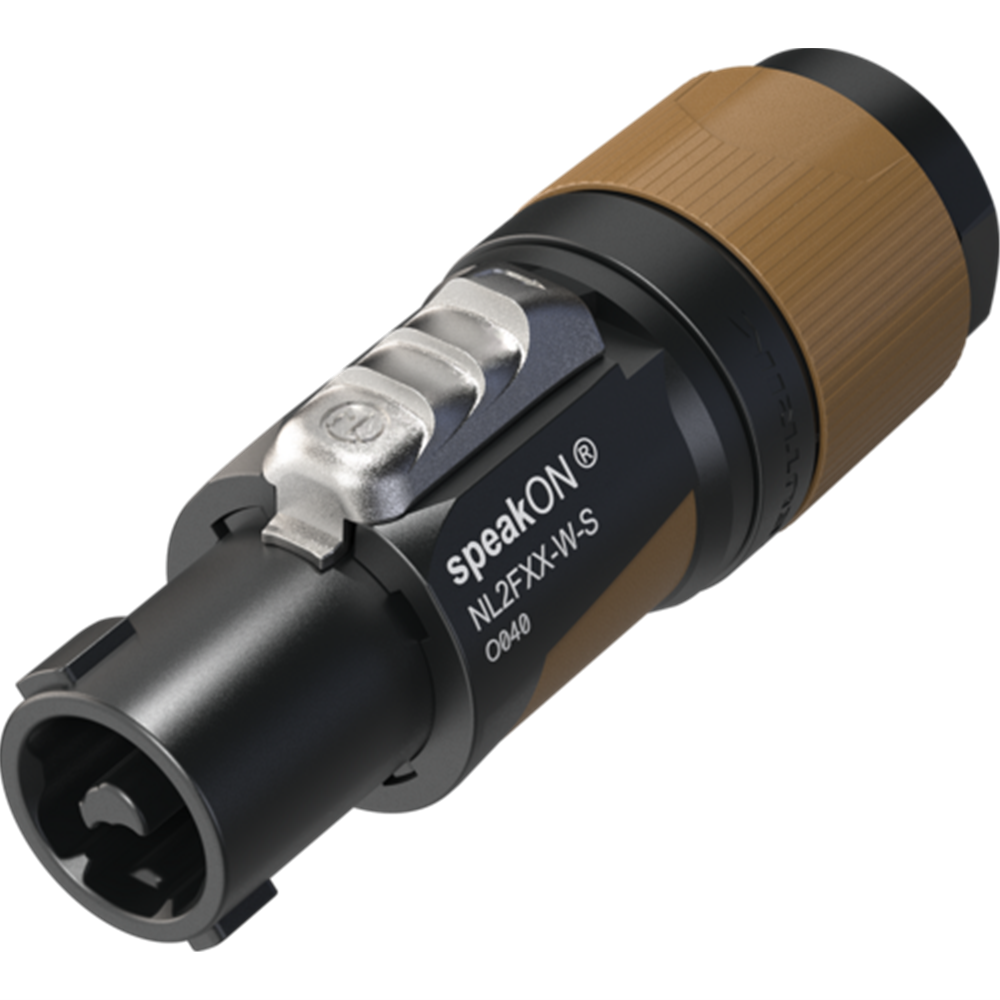

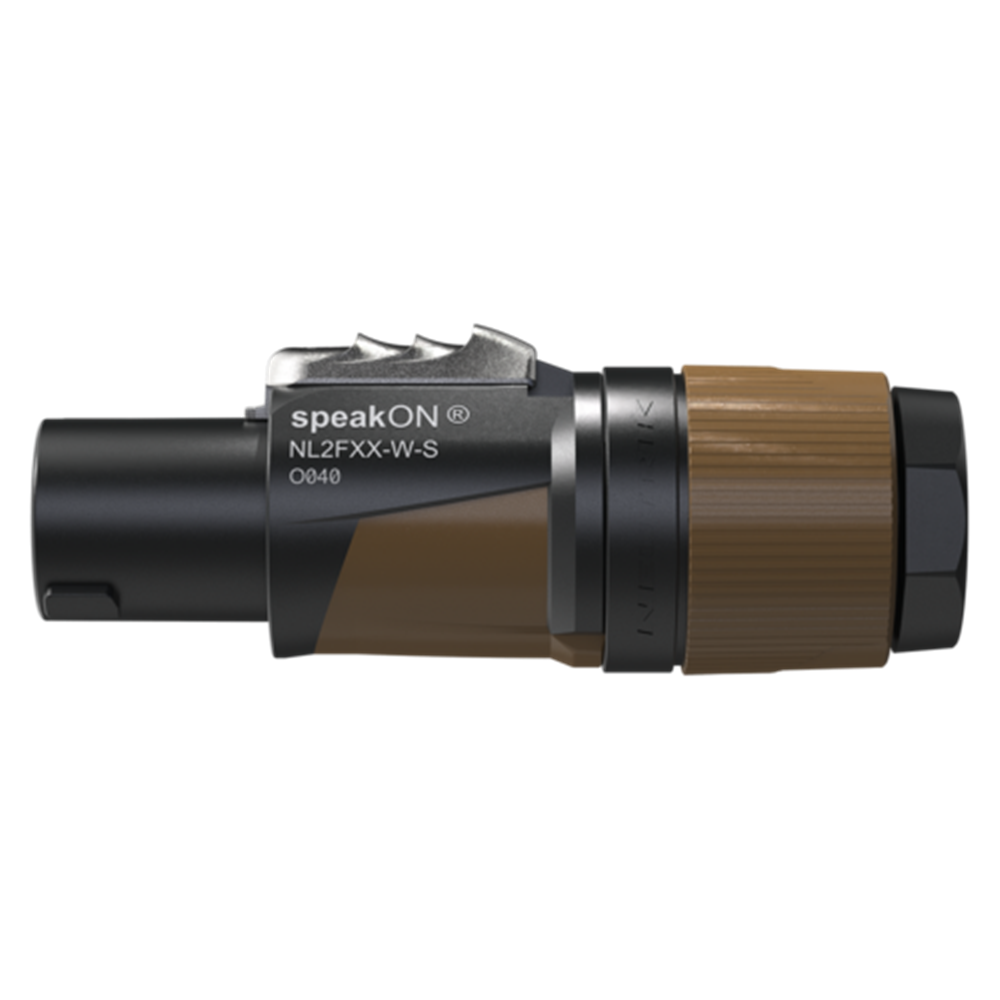

2 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

• Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
• Ergonomic design with slip-proof two-component molded housing
• Up to 37 A rms current rating
• Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
• IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
• Superior NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Improved kink protection by two-component bushing

Technical Information

Product

• Title:    NL2FXX-W-S
• Connector series:    speakON 2-pole

Electrical

• Contact resistance:    ≤ 2 mΩ
• Dielectric strength:    2.8 kVac
• Insulation resistance:    > 10 GΩ (initially)
• Number of electronical contacts:    2
• Rating Europe:    IEC 61984: 37 A 250 V AC
• Rating USA:    UL1977: 35 A 250 V AC
• Rating Canada:    CSA C22.2 No.182.3: 24 A 250 V AC
• Attention:    This product is strictly not intended for use as an AC mains or power supply connector!
  CAUTION: NOT FOR INTERRUPTING CURRENT

Mechanical

• Cable O.D.:    6 – 12 mm
• Lifetime:    typically 5’000 mating cycles
• Wiresize (mm):    1.5 – 4 mm²
• Wiresize (AWG):    17 – 11 AWG
• Locking device:    Twist lock
• Termination:    screw type terminals

Material

• Contact plating:    Ag
• Contacts:    Copper Alloy
• Insert:    Polyamide (PA6.6)
• Locking element:    Zinc diecast
• Shell:    Polyamide (PA6) / TPE
• Strain relief:    Polyketone
• Bushing:    Polypropylene / TPE

Environmental

• Temperature range:    -33 °C to +80 °C
• Protection class:    IP20
• Flammability acc. to UL94:    V-0
