AV switching and distribution

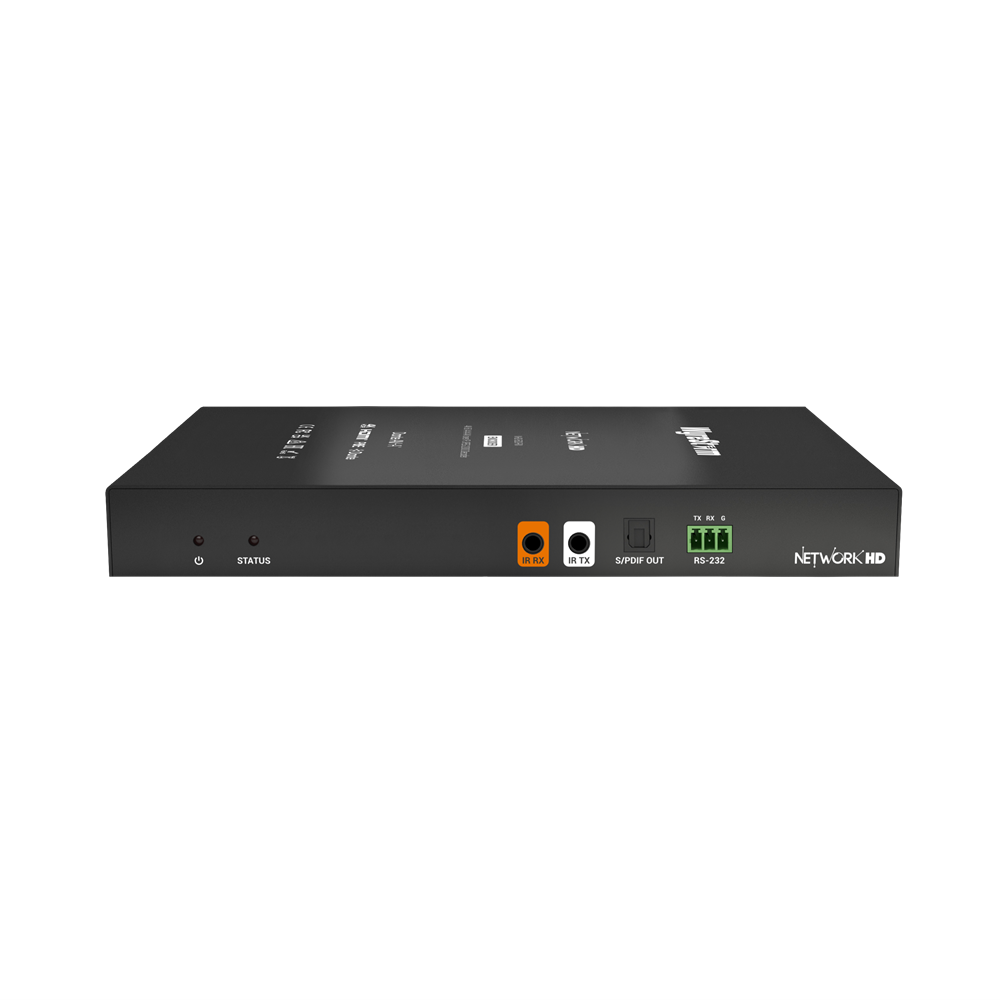

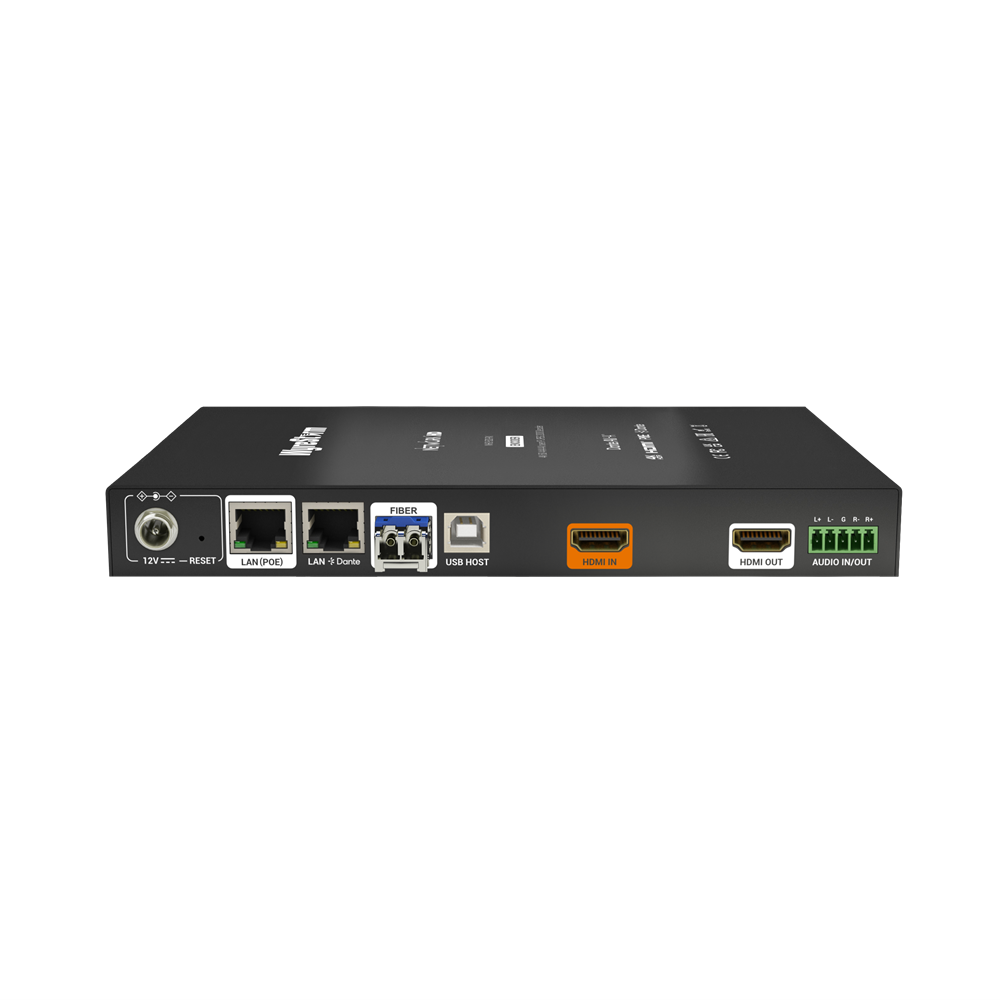

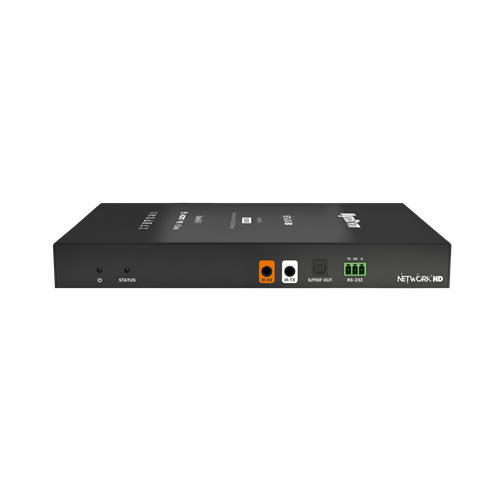

NHD-500-TX-V2 AVoIP Encoder 4K60 .JPEG 2000 .PoE. USB Host audio de-embed.ARC.Video walls

Product Code: WY-NHD500TXV2

Brand
Wyrestorm
RRP $2,389.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands WyreStorm
Series NetworkHD
  • Details
  • Downloads
  • Ordering
The NetworkHD 500s series is an HDMI 2.0 AV over IP solution. Capable of encoding up to 4K60 including Dolby Vision, HDR10 and HLG content. The 500 series comes loaded with a number of advanced features such as the flexibility of Ethernet or Fiber as a transport method. Ultra-low latency encoding and incredibly fast matrix switching speeds enhance the experience. A powerful routing engine allows audio, video, USB and control signals to be discretely sent to any endpoint. Create captivating video walls up to 16×16 in size and control them with the tap of a button in the amazing NetworkHD Touch control app.



Technical Specifications
AUDIO & VIDEO
Inputs
TX:
1 x HDMI 2.0b
1 x 3.5mm TRS Audio
RX:
1 x S/PDIF (Toslink)
Outputs
TX:
1 x HDMI 2.0b
1 x 5-pin Balanced Audio
1 x S/PDIF Digital
RX:
1 x HDMI 2.0b
1 x 5-Pin Balanced Audio
Video Resolution (Max)
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision/HDR/HLG
1920x1080p @60Hz 12bit
Audio Formats
Passthrough: 2ch PCM and up to DTS:X and Dolby Atmos
ARC: 2ch PCM and up to Dolby Digital+ and DTS 5.1
Dante/AES67: 2CH PCM
Supported Standards
DCI | RGB | USB
Maximum Pixel Clock
600Mhz
Output Video Encoding
JPEG 2000
Encoding Data Rate
Max 850Mbps
End-to-End Latency
4ms video latency (pass-through mode) | 1-2 video frames latency (scaler/VW mode)
COMMUNICATION & CONTROL
HDMI
HDMI 2.0 | HDCP 2.2 | CEC | EDID | ARC
LAN
1x 1GbE 8-Pin RJ45
1x 1Gb SFP:
(1000Base-SX: 550m using OM3 MMF)
(1000Base-LX: 5km using SMF)
(1000Base-LX10: 10km using SMF)
IR
1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable
RS-232
1x 3-Pin Phoenix Connector | 2-way | API Programmable
Security Protocols
AES 256 | SSH | HTTPS
USB
TX:
1 x USB 2.0 Type H
RX*:
2 x USB HID Type A
2 x USB 2.0 Type A (up to 200Mbps upstream)
POWER
Power Supply

In the Box
1x NHD-500-TX or NHD-500-RX
1 x IR Emitter
1x IR Receiver
1x Pair of Rack Brackets
2x Pair of Wall Brackets
1x 3-pin Terminal Block
1x 5-pin Terminal Block


12V DC 1A | 802.3at PoE+ Compliant
