Dynaudio Professional

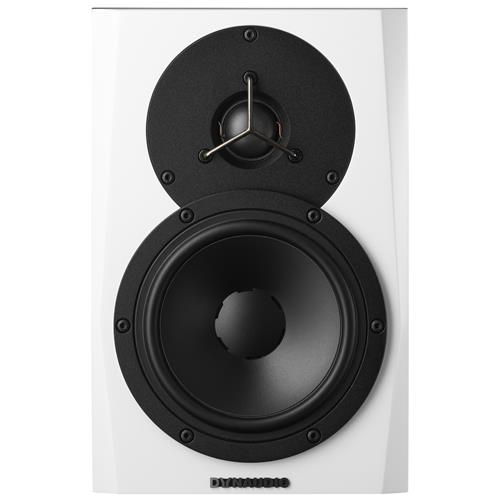

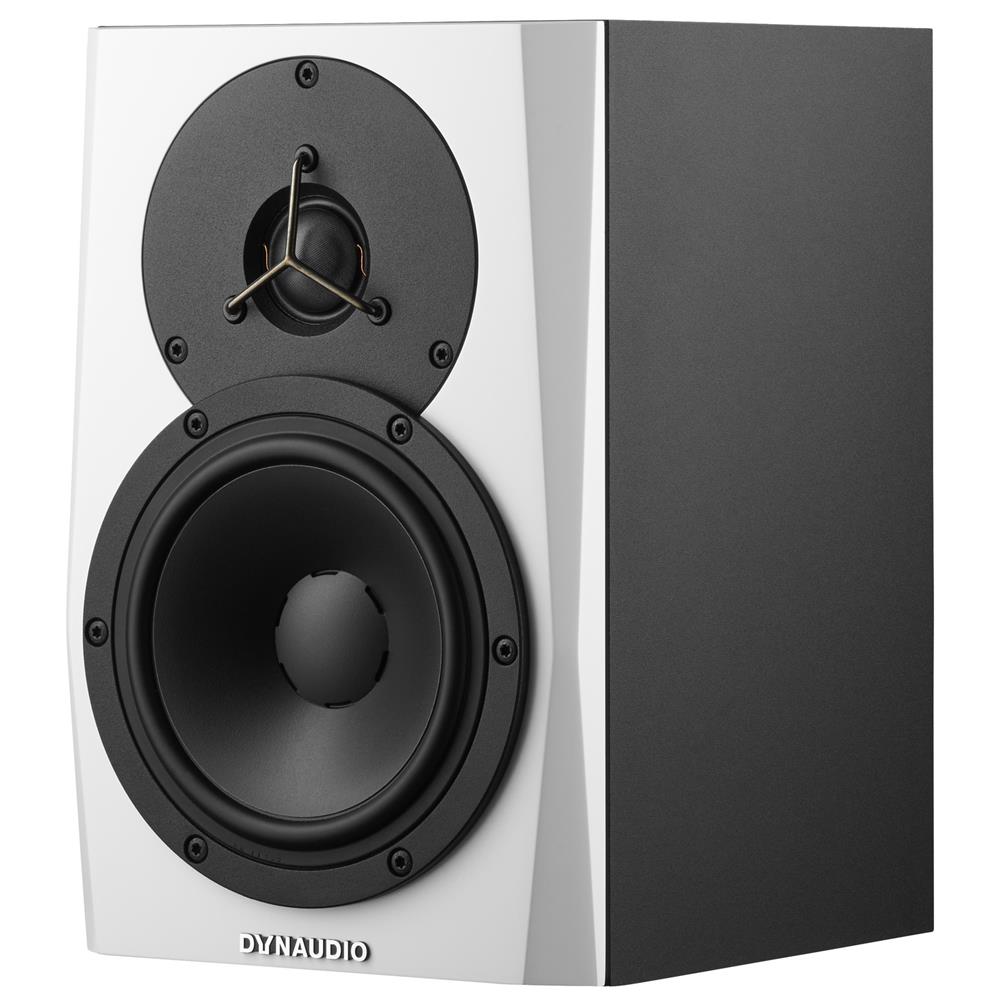

Dynaudio LYD 5 Nearfield Monitor with 5" Woofer, White (SINGLE)

Product Code: DY-LYD-5

Brand
Dynaudio
RRP $849.50


Unit of Measure
EACH



Unspecified
Technical Specifications
Brands Dynaudio Professional
Size 5"
Speaker Type Studio Monitor
  • Details
  • Downloads

LYD 5

The compact nearfield monitor redefined.

LYD 5, with its low-volume precision, is the ideal complement for any small studio set-up. It uses the same lightweight aluminium voice-coils in its handmade 5in MSP drive-units as our high-end hi-fi speakers, and pairs them with cutting-edge Class-D amplification as well as a 24-bit/96kHz signal path with advanced DSP.



LYD 5part 2
Max SPL (1m, pair): 106dB
Principle: Bass reflex
Crossover Frequency: 5.2kHz
Tweeter: 1inch Soft dome
Mid: N/A
Woofer: 5inches
Dimensions (W x H x D): 170 x 260 x 211mm
Weight: 5.7kg
Sensitivity (85dB @ 1m, free field):
+6dB: 50mV
0dB: 100mV
-6dB: 200mV
Specification sheet for LYD part 1
Amplifier:
Power (Tweeter/Woofer): HF 50W/LF 50W
Type: Class D
Power consumption standby: <0.5W
Power consumption max.: 100W
Input voltage: 90 - 264V AC, 50 - 60Hz
Inputs: XLR balanced/RCA unbalanced
Outputs: N/A
Cut-off frequencies -6dB limits:
Bass extension +10Hz: 70Hz - 21kHz
Bass extension 0Hz: 60Hz - 21kHz
Bass extension -10Hz: 50Hz - 21kHz
Free field frequency response: 62Hz - 19kHz
