Australian Monitor

Mixer Amp 1 x 120W with Re-Nameable Bluetooth

Product Code: AJ-HS120-V2

Brand
Australian Monitor
RRP $1,669.00


Unit of Measure
EACH


5 Year
Technical Specifications
Brands Australian Monitor
Channel count 1
  • Details
  • Downloads

HS120-v2

120W Mixer Amplifier
MP3 Player, Programable Bluetooth, Tones

The HS series is Australian Monitor’s next generation of Class D mixer amplifiers, delivering high quality audio reinforcement with the power you need – 60, 120 and 250 watt options, all in a one rack unit package.

Our new amplifiers are fully featured, offering 7 external and 2 internal audio input channels, each channel offering individual channel volume control, equalizer and gain control. An inbuilt user-customizable tone generator, MP3 player, Bluetooth module, 3.5mm jack and USB charger are included as standard in all models.

The HS series has been designed with all of the features and power to suit a vast range of installations, from the boardroom to the classroom, school hall to bar, restaurant or function space.

  • 120W Class D amplifier stage
  • 4 Ohm / 70V and 100V outputs
  • 9 audio input channels. 6 rear & 3.5mm line, Bluetooth and MP3
  • Individual gain/equalisation control on all external audio inputs
  • Priority mute control on channels 1-3, with level and time release control

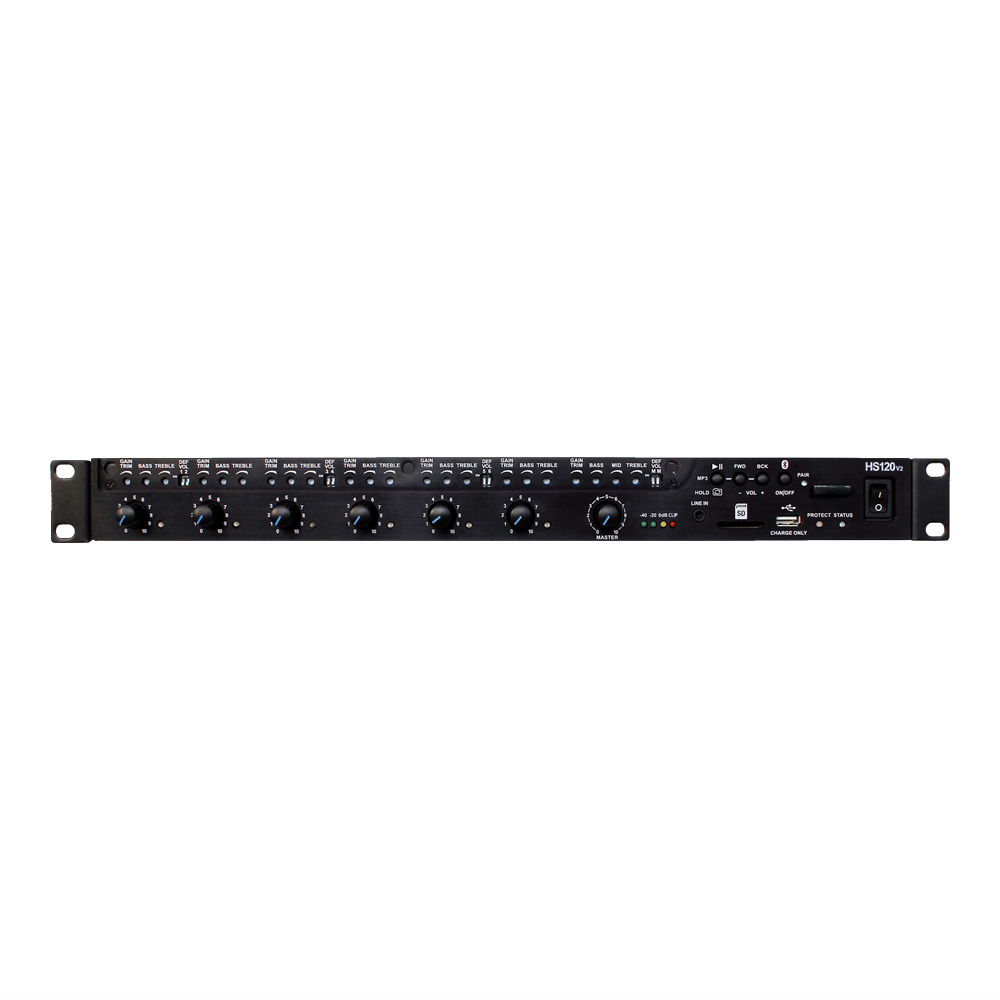

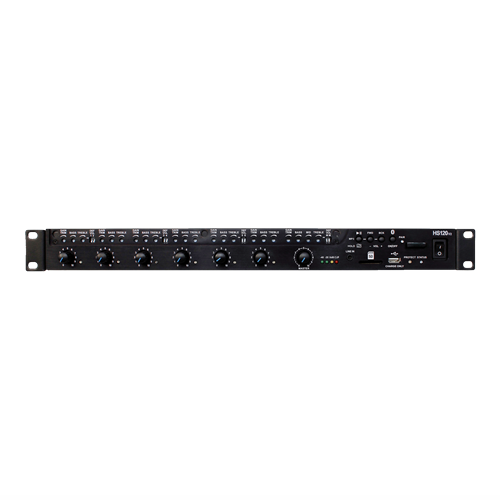

  • Magnetic cover for customer concealed eq and gain controls
  • Embedded tone generator for bell/alert/evac/chime/ intruder plus 11 fully customisable user tones
  • Embedded MP3 player via onboard SD card socket supporting random, sequenced and single playback
  • Programmable Bluetooth v5.1® receiver via SD Card
    • Broadcast name
    • PIN Number
    • Security Features
  • Tamper-proof channel attenuation by disabling external volume controls

Bluetooth Control Software available from here



Specifications

  • Output Power per Channel: 120W
  • Frequency Response: 100Hz - 16kHz
  • Output Mode: 4 Ohm-70V-100V
  • THD+N: < 0.3%
  • Input Channels: 6 MIC or Line - Bluetooth - MP3 and Aux
  • Signal to Noise Ratio: > 75dB
  • Input Voltage: 100-240Vac 50-60Hz
  • Input Sensitivity: 0dBu
  • Mounting: 1RU
  • Cooling: Convection
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 438mm x 306mm x 44mm Shipping Dimensions
    • (W x D x H) 516mm x 420mm x 106mm Shipping Dimensions
  • Net Weight: 5.9 Kg
  • Shipping Weight: 7.8 Kg
  • GTIN EAN: 9323383020313

Product Documents
