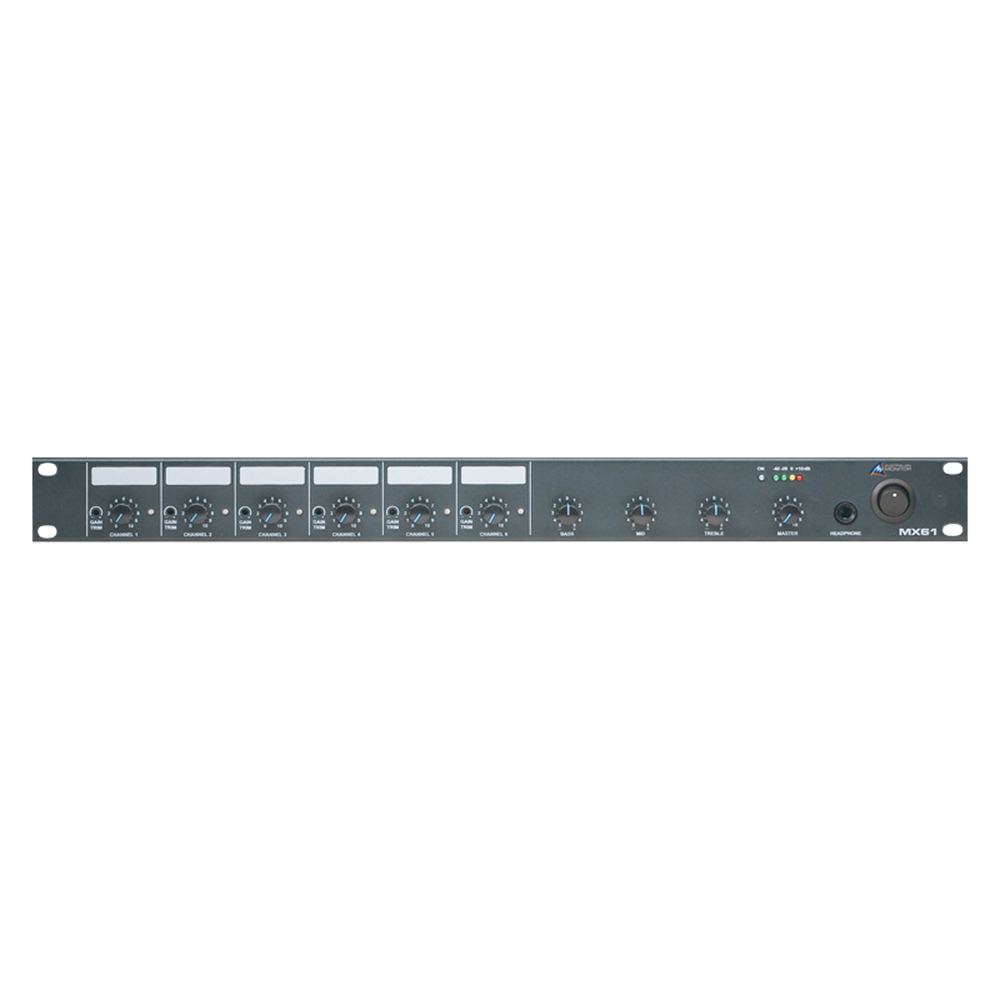

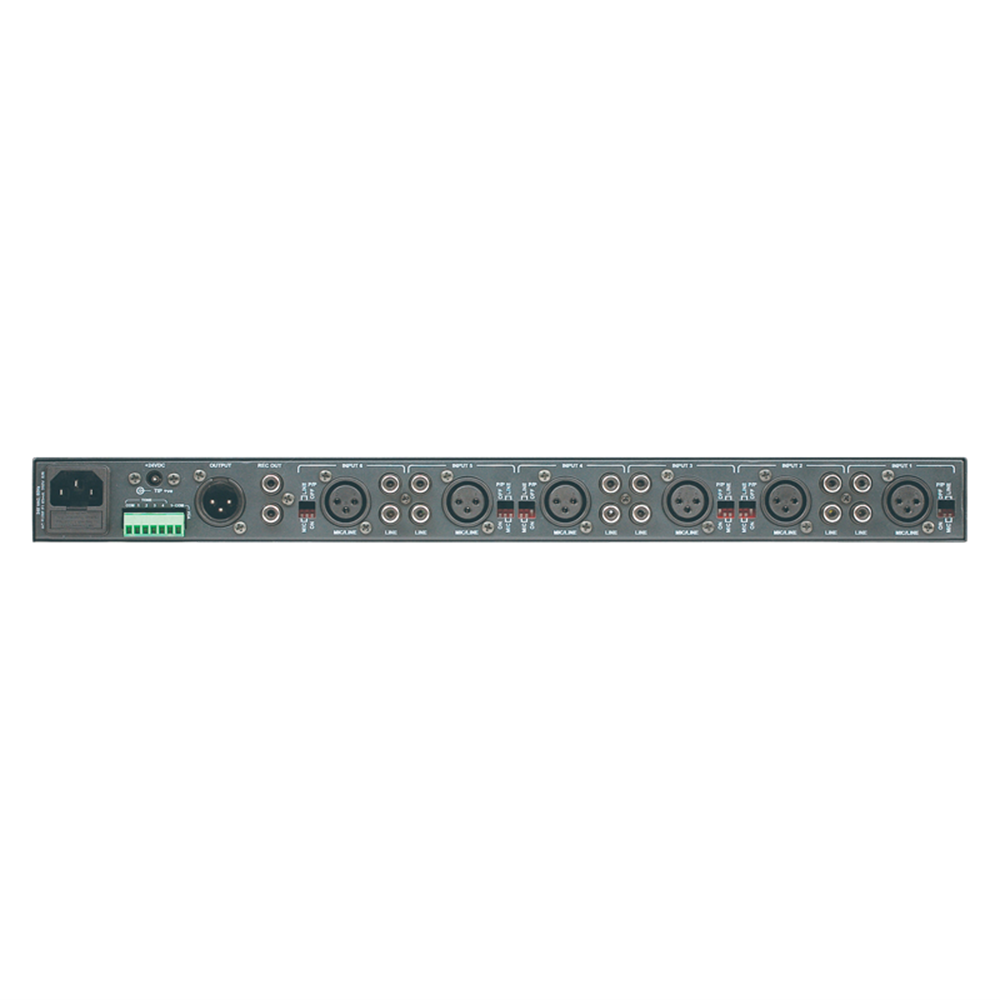

MX61

The MX61 Mixer brings a range of new features to the AMIS standard 1 RU mixer range. The MX61 mixer features the new Australian Monitor Standard (AMS) input section which has an XLR input switchable between microphone and line level, dual RCA line inputs, signal present LED indication, individually switchable phantom power, and +/- 15dB of gain trim available per input.

The MX61 also boast whisper quiet operation, four segment output level indicators and balanced line output, record output and headphone outputs. The MX61 has six AMS inputs to one output and operate via 110 or 220-240 VAC or 24VDC via an external 24 volt external power supply. Remote VCA volume control, tone generators and muting boards are also available for the MX61.

FEATURES

• XLR input switchable between microphone and line level
• 15dB +/- gain trim control per input
• Input 1 is switchable to be pre/post master
• 24VDC or mains power operation
• Optional remote VCA/Tone generator/muting boards available
• Whisper quiet operation
• Dual colour signal present indication LED per input.

SPECIFICATIONS

• Total Inputs: 6
• Frequency Response: 20Hz - 20kHz
• Input Channels: 6 MIC or Line
• THD+N: < 0.1%
• Output Channels: 1 Mono
• Signal to Noise Ratio: > 90dB
• Mounting: 1RU
• Input Sensitivity: MIC: 4.36mV / Line: 775mV / RCA: 200mV
• Warranty: 5 years
• Input Voltage: 230Vac 50Hz
• Product Dimensions:
  • (W x D x H) 482mm x 182mm x 44mm Shipping Dimensions
  • (W x D x H) 500mm x 267mm x 94mm
• Net Weight: 2.75 Kg
• Shipping Weight: 3.6 Kg
• GTIN EAN: 9323383011083
