Mechanical Arm Visualiser M90UHD Aver

Product Code: AF-M90UHD

Brand
Aver
$1,124.70 inc GST
RRP $2,009.00

Limited Stock
Increase value Decrease value
Unit of Measure
EACH



1 Year
Technical Specifications
Brands AVer
Native Resolution 4K
Product type Visualiser
  • Details
  • Downloads

AVerVision M90UHD


See a World in a Grain of Sand

Mechanical Arm Visualizer (Document Camera)
The M90UHD is a visualizer with an impressive lineup of features that include a 13-megapixel camera, 4K imaging, and a transcendent 322X total zoom capacity. These characteristics help teachers demonstrate all types of materials in an extraordinarily vivid way. What’s more, instinctive function buttons, an extendable arm, and AVerTouch software allow teachers of any subject to create fantastic collaborations in next to no time.

  • 14X Optical Zoom
  • 4K Ultra HD
  • 13 MP
  • 60fps
  • A3 Shooting Area
  • HDMI / VGA / USB Outputs

The Only 322X Total Zoom
Equipped with a 14X optical and 23X digital zoom, the M90UHD’s amazing 322X total zoom buries the competition. Every student—even the ones in the back row—can enjoy a wonderful learning journey without missing a single detail.

Splendid 4K Image Quality
Ultra HD output resolution and 13 megapixels display every subtle detail of topographical maps, chemical experiments, stereo models, and more. This clarity improves teaching quality and enhances student comprehension.

One-Push Recording, Capturing, and Playback
Intuitive recording and capturing enable users to record the complete teaching process with one button. Also, the playback function lets teachers review their lessons and examine student behavior to successfully prevent any accidents.

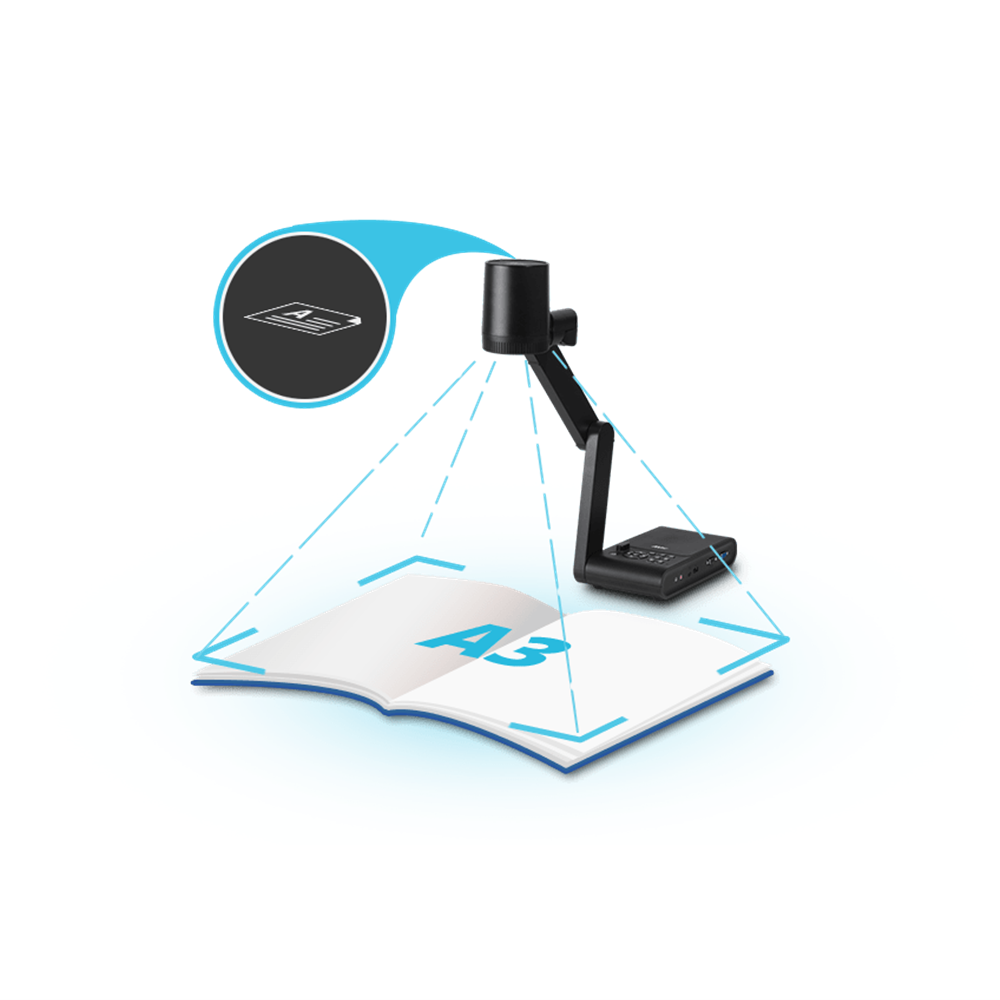

Massive A3 Shooting Area
A larger than A3-size shooting area captures items as big as building models. In addition, the position indicator on the camera head helps teachers always display materials accurately.

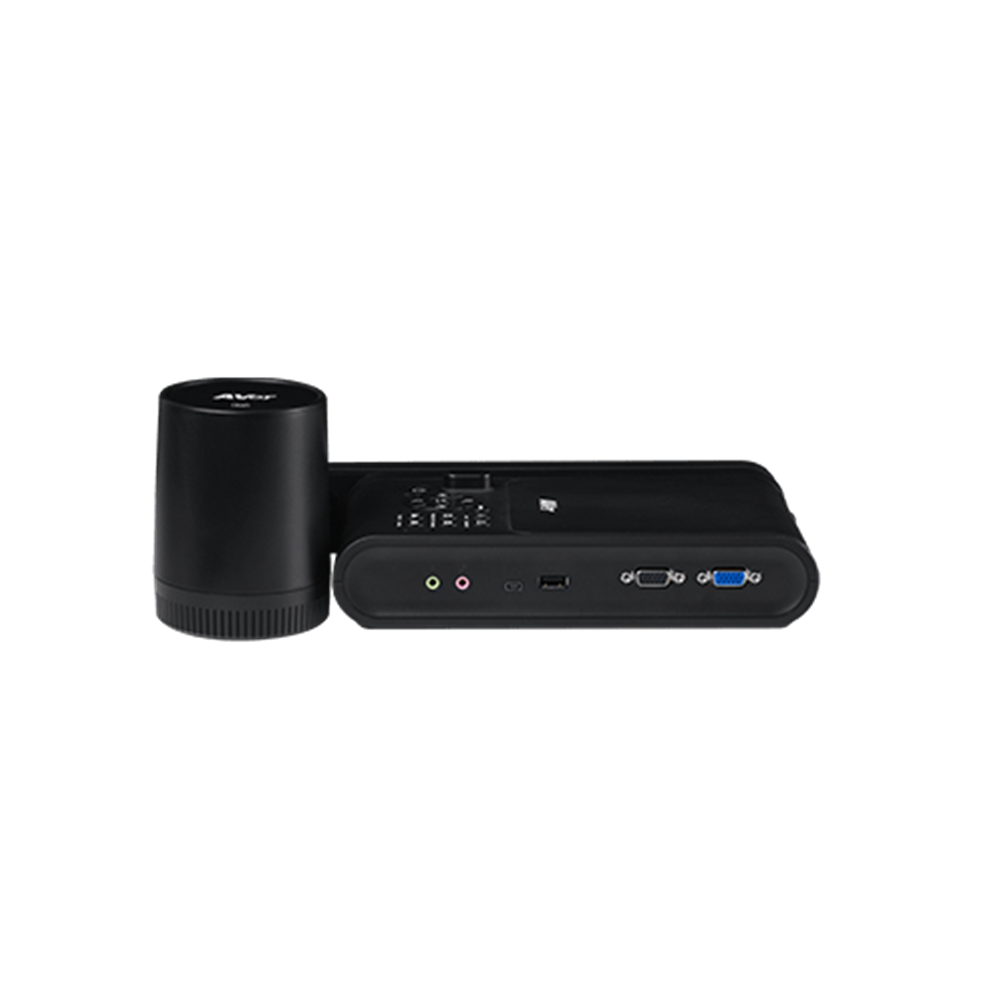

Multiple Ports Fit Any Device
With HDMI, VGA, and USB jacks available, users can connect the M90UHD to any display or computer and use the devices they’re most familiar with to teach.

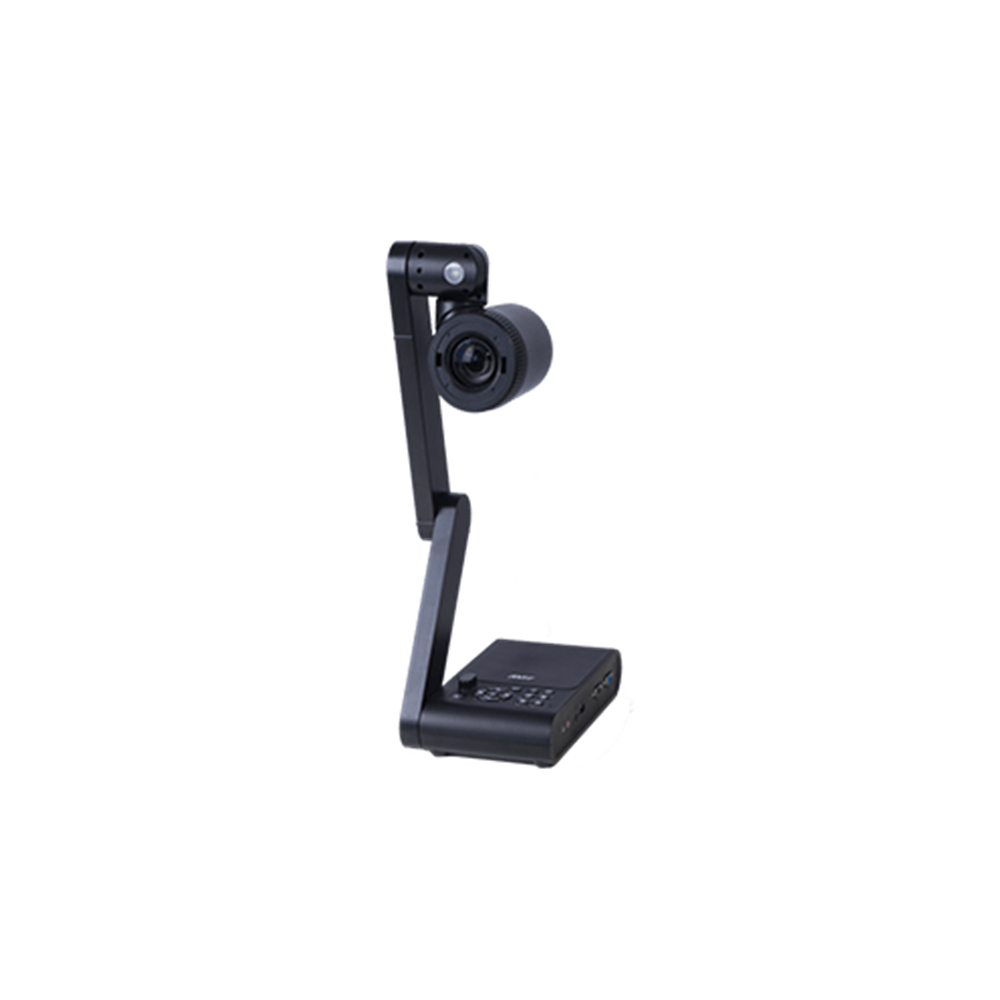

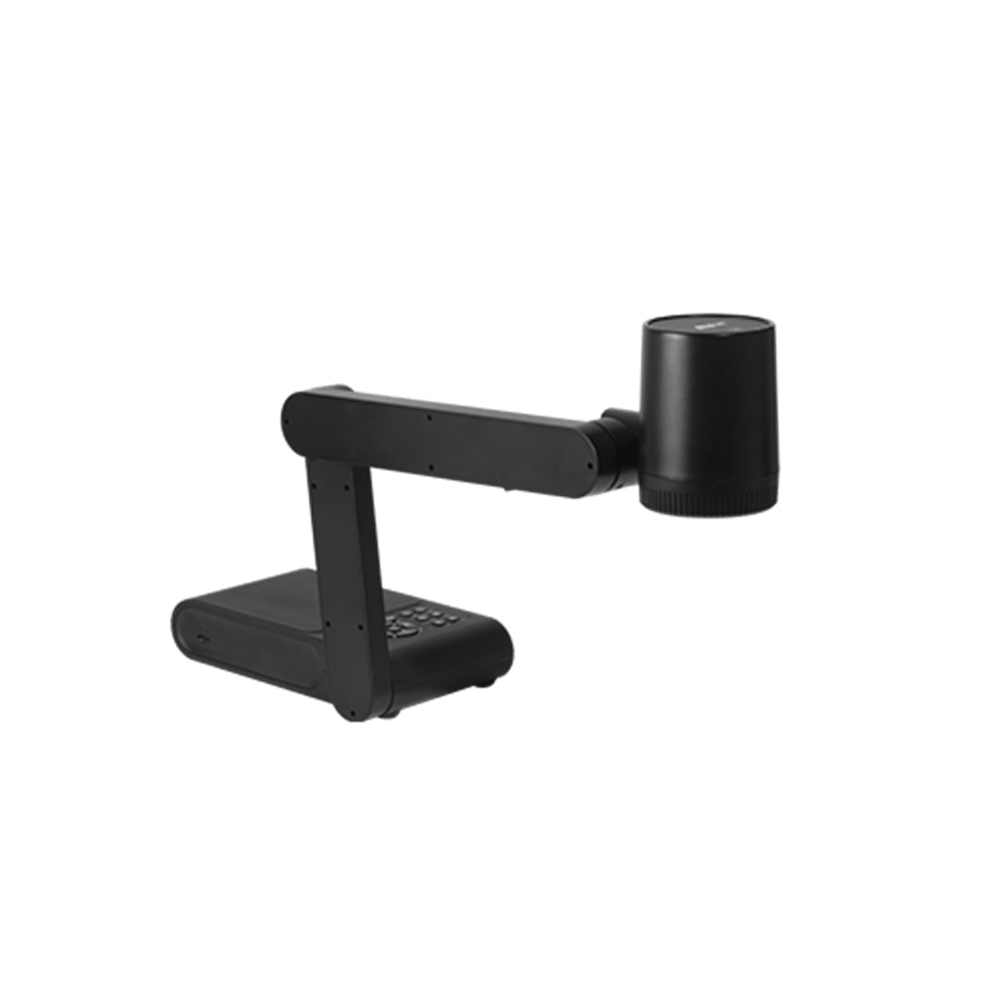

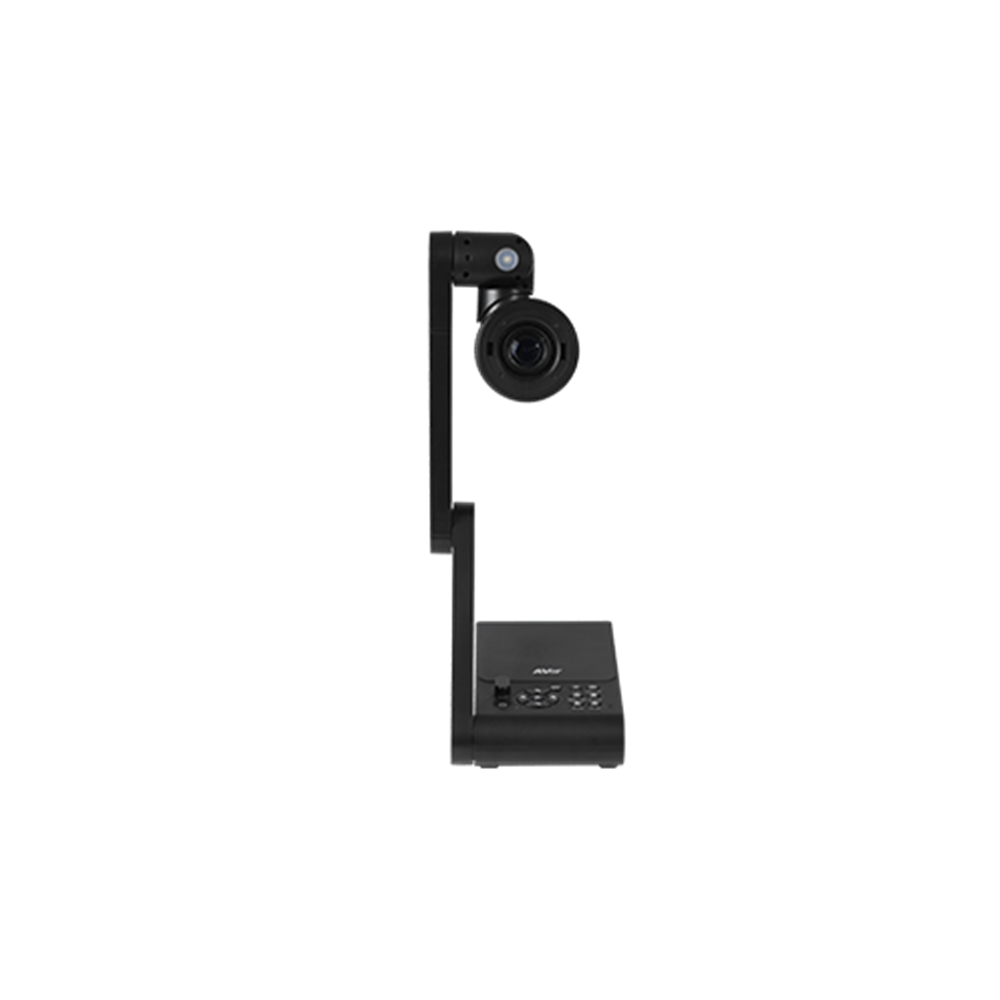

Super-Efficient Mechanical Arm
Featuring a low center of gravity and a fully adjustable, neatly foldable mechanical arm, the visualizer is easy to operate with only one hand and takes up minimal storage space.

Rapid Autofocus Banishes Blur
Some visualizers have a difficult time focusing on moving objects, but not this one. A single press of a button activates a premium-quality autofocus function that instantly clarifies the image and maintains students’ attention.

Embedded Light
The M90UHD offers an embedded light for adjusting luminance. Even in a dark presentation environment, teachers can easily provide a comfortable viewing experience.

AVerTouch Software
Take Your Ideas Anywhere
AVerTouch is ultra-powerful software designed exclusively for AVer visualizers. One touch connects your visualizer with mobile devices for content sharing, and you can sync to the cloud to automatically save annotated, captured, and recorded files. Teaching is incredibly fun when you use AVerTouch to engage with your students.


Specifications

  • Image Sensor: 1/3.06" CMOS
  • Total Pixels: 13 Megapixels
  • Output Resolution:
    • 4K
    • Full HD 1080p 60Hz
    • HD 720p 60Hz
  • TV Lines: 1,400
  • Zoom: 322X
  • Total Zoom: (14X Optical Zoom x 23X Digital Zoom)
  • Frame Rate: 60fps (max.)
  • Focus: Auto / Manual
  • Shooting Area: A3 (420 x 315 mm max.)
  • Image Rotation:
    • Electronic: 0°, 180°
    • Mechanical: 0°, 90°, 180° (Camera Head)
  • Internal Storage: 200 Pictures at XGA (1024 x 768)
  • External Storage: Micro SD Card & USB Thumb Drive (FAT32 / 32 GB)
  • One-touch Recording: Yes
  • One-touch Capturing: Yes
  • Image Effects:
    • Colour
    • B&W
    • Negative
  • Image Adjustments (White Balance / Exposure): Auto / Manual
  • Display Modes:
    • Normal
    • Motion
    • High Quality
    • Microscope
    • Macro
    • Infinity
  • Capture Modes:
    • Single
    • Continuous
  • User Profiles: Yes, up to 3
  • Timer: Yes
  • Flicker Filter Control: Yes
  • ePTZ: Yes
  • Light Source: Embedded LED Lamp
  • HDMI I/O:
    • 1 in
    • 1 out
  • VGA I/O:
    • 1 in
    • 1 out
  • USB 2.0 Ports:
    • Type-A x 1 (USB Thumb Drive)
    • Type Mini-B x 1 (PC)
  • Audio:
    • Line out (3.5 mm)
    • Mic in (3.5 mm)
    • Built-in Mic
    • HDMI
  • Security: Kensington Slot
  • RS-232 Port (Optional): Mini-DIN Jack (Available for M90UHD with RS-232 Only)
  • Dimensions (W x D x H):
    • Operating: 159.0 x 481.3 x 469.9 mm
    • Folded: 176.0 x 319.0 x 112.0 mm
  • Net Weight: 2.2 kg (4.85 lbs.)
  • Power Source:
    • DC 5V / 3A
    • AC 100 to 240V, 50 / 60Hz
  • Power Consumption:
    • 10 Watts (Lamp on)
    • 9 Watts (Lamp off)
  • Warranty:
    • Visualizer: 5 Years
    • Accessories: 1 Year
  • Software: AVerTouch
  • Windows®OS: Windows® 7, 10, 11
  • Mac® OS: Mac® 10.15, 11, 12
  • Chrome™ OS: Chrome™ OS 75 or Later (Available via the Sphere Lite App Only)
  • Optional Accessories:
    • Microscope Adaptor
    • Connecting Plate for Microscope Adaptor
    • Anti-Glare Sheet
    • Carrying Bag
    • RS-232 Cable
  • Package Contents
    • AVerVision M90UHD Unit
    • USB Cable
    • VGA Cable
    • Power Cable
    • Power Adapter (5V / 3A)
    • Remote Control with AAA Batteries x 2
    • Warranty Card
    • Quick Start Guide
    • CD1
