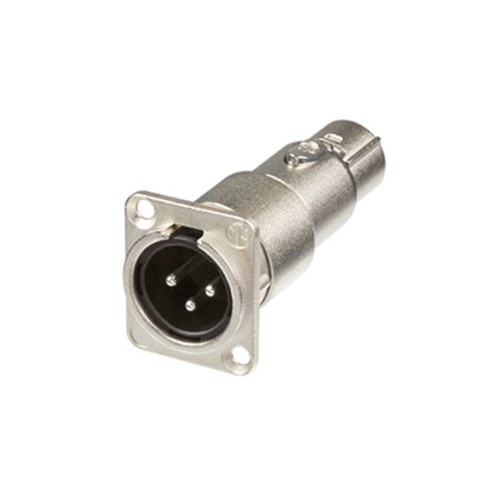

MALE TO FEMALE D-FLANGE CHASSIS MOUNT CONNECTOR

Product Code: NU-NA3MDF

Brand
Neutrik
RRP $30.00


Unit of Measure
EACH


1 Year
Technical Specifications
Brands Neutrik
Adapter Type XLR
  • Details
  • Downloads
  • Ordering

NA3MDF


XLR male-female feedthrough adapter for panel mount



Product


Title

  • NA3MDF

Connection Type

  • Adapter

Electrical


Capacitance between contacts

  • ≤ 4 pF

Contact resistance

  • ≤ 5 mΩ

Dielectric strength

  • 1,5 kVdc

Insulation resistance

  • > 2 GΩ (initial)

Rated current per contact

  • 16 A

Rated voltage

  • < 50 V

Mechanical


Insertion force

  • ≤ 20 N

Withdrawal force

  • ≤ 20 N

Lifetime

  • > 1000 mating cycles

Wiresize

  • max. 2.5 mm²

Wiresize

  • max. 14 AWG

Wiring

  • Solder contacts

Locking device

  • Latch lock

Chassis shape

  • D

Material


Contact plating

  • 2 µm Ag over 2 µm Ni

Insert

  • Polyamide (PA 6.6 30 % GR)

Locking element

  • Steel Ck67

Shell

  • Zinc diecast (ZnAl4Cu1)

Shell plating

  • Nickel

Environmental


Flammability

  • UL 94 HB

Standard compliance

  • IEC 61076-2-103

Protection class

  • IP 40

Solderability

  • Complies with IEC 68-2-20

Temperature range

  • -30 °C to +80 °C
