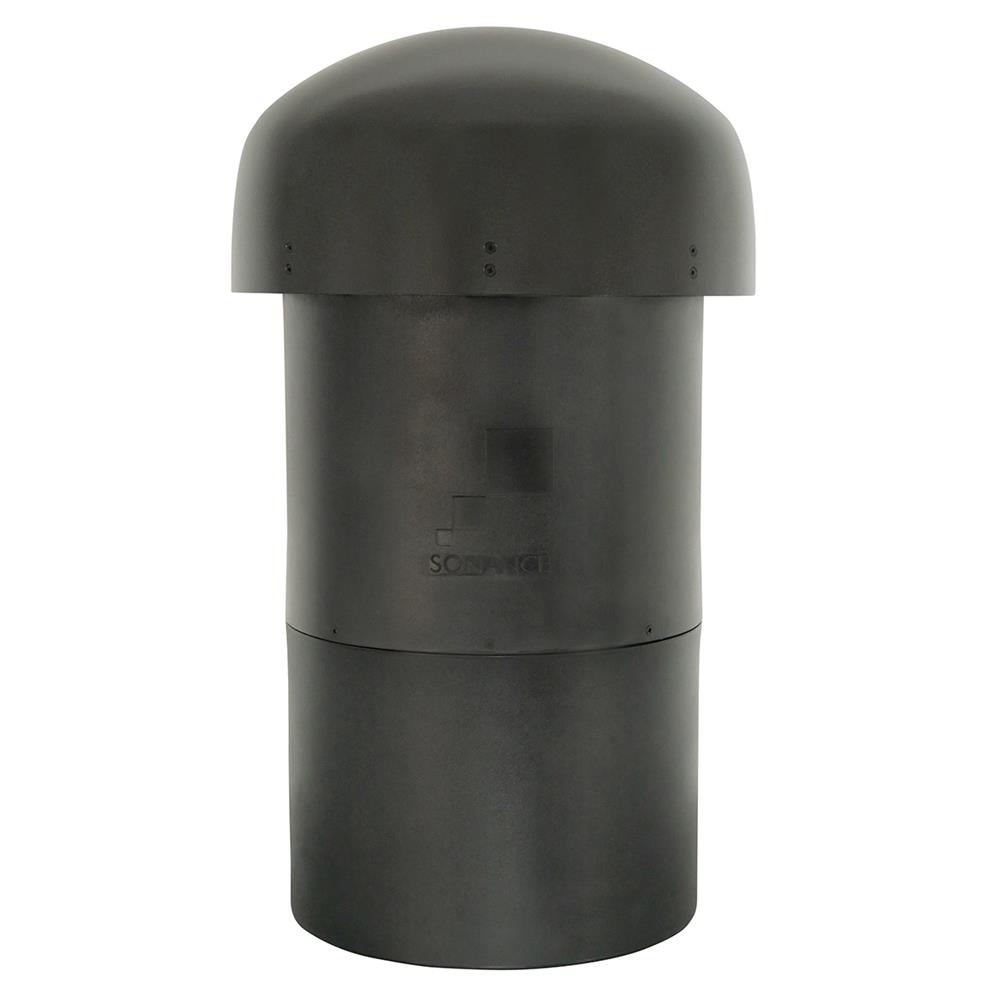

LS12T Subwoofer

The LS12T SUB is the first generation of Sonance Landscape Series to include a wide bandwidth Sonance Laminated Core Transformer with an adjustable tap, making it flexible and powerful for any outdoor landscape application. The SLS Sat and Sub system provides a superior landscape aesthetic with its discreet design and finish. The system blends into the terrain along walkways, tucked into planter beds, mounted up in the trees, and anywhere you want your audio to reach.

The all new Sonance SLS speakers and subwoofers are redesigned and engineered from the ground up for ultimate performance in any outdoor space, paving the way for premium audio in shared outdoor environments. Designed using performance features borrowed from both Sonance Professional Series and Visual Performance Extreme, Sonance Landscape Series boasts a completely immersive and performance-driven outdoor experience

Key Features

Aesthetics

• Designed to blend in with landscape surroundings
• Color-molded composite construction won’t chip, peel or fade over time

Performance

• Part of a scalable system that delivers perfectly even coverage and unequalled sonic performance throughout any space
• Polypropylene cone woofer with a Santoprene rubber surround for high excursion Sonance Laminated Core Transformer with an adjustable Tap for 300W, 150W, 75W, (38W 70V), and 8 ohm installations
• Laminar Flow Port reduces distortion and improves frequency response

Installation

• Vertically buried for easy installation

Environmental

• UV-resistant, low density polyethylene enclosure
• Robust construction to handle extreme conditions
• IP66 and MIL STD 810 rated

Woofer	12” (305mm) polypropylene cone with a SantopreneTM rubber surround
Frequency Response	22Hz – 100Hz ±3dB
Sensitivity	91dB @ 1m, 2.83 V (8-ohms)
Recommended Amplifier Power (8 Ohms)	50W min, 375W max
Transformer Taps	70V: 300W, 150W, 75W; 100V: 300W, 150W; 8 Ohms
Crossover Frequency	100Hz
Enclosure Material	Low density polyethylene (LDPE)
Finish	Dark brown textured canopy
Overall Dimensions	16.97" x 29.13" (431mm x 740mm)
Woofer Enclosure Dims (H x Dia.)	20.70" x 13.78" (526mm x 350mm)
Canopy Dims (H x Dia.)	8.43” x 16.97" (214mm x 431mm)
Shipping Weight	70.55 lbs (32.0kg)
